Product Details:
|
| Name: | Double Row Full Complement Cylindrical Roller Bearing | Bearing Material: | Chrome Steel 100Cr6 |
|---|---|---|---|
| Bore Type: | Cylindrical( Straight Bore) | Number Of Rows: | 2 (Double Row) |
| Cage: | Without | Coating: | Without |
| Locating Feature, Bearing Outer Ring: | Snap Ring Groove | Relubrication Feature: | With |
| Number Of Flanges, Inner Ring: | 2 | Number Of Flanges, Outer Ring: | 1 |
| Sealing: | Contact Seal On Both Sides | Radial Internal Clearance: | CN Or Customized |
| High Light: | NNF 5024 ADA-2LSV Precision Roller Bearing,chrome double row full complement cylindrical roller bearings,steel double row full complement cylindrical roller bearings |
||

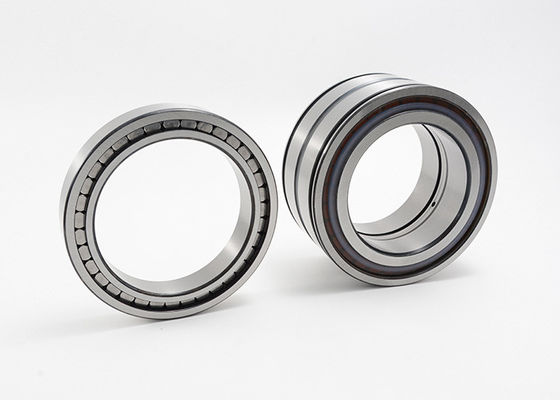

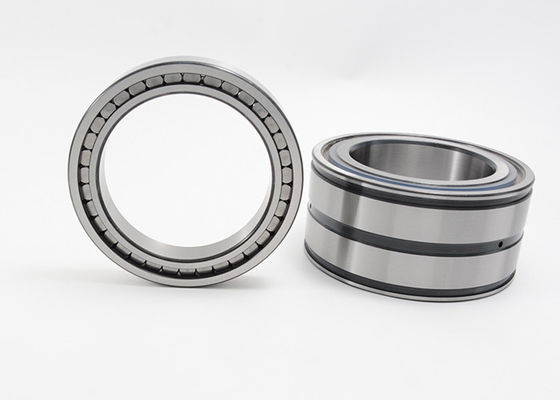

Double Row Full Complement Cylindrical Roller Bearing NNF 5024 ADA-2LSV
Double row full complement cylindrical roller bearings incorporate a maximum number of rollers and are therefore suitable for very heavy radial loads in combination with moderate speeds. Having three flanges on the two-piece inner ring and one central flange on the outer ring, NNF design bearings can locate the shaft axially in both directions. Two snap ring grooves in the outer ring simplify mounting and save space axially.
Features:
Applications:
Double Row Full Complement Cylindrical Roller Bearing NNF design Specification Details:
| Bearing Code | Dimensions | Mass | Basic Load Rating | Limiting | |||||||||
| speed | |||||||||||||
| d | D | B | C | rsmin | d1 | D1 | C1 | E | Cr | Cor | |||
| mm | kg | KN | rpm | ||||||||||
| NNF 5024 ADA-2LSV | 120 | 180 | 80 | 79 | 0.6 | 141 | 176 | 71.2 | 164 | 6.9 | 400 | 750 | 480 |
| NNC4924V | 120 | 165 | 45 | — | 1.1 | 139 | — | — | 153.55 | 2.95 | 242 | 480 | 1700 |
| NNF 5026 ADA-2LSV | 130 | 200 | 95 | 94 | 0.6 | 155 | 196 | 83.2 | 183.5 | 10.5 | 710 | 1220 | 450 |
| NNC4926V | 130 | 180 | 50 | — | 1.5 | 149 | — | — | 165.4 | 3.95 | 255 | 530 | 1600 |
| NNF 5028 ADA-2LSV | 140 | 210 | 95 | 94 | 0.6 | 167 | 206 | 83.2 | 195.5 | 11 | 600 | 1120 | 400 |
| NNC4928V | 140 | 190 | 50 | — | 1.5 | 160 | — | — | 175.9 | 4.2 | 265 | 570 | 1400 |
| NNF 5030 ADA-2LSV | 150 | 225 | 100 | 99 | 0.6 | 177 | 221 | 87.2 | 209 | 13.5 | 695 | 1290 | 380 |
| NNC4930V | 150 | 210 | 60 | — | 2 | 171 | — | — | 192.77 | 6.65 | 380 | 850 | 1300 |
| NNF 5032 ADA-2LSV | 160 | 240 | 109 | 108 | 0.6 | 191 | 236 | 95.2 | 222.55 | 16.5 | 720 | 1400 | 360 |
| NNC4932V | 160 | 220 | 60 | — | 2 | 184 | — | — | 206.16 | 7 | 446 | 915 | 1300 |
| NNF 5034 ADA-2LSV | 170 | 260 | 122 | 121 | 0.6 | 203 | 254 | 107.2 | 239 | 22.5 | 720 | 1400 | 360 |
| NNC4934V | 170 | 230 | 60 | — | 2 | 193 | — | — | 215.08 | 7.35 | 457 | 950 | 1200 |
| NNF 5036 ADA-2LSV | 180 | 280 | 136 | 135 | 0.6 | 220 | 274 | 118.2 | 259 | 30 | 1340 | 2500 | 300 |
| NNC4936V | 180 | 250 | 69 | — | 2 | 205 | — | — | 230.5 | 10.8 | 594 | 1220 | 1100 |
| NNF 5038 ADA-2LSV | 190 | 290 | 136 | 135 | 0.6 | 228 | 284 | 118.2 | 267.25 | 31.5 | 1370 | 2600 | 300 |
| NNC4938V | 190 | 260 | 69 | — | 2 | 215 | — | — | 240.7 | 11.2 | 605 | 1290 | 1100 |
| NNF 5040 ADA-2LSV | 200 | 310 | 150 | 149 | 0.6 | 245 | 304 | 128.2 | 284 | 42 | 1560 | 3050 | 280 |
| NNC4940V | 200 | 280 | 80 | — | 2.1 | 230 | — | — | 259.34 | 15.8 | 704 | 1500 | 1000 |
| NNF 5044 ADA-2LSV | 220 | 340 | 160 | 159 | 1 | 264 | 334 | 138.2 | 308.5 | 53.5 | 1610 | 3100 | 360 |
| NNC4944V | 220 | 300 | 80 | — | 2.1 | 248 | — | — | 276.52 | 17.2 | 737 | 1600 | 950 |
| NNF 5048 ADA-2LSV | 240 | 360 | 160 | 159 | 1 | 283 | 354 | 138.2 | 327.5 | 57.5 | 1680 | 3350 | 340 |
| NNC4948V | 240 | 320 | 80 | — | 2.1 | 270 | — | — | 299.46 | 18.5 | 781 | 1760 | 850 |
