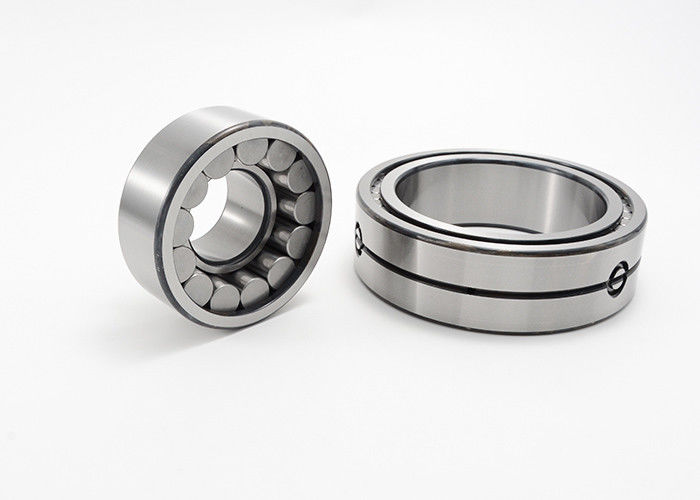

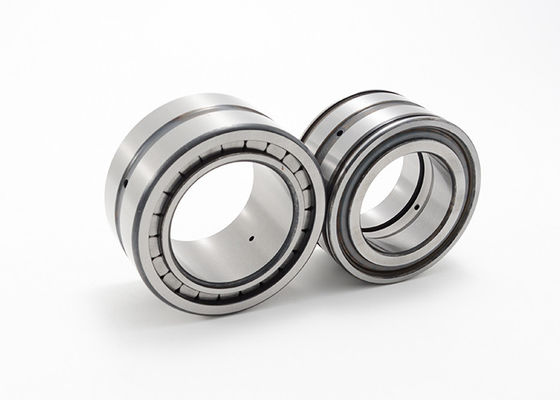

Super Precision Roller Bearing NN3022KTN1 Double Row Cylindrical W33 Bearing

Super Precision Roller Bearing NN3022KTN1 Double Row Cylindrical W33 Bearing
Super Precision Roller Bearing NN3022KTN1 Double Row Cylindrical W33 Bearing Super Precision Roller Bearing NN3022KTN1 Double Row Cylindrical W33 Bearing

Large Image :  Super Precision Roller Bearing NN3022KTN1 Double Row Cylindrical W33 Bearing

Product Details:
Place of Origin: China
Brand Name: MOUETTE
Certification: ISO/TS 16949:2009, ISO 9001:2008
Model Number: NN3021, NN3022, NN3022KTN1SP/W33, NN3024, NN3026, NN3028, NN3030, NN3032, NN3034, NN3036, NN3038, NN3040, NN3044, NN3048, NN3052, NN3056
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: USD10 per Piece (Inquired)
Packaging Details: Plastic bags, Cartons and European Standard Plywood Case.
Delivery Time: 3-45 working days.(Huge Quantity Stocks Available))
Payment Terms: L/C, T/T, D/A, Western Union, Paypal
Supply Ability: 500,000 Pieces per Month.
Contact Now

Super Precision Roller Bearing NN3022KTN1 Double Row Cylindrical W33 Bearing

Description
Name: Super Precision Cylindrical Roller Bearing Bore Type: Tapered
Bearing Material: Hardened Alloy Steel Cage Material: Machined Brass / Plastic Molded Cage
Precision: DIN P2, SP, P4, P5, P6, P0 Sealing: No Seal
Number Of Rows: 2 Radial Internal Clearance: C1
High Light:

super Precision Roller Bearing

,

double row w33 bearing

,

Cylindrical w33 bearing

Super Precision Cylindrical Roller Bearing Double Row NN3022KTN1 W33



Super-precision double row cylindrical roller bearings in the NN 30 series provide a unique balance between load carrying capacity, rigidity and speed. Having three flanges on the inner ring and no flanges on the outer ring, the bearings can accommodate axial displacement in both directions. The separable design simplifies mounting and dismounting, particularly when load conditions require both rings to have an interference fit. The tapered bore enables accurate adjustment of clearance or preload during mounting.



Suffix description:

  • K  - Tapered Bore, Taper 1:12
  • TN1 - Injection Moulded Cage Of Glass Fibre Reinforced Polyamide 66
  • SP - Special Precision Class For Machine Tool Bearings: Dimensional Accuracy Approximately To P5, Running Accuracy Approximately To P4



Tolerance class:

Standard Precision Grade
GB/307-94 B C D E G
ISO CLASS 2 CLASS 4 CLASS 5 CLASS 6 NORMAL CLASS
DIN P2 P4 P5 P6 P0
ANSI ABEC9 ABEC5 ABEC5 ABEC3 ABEC1
JIS JIS2 JIS4 JIS5 JIS6 JIS0





Super Precision Cylindrical Roller Bearing Double Row NN Series Specifications:

Part Number Dimension Basic Load Rating (KN) Limiting Speed Mass
(mm) (rpm) (kg)
d D B rsmin Fw Ew Cr Cor Grease Oil 　
NN3021 105 160 41 2 - 146 198 320 3800 4500 2.88
NN3021/W33 105 160 41 2 - 146 198 320 3800 4500 2.88
NN3021K 105 160 41 2 - 146 198 320 3800 4500 2.88
NN3021K/W33 105 160 41 2 - 146 198 320 3800 4500 2.88
NN3021TN1 105 160 41 2 - 146 198 320 3800 4500 2.7
NN3021TN1/W33 105 160 41 2 - 146 198 320 3800 4500 2.7
NN3021KTN1 105 160 41 2 - 146 198 320 3800 4500 2.7
NN3021KTN1/W33 105 160 41 2 - 146 198 320 3800 4500 2.7
　 　 　 　 　 　 　 　 　 　 　 　
NN3022 110 170 45 2 - 155 229 375 3400 4300 3.71
NN3022/W33 110 170 45 2 - 155 229 375 3400 4300 3.71
NN3022K 110 170 45 2 - 155 229 375 3400 4300 3.71
NN3022K/W33 110 170 45 2 - 155 229 375 3400 4300 3.71
NN3022TN1 110 170 45 2 - 155 229 375 3400 4300 3.4
NN3022TN1/W33 110 170 45 2 - 155 229 375 3400 4300 3.4
NN3022KTN1 110 170 45 2 - 155 229 375 3400 4300 3.4
NN3022KTN1/W33 110 170 45 2 - 155 229 375 3400 4300 3.4
　 　 　 　 　 　 　 　 　 　 　 　
NN3024 120 180 46 2 - 165 239 405 3200 3800 4.04
NN3024/W33 120 180 46 2 - 165 239 405 3200 3800 4.04
NN3024K 120 180 46 2 - 165 239 405 3200 3800 4.04
NN3024K/W33 120 180 46 2 - 165 239 405 3200 3800 4.04
NN3024TN1 120 180 46 2 - 165 239 405 3200 3800 3.7
NN3024TN1/W33 120 180 46 2 - 165 239 405 3200 3800 3.7
NN3024KTN1 120 180 46 2 - 165 239 405 3200 3800 3.7
NN3024KTN1/W33 120 180 46 2 - 165 239 405 3200 3800 3.7
　 　 　 　 　 　 　 　 　 　 　 　
NN3026 130 200 52 2 - 182 284 475 3000 3600 5.88
NN3026/W33 130 200 52 2 - 182 284 475 3000 3600 5.88
NN3026K 130 200 52 2 - 182 284 475 3000 3600 5.88
NN3026K/W33 130 200 52 2 - 182 284 475 3000 3600 5.88
NN3026TN1 130 200 52 2 - 182 284 475 3000 3600 5.55
NN3026TN1/W33 130 200 52 2 - 182 284 475 3000 3600 5.55
NN3026KTN1 130 200 52 2 - 182 284 475 3000 3600 5.55
NN3026KTN1/W33 130 200 52 2 - 182 284 475 3000 3600 5.55
　 　 　 　 　 　 　 　 　 　 　 　
NN3028K 140 210 53 2 - 192 298 515 2800 3400 6.34
NN3028K/W33 140 210 53 2 - 192 298 515 2800 3400 6.34
NN3028K 140 210 53 2 - 192 298 515 2800 3400 6.34
NN3028K/W33 140 210 53 2 - 192 298 515 2800 3400 6.34
　 　 　 　 　 　 　 　 　 　 　 　
NN3030K 150 225 56 2.1 - 206 335 585 2600 3000 7.77
NN3030K/W33 150 225 56 2.1 - 206 335 585 2600 3000 7.77
NN3030K 150 225 56 2.1 - 206 335 585 2600 3000 7.77
NN3030K/W33 150 225 56 2.1 - 206 335 585 2600 3000 7.77
　 　 　 　 　 　 　 　 　 　 　 　
NN3032 160 240 60 2.1 - 219 375 660 2400 2800 9.41
NN3032/W33 160 240 60 2.1 - 219 375 660 2400 2800 9.41
NN3032K 160 240 60 2.1 - 219 375 660 2400 2800 9.41
NN3032K/W33 160 240 60 2.1 - 219 375 660 2400 2800 9.41
NN3032TN1 160 240 60 2.1 - 219 375 660 2400 2800 9.1
NN3032TN1/W33 160 240 60 2.1 - 219 375 660 2400 2800 9.1
NN3032KTN1 160 240 60 2.1 - 219 375 660 2400 2800 9.1
NN3032KTN1/W33 160 240 60 2.1 - 219 375 660 2400 2800 9.1
　 　 　 　 　 　 　 　 　 　 　 　
NN3034K 170 260 67 2.1 - 236 450 805 2200 2600 12.8
NN3034K/W33 170 260 67 2.1 - 236 450 805 2200 2600 12.8
NN3034K 170 260 67 2.1 - 236 450 805 2200 2600 12.8
NN3034K/W33 170 260 67 2.1 - 236 450 805 2200 2600 12.8
　 　 　 　 　 　 　 　 　 　 　 　
NN3036K 180 280 74 2.1 - 255 565 995 2000 2400 16.8
NN3036K/W33 180 280 74 2.1 - 255 565 995 2000 2400 16.8
NN3036K 180 280 74 2.1 - 255 565 995 2000 2400 16.8
NN3036K/W33 180 280 74 2.1 - 255 565 995 2000 2400 16.8
　 　 　 　 　 　 　 　 　 　 　 　
NN3038K 190 290 75 2.1 - 265 595 1080 2000 2400 17.8
NN3038K/W33 190 290 75 2.1 - 265 595 1080 2000 2400 17.8
NN3038K 190 290 75 2.1 - 265 595 1080 2000 2400 17.8
NN3038K/W33 190 290 75 2.1 - 265 595 1080 2000 2400 17.8
　 　 　 　 　 　 　 　 　 　 　 　
NN4940 K/W33 200 280 80 2.1 - 257 484 960 1900 2400 14
NN4940 200 280 80 2.1 - 257 570 1220 1900 2400 14
NN3940 200 280 60 2.1 - 257 420 815 1950 2450 11.4
NN3040 200 310 82 2.1 - 282 655 1170 1800 2200 22.7
NN3040/W33 200 310 82 2.1 - 282 655 1170 1800 2200 22.7
NN3040K 200 310 82 2.1 - 282 655 1170 1800 2200 22.7
NN3040 K/W33 200 310 82 2.1 - 282 655 1170 1800 2200 22.7
NN4040 200 310 109 2.1 - 282 890 1730 1750 2150 30.4
　 　 　 　 　 　 　 　 　 　 　 　
NN4944 220 300 80 2.1 - 275 600 1330 1700 2200 15.2
NN3944 220 300 60 2.1 - 275 440 895 1750 2250 12.3
NN3044 220 340 90 3 - 310 815 1480 1700 2000 29.6
NN3044/W33 220 340 90 3 - 310 815 1480 1700 2000 29.6
NN3044K 220 340 90 3 - 310 815 1480 1700 2000 29.6
NN3044 K/W33 220 340 90 3 - 310 815 1480 1700 2000 29.6
NN4044 220 340 118 3 - 310 1190 2400 1650 1950 39.8
NN3144 220 370 120 4 - 331.5 1050 1810 1600 1900 51.9
　 　 　 　 　 　 　 　 　 　 　 　
NN4848 240 300 60 1.1 - 283 405 1030 1700 2100 9.77
NN3948 240 320 60 2.1 - 223 460 975 1550 1950 12.2
NN3048 240 360 92 3 - 330 855 1600 1500 1800 32.7
NN3048/W33 240 360 92 3 - 330 855 1600 1500 1800 32.7
NN3048K 240 360 92 3 - 330 855 1600 1500 1800 32.7
NN3048K/W33 240 360 92 3 - 330 855 1600 1500 1800 32.7
NN4048 240 360 118 3 - 330 1240 2600 1450 1750 39.3
NN3148 240 400 128 4 - 362 1170 2040 1400 1700 64.2
　 　 　 　 　 　 　 　 　 　 　 　
NN3952 260 360 75 2.1 - 335 670 1380 1300 1700 21.4
NN4952K 260 360 100 2.1 - 335 711 1540 1400 1800 29.2
NN4952 260 360 100 2.1 - 335 935 2100 1400 1800 29.2
NN3052 260 400 104 4 - 364 1030 1920 1400 1700 47.7
NN3052/W33 260 400 104 4 - 364 1030 1920 1400 1700 47.7
NN3052K 260 400 104 4 - 364 1030 1920 1400 1700 47.7
NN3052K/W33 260 400 104 4 - 364 1030 1920 1400 1700 47.7
NN4052 260 400 140 4 - 364 1570 3000 1150 1500 47.4
NN3152 260 400 144 4 - 394 1480 2660 1100 1400 89.1
　 　 　 　 　 　 　 　 　 　 　 　
NN4856 280 350 69 1.1 - 329 445 1160 1400 1800 15.3
NN3956 280 380 75 2.1 - 355 695 1460 1350 1750 22.7
NN4956 280 380 100 2.1 - 355 960 2230 1300 1700 32.9
NN3056 280 420 106 4 - 384 1080 2080 1300 1500 51.1
NN3056/W33 280 420 106 4 - 384 1080 2080 1300 1500 51.1
NN3056K 280 420 106 4 - 384 1080 2080 1300 1500 51.1
NN3056K/W33 280 420 106 4 - 384 1080 2080 1300 1500 51.1
NN3156 280 460 146 5 - 413 1520 2790 1000 1300 95.7

Super Precision Roller Bearing NN3022KTN1 Double Row Cylindrical W33 Bearing 0

Super Precision Roller Bearing NN3022KTN1 Double Row Cylindrical W33 Bearing 1



Super Precision Roller Bearing NN3022KTN1 Double Row Cylindrical W33 Bearing 2



Super Precision Roller Bearing NN3022KTN1 Double Row Cylindrical W33 Bearing 3



Super Precision Roller Bearing NN3022KTN1 Double Row Cylindrical W33 Bearing 4



Super Precision Roller Bearing NN3022KTN1 Double Row Cylindrical W33 Bearing 5
