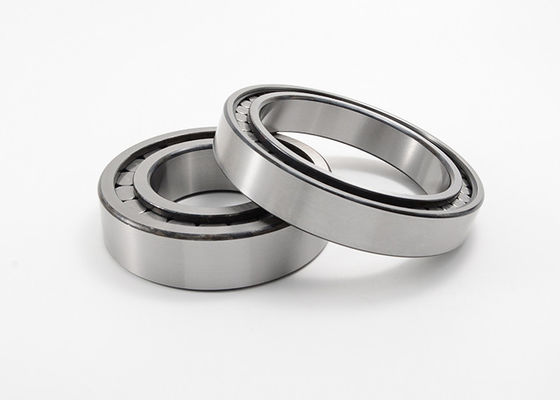

NJ2207E Precision Roller Bearing Single Row Sealed Cylindrical Straight Bore Removable Inner Ring

Cylindrical Roller Bearing Single Row Straight Bore Removable Inner Ring NJ2207E

Single-row cylindrical roller bearing with NJ design

Steel Cage, Machined Brass Cage or Plastic Molded Cage PA66 Matetrial; RBEC 1 | ISO P0; Single Row; Inner Ring - One Side Separable; No Snap Ring; Relubricatable; C0-Medium Internal Clearance; Retainer

A single-row cylindrical bearing with NJ design, consists of a solid inner and outer ring with cylindrical rollers in a cage. The outer ring has two rigid ribs, while the inner ring has one rigid rib. As a result, NJ bearings can support radial forces as well as axial forces in a single direction. This bearing type is used as a support bearing. Support bearings allow axial displacement of the shaft relative to the housing in one direction. The shaft is located axially in the other direction. NJ bearings can also be used as locating bearings by combining them with HJ angle rings (available separately). Locating bearings are used to locate a shaft axially in both directions.

Main Features:

• Single row cylindrical roller bearing for applications that support high radial loads
• C3 radial clearance allows thermal expansion for continuous operating temperatures up to 120 degrees C/248 degrees F
• Semi-locating bearing (two ribs on the outer ring, one rib on the inner ring) for supporting axial forces in one direction
• Polyamide cage is lightweight and produces less noise and vibrations than brass cages
• Removable inner ring in open bearing allows for lubrication in place

Single Row Full Cylindrical Roller Bearing Straight Bore Removable Inner Ring Specifications:
