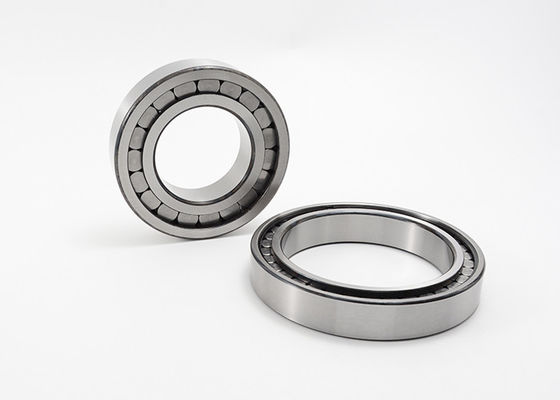

NU212E Cylinder Roller Bearing Single Row Brass Caged Ball Bearing Non Locating With Cage

Cylindrical Roller Bearing With Cage Single Row Non Locating Bearing NU212E

Cylindrical roller bearing with cage, single row, non-locating bearing, 2 ribs on outer ring, 0 ribs on inner ring (smooth), type NU

A single-row cylindrical roller bearing with cage consists of a solid inner and outer ring with cylindrical rollers in a cage. This cage prevents contact between the cylinder rollers, so this bearing type can support higher speeds than full-complement cylinder roller bearings. Also, single-row cylindrical roller bearings with cages are very rigid and they can take high radial forces. As the inner and outer rings of these bearings can be easily disassembled, they are very easy to install.

Overview

• Single row cylindrical roller bearings with cage are units comprising solid inner and outer rings together with cylindrical roller and cage assemblies
• The outer rings have rigid ribs on both sides or are without ribs, the inner rings have one or two rigid ribs or are designed without ribs
• The cage prevents the cylindrical rollers coming into contact with each other during rolling
• Removable inner ring in open bearing allows for lubrication in place
• NU: Two outer flanges, no inner flange

Applications: gearboxes, agricultural machinery, pumps, compressors, and electric motors.

Operating temperature:

Full complement cylindrical roller bearings are suitable for operating temperatures from –30 °C to +120 °C.

Cylindrical Roller Bearing Type NU series Specifications:
