NU330E Precision Roller Bearing Single Row Caged Needle Roller Bearing Non Locating

NU330E Precision Roller Bearing Single Row Caged Needle Roller Bearing Non Locating
NU330E Precision Roller Bearing Single Row Caged Needle Roller Bearing Non Locating NU330E Precision Roller Bearing Single Row Caged Needle Roller Bearing Non Locating

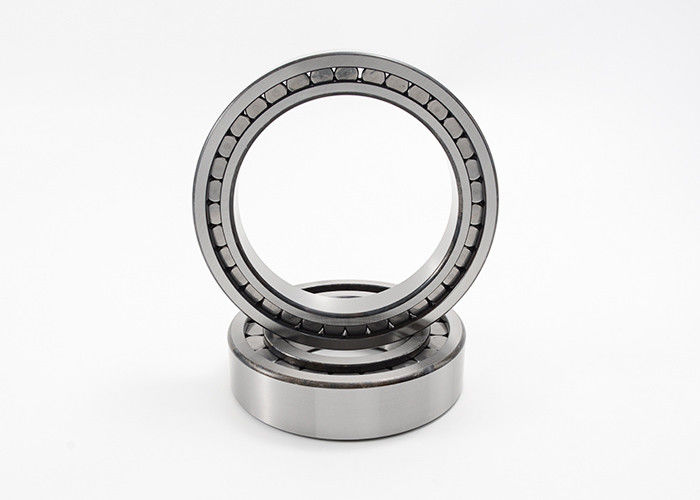

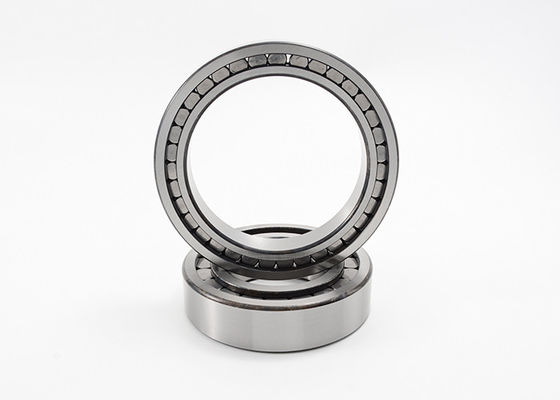

Large Image :  NU330E Precision Roller Bearing Single Row Caged Needle Roller Bearing Non Locating

Product Details:
Place of Origin: China
Brand Name: MOUETTE
Certification: ISO/TS 16949:2009, ISO 9001:2008
Model Number: NU303E, NU304E, NU305E, NU306E, NU307E, NU308E, NU309E, NU310E, NU311E, NU312E, NU313E, NU314E, NU315E, NU316E, NU317E, NU318E, NU319E, NU320E, NU321E, NU322E, NU324E, NU326E, NU328E, NU330E, NU332E, NU334E, NU336E, NU338E, NU340E, NU344E, NU348E, NU352E
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD10 per Piece
Packaging Details: Plastic bags, Cartons and European Standard Plywood Case.
Delivery Time: 3-45 working days.(Huge Quantity Stocks Available))
Payment Terms: L/C, T/T, D/A, Western Union, Paypal
Supply Ability: 500,000 Pieces per Month.
Contact Now

NU330E Precision Roller Bearing Single Row Caged Needle Roller Bearing Non Locating

Description
Name: Single Row Cylindrical Roller Bearings Bore Profile: Straight
Cage Material: Steel / Machined Brass Bearing Material: Bearing Steel 100Cr6, GCr15, AISI 52100
Ring Separation: Separable Outer Ring Sealing: Open
Number Of Rows Of Rollers: 1 (Single Row) Flanges: (2) Outer Ring
Other Features: With Cage, Single Row, Non-locating Bearing, 2 Ribs On Outer Ring, 0 Ribs On Inner Ring (smooth) Radial Internal Play: Normal Internal Play CN / Customized
High Light:

NU330E Precision Roller Bearing

,

single row caged needle roller bearing

,

caged needle roller bearing non locating

Single Row Cylindrical Roller Bearing Straight Bore Non-locating Bearing NU330E



Cylindrical roller bearing, with cage, single row, non-locating bearing, 2 ribs on outer ring, 0 ribs on inner ring (smooth), type NU



About this type NU

  • Single row cylindrical roller bearing for applications that support high radial loads
  • C3 radial clearance allows thermal expansion for continuous operating temperatures up to 120 degrees C/248 degrees F
  • Non-locating bearing (two ribs on the outer ring, none on the inner ring) for allowing outer and inner rings to axially displace relative to each other from the central position

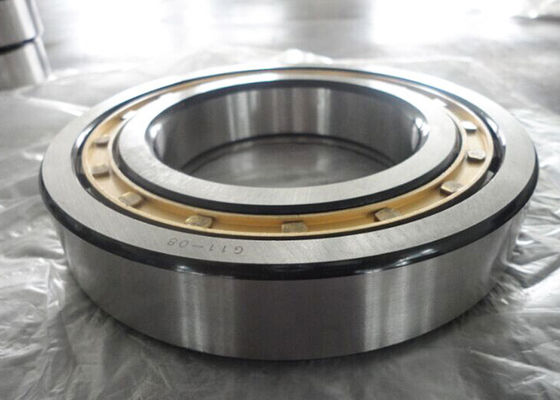

  • Brass cage evenly spaces rollers for reduced friction, vibrations, and noise
  • Removable inner ring in open bearing allows for lubrication in place
  • The cylindrical roller bearings are supplied in an open design.
  • Design E is Increased Capacity Design



Non-locating Bearing Single Row Cylindrical Roller Bearing Straight Bore Specifications:

Bearing Code Dimensions Mass Basic Load Ratings Limiting Speed
d D B rsmin D1 Fw, Ew dynamic static
Cr Cor
mm kg KN 　 rpm
NU303E 17 47 14 1 37 24.2 0.122 25.5 21.2 16000
NU304E 20 52 15 1.1 42.4 27.5 0.153 31.5 27 14000
NU305E 25 62 17 1.1 50.7 34 0.245 41.5 37.5 12000
NU306E 30 72 19 1.1 58.9 40.5 0.368 51 48 10000
NU307E 35 80 21 1.5 66.3 46.2 0.486 64 63 9000
NU308E 40 90 23 1.5 75.6 52 0.659 81.5 78 7500
NU309E 45 100 25 1.5 83.5 58.5 0.893 98 100 6700
NU310E 50 110 27 2 91.2 65 1.16 110 114 6300
NU311E 55 120 29 2 101 70.5 1.48 134 140 5600
NU312E 60 130 31 2.1 110 77 1.85 150 156 5000
NU313E 65 140 33 2.1 119 82.5 2.28 180 190 4800
NU314E 70 150 35 2.1 127 89 2.79 204 220 4500
NU315E 75 160 37 2.1 136 95 3.33 240 265 4000
NU316E 80 170 39 2.1 144 101 3.96 255 275 3800
NU317E 85 180 41 3 153 108 　 290 325 5600
NU318E 90 190 43 3 162 113.5 5.39 315 345 3400
NU319E 95 200 45 3 170 121.5 6.32 335 380 3400
NU320E 100 215 47 3 182 127.5 7.67 380 425 5000
NU321E 105 225 49 2.1 190 133 8.75 480 500 3800
NU322E 110 240 50 3 201 143 10.3 440 510 4800
NU324E 120 260 55 3 219 154 13.3 520 600 2800
NU326E 130 280 58 4 236 167 16.2 570 670 2600
NU328E 140 300 62 4 252 180 20.1 670 800 2400
NU330E 150 320 65 4 270 193 26.8 765 930 3600
NU332E 160 340 68 4 286 204 31.8 865 1060 3000
NU334E 170 360 72 4 303 218 38 965 1220 3000
NU336E 180 380 75 4 319 227 43.9 1040 1320 2800
NU338E 190 400 78 5 338 245 50.6 1120 1430 2800
NU340E 200 420 80 5 337 260 57.3 1180 1530 2600
NU344E 220 460 88 5 371 284 75.5 1430 1900 2400
NU348E 240 500 95 5 401 310 95.7 1730 2280 2200
NU352E 260 540 102 6 455 337 121 1900 2600 2000

NU330E Precision Roller Bearing Single Row Caged Needle Roller Bearing Non Locating 0

NU330E Precision Roller Bearing Single Row Caged Needle Roller Bearing Non Locating 1



NU330E Precision Roller Bearing Single Row Caged Needle Roller Bearing Non Locating 2



NU330E Precision Roller Bearing Single Row Caged Needle Roller Bearing Non Locating 3



NU330E Precision Roller Bearing Single Row Caged Needle Roller Bearing Non Locating 4
