Product Details:
|
| Name: | Single Row Cylindrical Roller Bearing | Design E: | Increased Capacity Design |
|---|---|---|---|
| Cage Material: | Steel / Solid Window Cage Made From PA66 | Bearing Material: | Bearing Quality Steel 100Cr6, GCr15, AISI 52100 |
| Measurement System: | Metric Series | Sealing: | Open |
| Tolerance Class: | Normal / Customized | Number Of Rolling Element Rows: | Single-row Design |
| Other Featurs: | With Cage, Single Row, Locating Bearing, 2 Ribs On Outer Ring, 1 Rib On Inner Ring, Rib Washer Internal | Radial Internal Clearance: | CN |
| High Light: | single row nup cylindrical roller bearing,nup cylindrical roller bearing with cage,NUP303E radial cylindrical roller bearings |
||

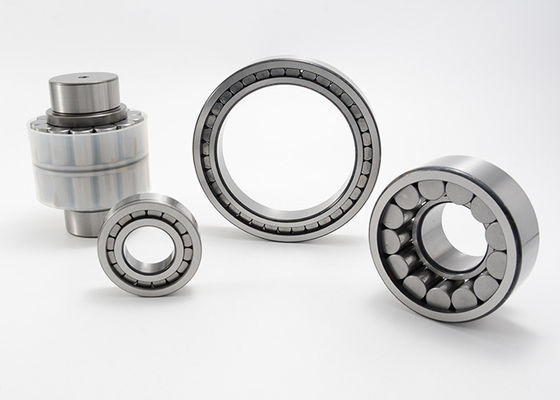

Single Row Cylindrical Roller Bearing With Cage Removable Inner Ring NUP303E
Single Row Cylindrical Roller Bearing With Cage Removable Inner Ring NUP Series Details:
| Bearing Code | Dimensions | Mass | Basic Load Ratings | Limiting Speed | ||||||
| d | D | B | rsmin | D1 | Fw, Ew | dynamic | static | |||
| Cr | Cor | |||||||||
| mm | kg | KN | rpm | |||||||
| NUP303E | 17 | 47 | 14 | 1 | 37 | 24.2 | 0.127 | 25.5 | 21.2 | 16000 |
| NUP304E | 20 | 52 | 15 | 1.1 | 42.4 | 27.5 | 0.16 | 31.5 | 27 | 14000 |
| NUP305E | 25 | 62 | 17 | 1.1 | 50.7 | 34 | 0.256 | 41.5 | 37.5 | 12000 |
| NUP306E | 30 | 72 | 19 | 1.1 | 58.9 | 40.5 | 0.385 | 51 | 48 | 10000 |
| NUP307E | 35 | 80 | 21 | 1.5 | 66.3 | 46.2 | 0.506 | 64 | 63 | 9000 |
| NUP308E | 40 | 90 | 23 | 1.5 | 75.6 | 52 | 0.688 | 81.5 | 78 | 7500 |
| NUP309E | 45 | 100 | 25 | 1.5 | 83.5 | 58.5 | 0.934 | 98 | 100 | 6700 |
| NUP310E | 50 | 110 | 27 | 2 | 91.2 | 65 | 1.21 | 110 | 114 | 6300 |
| NUP311E | 55 | 120 | 29 | 2 | 101 | 70.5 | 1.54 | 134 | 140 | 5600 |
| NUP312E | 60 | 130 | 31 | 2.1 | 110 | 77 | 1.93 | 150 | 156 | 5000 |
| NUP313E | 65 | 140 | 33 | 2.1 | 119 | 82.5 | 2.37 | 180 | 190 | 4800 |
| NUP314E | 70 | 150 | 35 | 2.1 | 127 | 89 | 2.89 | 204 | 220 | 4500 |
| NUP315E | 75 | 160 | 37 | 2.1 | 136 | 95 | 240 | 265 | 4000 | |
| NUP316E | 80 | 170 | 39 | 2.1 | 144 | 101 | 4.11 | 255 | 275 | 3800 |
| NUP317E | 85 | 180 | 41 | 3 | 153 | 108 | 4.8 | 270 | 300 | 3600 |
| NUP318E | 90 | 190 | 43 | 3 | 162 | 113.5 | 5.59 | 315 | 345 | 3400 |
| NUP319E | 95 | 200 | 45 | 3 | 170 | 121.5 | 6.55 | 335 | 380 | 3400 |
| NUP320E | 100 | 215 | 47 | 3 | 182 | 127.5 | 7.96 | 380 | 425 | 5000 |
| NUP322E | 110 | 240 | 50 | 3 | 201 | 143 | 10.7 | 440 | 510 | 4800 |
| NUP324E | 120 | 260 | 55 | 3 | 219 | 154 | 13.8 | 520 | 600 | 2800 |
| NUP326E | 130 | 280 | 58 | 4 | 236 | 167 | 17 | 610 | 720 | 2600 |
| NUP328E | 140 | 300 | 62 | 4 | 252 | 180 | 20.8 | 670 | 800 | 2400 |
