Product Details:
|
| Name: | Single Row Cylindrical Roller Bearings | Bore Profile: | Cylindrical Bore |
|---|---|---|---|
| Profile: | Complete With Outer And Inner Ring | Sealing: | No Seal |
| Bearing Material: | 52100 Chrome Steel, Or Equivalent | Cage Material: | Steel / Plastic Molded Cage |
| Inch - Metric: | Metric Series | Relubricatable: | Yes |
| Rolling Element: | Cylindrical Roller | Internal Clearance: | C0-Medium |
| High Light: | NUP2305E Precision Roller Bearing,needle roller bearing with inner ring removable,single row needle roller bearing with inner ring |
||

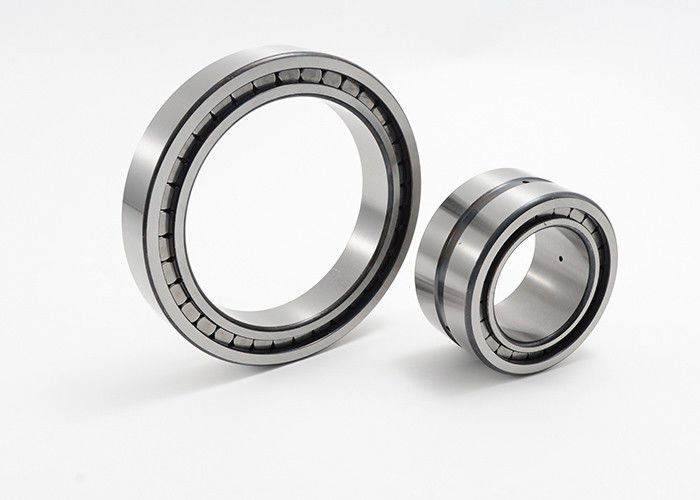

Single Row Precision Cylindrical Roller Bearing Removable Inner Ring NUP2305E
Cylindrical Roller Bearing, Single Row, Straight Bore, Removable Inner Ring, Two Piece, High Capacity, Normal Clearance, Metric
NUP2300 Series are single-row cylindrical roller bearings with cage. The bearing consists of a solid inner and outer ring with cylindrical rollers in a cage. This cage prevents contact between the cylinder rollers, so this bearing type can support higher speeds than full-complement cylinder roller bearings. Also, single-row cylindrical roller bearings with cages are very rigid and they can take high radial forces. As the inner and outer rings of these bearings can be easily disassembled, they are very easy to install. Applications of single-row cylindrical roller bearings include gearboxes, agricultural machinery, pumps, compressors, and electric motors.
The NUP2305E is a single-row cylindrical bearing with NUP design. The outer ring has two rigid ribs, while the inner ring has one rigid and one loose rib. As a result, this bearing can take radial forces as well as axial forces in both directions. NUP bearings are used as locating bearings. Locating bearings locate a shaft axially in both directions.
Main Features:
Single Row Cylindrical Roller Bearing Removable Inner Ring NUP Series Details:
| Bearing Code | Dimensions | Mass | Basic Load Ratings | Limiting Speed | ||||||
| d | D | B | rsmin | D1 | Fw, Ew | dynamic | static | |||
| Cr | Cor | |||||||||
| mm | kg | KN | rpm | |||||||
| NUP2304E | 20 | 52 | 21 | 1.1 | 42.4 | 27.5 | 0.224 | 41.5 | 39 | 14000 |
| NUP2305E | 25 | 62 | 24 | 1.1 | 50.7 | 34 | 0.363 | 57 | 56 | 12000 |
| NUP2306E | 30 | 72 | 27 | 1.1 | 58.9 | 40.5 | 0.551 | 73.5 | 75 | 10000 |
| NUP2307E | 35 | 80 | 31 | 1.5 | 66.3 | 46.2 | 0.751 | 91.5 | 98 | 9000 |
| NUP2308E | 40 | 90 | 33 | 1.5 | 75.6 | 52 | 0.999 | 112 | 120 | 7500 |
| NUP2309E | 45 | 100 | 36 | 1.5 | 83.5 | 58.5 | 1.36 | 137 | 153 | 6700 |
| NUP2310E | 50 | 110 | 40 | 2 | 91.2 | 65 | 1.82 | 163 | 186 | 6300 |
| NUP2311E | 55 | 120 | 43 | 2 | 101 | 70.5 | 2.31 | 200 | 228 | 5600 |
| NUP2312E | 60 | 130 | 46 | 2.1 | 110 | 77 | 2.88 | 224 | 260 | 5000 |
| NUP2313E | 65 | 140 | 48 | 2.1 | 119 | 82.5 | 3.45 | 245 | 285 | 4800 |
| NUP2314E | 70 | 150 | 51 | 2.1 | 127 | 89 | 4.18 | 275 | 325 | 4500 |
| NUP2315E | 75 | 160 | 55 | 2.1 | 136 | 95 | 5.14 | 325 | 390 | 4000 |
| NUP2316E | 80 | 170 | 58 | 2.1 | 144 | 101 | 6.11 | 355 | 425 | 3800 |
| NUP2317E | 85 | 180 | 60 | 3 | 153 | 108 | 6.99 | 365 | 450 | 3600 |
| NUP2318E | 90 | 190 | 64 | 3 | 162 | 113.5 | 8.35 | 430 | 530 | 3400 |
| NUP2319E | 95 | 200 | 67 | 3 | 170 | 121.5 | 455 | 585 | 3400 | |
| NUP2320E | 100 | 215 | 73 | 3 | 182 | 127.5 | 12.5 | 570 | 72 | 3200 |
| NUP2322E | 110 | 240 | 80 | 3 | 201 | 143 | 17.2 | 630 | 800 | 2800 |
| NUP2324E | 120 | 260 | 86 | 3 | 219 | 154 | 23.8 | 780 | 1020 | 4300 |
| NUP2326E | 130 | 280 | 93 | 4 | 236 | 167 | 29.7 | 915 | 1220 | 3800 |
| NUP2328E | 140 | 300 | 102 | 4 | 252 | 180 | 37.1 | 1020 | 1400 | 3600 |
| NUP2330E | 150 | 320 | 108 | 4 | 270 | 193 | 44.6 | 1160 | 1600 | 3200 |
