Product Details:
|
| Name: | All Stainless Steel Pillow Block Units | Units Material: | Stainless Steel For Housing And Insert Bearing |
|---|---|---|---|
| Bearing Type: | Heavy Duty Type | Housing Type: | Heavy Duty Type |
| Housing Style: | 2 Bolt Pillow Block | Mounting Method: | Set Screw Locking |
| Expansion / Non-expansion: | Non-Expansion | Relubricatable: | Yes |
| Compliance With Standard: | ISO, JIS, North American Standard | Applications: | Food And Beverage Processing And Packaging, Conveyor Systems, Elevator Systems, Agricultural Machinery |
| High Light: | 2 holes flange mounted pillow block bearings,flange mounted pillow block bearings stainless steel,heavy duty pillow block bearing Non Expansion |
||

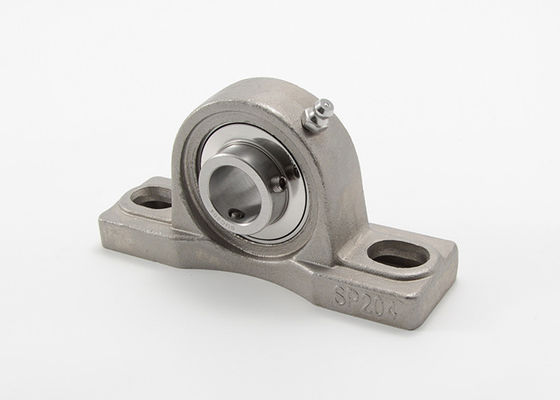

All Stainless Steel Pillow Block Units 2 Holes Flange Duty Type SUCPX05 SUCPX06
Because of their versatility and cost-effectiveness, ball bearing units are used in many industrial applications.
Ball bearing units consist of an insert bearing mounted in a housing. An insert bearing is a deep groove ball bearing with a sphered (convex) outside surface and an extended inner ring that includes a mechanism to lock the unit onto the shaft. The housings have a correspondingly sphered but concave bore.

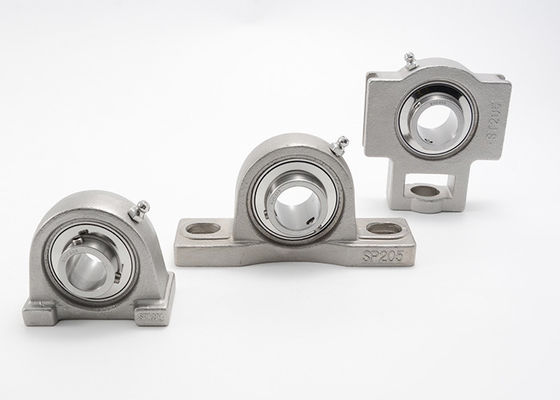

MOUETTE pillow (plummer) block ball bearing units consist of an insert bearing mounted in a housing, which can be bolted to a support surface. Standard unit housing designs include cast iron, composites, pressed steel and stainless steel materials. MOUETTE mainly produced housing and insert bearings in stainless steel; or insert bearings in stainless steel, but housing in plastic material.
Main Features:
| Unit Bearing Description | All stainless steel pillow block units mounted bearing |
| Material | Stainless steel for housing and insert bearing |
| Number of Mounting Holes | 2 |
| Mounting Method | Set screw |
| Housing Style | Flange 2 bolt pillow block |
| Rolling Element | Ball Bearing |
| Expansion / Non-expansion | Non-expansion |
| Duty Type | Heavy duty |
| Relubricatable | Yes |
All Stainless Steel Pillow Block Units 2 Holes Flange Duty Type SUCPX00 Specifications:
|
Bearing Unit Part No. |
Bore Dia | Dimension(mm) |
Bearing Part No. |
Housing Part No. |
Net Weight (kg) |
||||||||||
| d | h | a | e | b | S1 | S2 | g | W | S | B | |||||
| in | mm | ||||||||||||||
|
SUCPX05 SUCPX05-14 SUCPX05-15 SUCPX05-16 |
7/8 15/16 1 |
25 |
44.45 |
159 |
119 |
51 |
17 |
25 |
18 |
85 |
15.9 |
38.1 |
SUCX05 SUCX05-14 SUCX05-15 SUCX05-16 |
SPX05 |
1.48 |
|
SUCPX06 SUCPX06-17 SUCPX06-18 SUCPX06-19 SUCPX06-20 |
1-1/16 1-1/8 1-3/16 1-1/4 |
30 |
47.6 |
175 |
127 |
57 |
17 |
25 |
20 |
94 |
17.5 |
42.9 |
SUCX06 SUCX06-17 SUCX06-18 SUCX06-19 SUCX06-20 |
SPX06 |
1.99 |
|
SUCPX07 SUCP X07-20 SUCPX07-21 SUCPX07-22 SUCPX07-23 |
1-1/4 1-5/16 1-3/8 1-7/16 |
35 |
54 |
203 |
144 |
57 |
17 |
30 |
22 |
105 |
19.0 |
49.2 |
SUCX07 SUCX07-20 SUCX07-21 SUCX07-22 SUCX07-23 |
SPX07 |
2.57 |
|
SUCPX08 SUCPX08-24 SUCPX08-25 |
1-1/2 1-9/16 |
40 | 58.7 | 222 | 156 | 67 | 20 | 32 | 26 | 113 | 19.0 | 49.2 |
SUCX08 SUCX08-24 SUCX08-25 |
SPX08 | 3.12 |
|
SUCPX09 SUCPX09-26 SUCPX09-27 SUCPX09-28 |
1-5/8 1-11/16 1-3/4 |
45 |
58.7 |
222 |
156 |
67 |
20 |
33 |
26 |
116 |
19.0 |
51.6 |
SUCX09 SUCX09-26 SUCX09-27 SUCX09-28 |
SPX09 |
3.58 |
|
SUCPX10 SUCPX10-29 SUCPX10-30 SUCPX10-31 SUCPX10-32 |
1-13/16 1-7/8 1-15/16 2 |
50 |
63.5 |
241 |
171 |
73 |
20 |
37 |
27 |
126 |
22.2 |
55.6 |
SUCX10 SUCX10-29 SUCX10-30 SUCX10-31 SUCX10-32 |
SPX10 |
4.81 |
|
SUCPX11 SUCPX11-32 SUCPX11-33 SUCPX11-34 SUCPX11-35 |
2 2-1/16 2-1/8 2-3/16 |
55 |
69.8 |
260 |
184 |
79 |
25 |
37 |
30 |
139 |
25.4 |
65.1 |
SUCX11 SUCX11-32 SUCX11-33 SUCX11-34 SUCX11-35 |
SPX11 |
6.15 |
|
SUCPX12 SUCPX12-36 SUCPX12-37 SUCPX12-38 SUCPX12-39 |
2-1/4 2-5/16 2-3/8 2-7/16 |
60 |
76.2 |
286 |
203 |
83 |
25 |
41 |
32 |
151 |
25.4 |
65.1 |
SUCX12 SUCX12-36 SUCX12-37 SUCX12-38 SUCX12-39 |
SPX12 |
7.10 |
|
SUCPX13 SUCPX13-40 SUCPX13-41 |
2-1/2 2-9/16 |
65 | 76.2 | 286 | 203 | 83 | 25 | 41 | 32 | 151 | 30.2 | 74.6 |
SUCX13 SUCX13-40 SUCX13-41 |
SPX13 | 7.42 |
|
SUCPX14 SUCPX14-42 SUCPX14-43 SUCPX14-44 |
2-5/8 2-11/16 2-3/4 |
70 |
88.9 |
330 |
229 |
89 |
27 |
51 |
35 |
172 |
33.3 |
77.8 |
SUCX14 SUCX14-42 SUCX14-43 SUCX14-44 |
SPX14 |
8.60 |
|
SUCPX15 SUCPX15-45 SUCPX15-46 SUCPX15-47 SUCPX15-48 |
2-13/16 2-7/8 2-15/16 3 |
75 |
88.9 |
330 |
232 |
89 |
27 |
51 |
35 |
174 |
33.3 |
82.6 |
SUCX15 SUCX15-45 SUCX15-46 SUCX15-47 SUCX15-48 |
SPX15 |
10.59 |
|
SUCPX16 SUCPX16-50 |
3-1/8 | 80 | 101.6 | 381 | 283 | 102 | 27 | 59 | 42 | 197 | 34.1 | 85.7 |
SUCX16 SUCX16-50 |
SPX16 | 13.16 |
|
SUCPX17 SUCPX17-52 |
3-1/4 | 85 | 101.6 | 381 | 283 | 102 | 27 | 59 | 42 | 202 | 39.7 | 96 |
SUCX17 SUCX17-52 |
SPX17 | 16.21 |
|
SUCPX18 SUCPX18-56 |
3-1/2 |
90 | 101.6 | 381 | 283 | 111 | 27 | 60 | 45 | 206 | 42.9 | 104 |
SUCX18 SUCX18-56 |
SPX18 | 17.60 |
|
SUCPX20 SUCPX20-64 |
4 |
100 | 127 | 432 | 337 | 121 | 33 | 64 | 52 | 250 | 49.2 | 117.5 |
SUCX20 SUCX20-64 |
SPX20 | 29.80 |
