Product Details:
|
Name: | Tapped-Base Pillow Block Unit | Bearing Type: | Ball Bearing |
---|---|---|---|
Housing Material: | Stainless Steel 440C, Stainless Steel 420 | Insert Bearings' Material: | Stainless Steel 440C, Stainless Steel 420 |
Locking Device: | Set Screw | Seal Type: | Contact |
Lubrication: | Relubricatable | Size Range: | Metric, Bore Diameter From 12mm To 90mm |
Compliance With Standard: | ISO, JIS, North American Standard | Applications: | Food And Beverage Processing And Packaging, Conveyor Systems, Elevator Systems, Agricultural Machinery |
High Light: | 440c tapped base pillow block bearings,420 tapped base pillow block bearings,Relubricatable Mounted Ball Bearing |

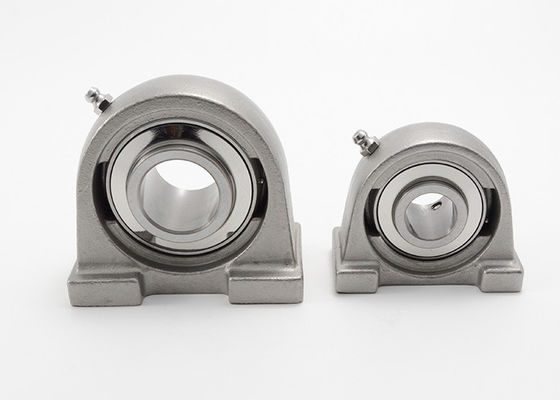

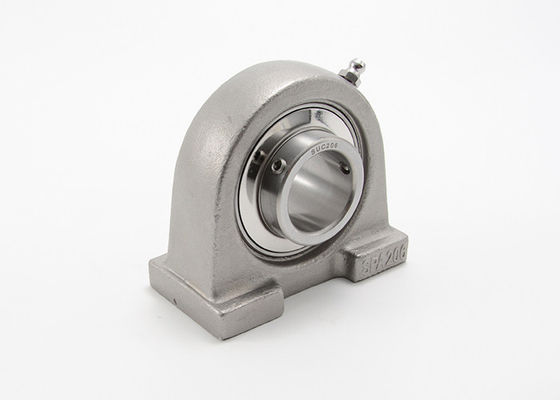

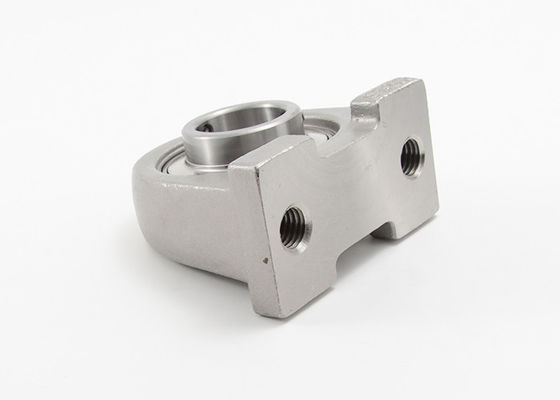

Tapped-Base Pillow Block Unit Mounted Ball Bearing Short Legs SUCPW201
Tapped-Base Stainless Steel Pillow Block Unit is a premium line of corrosion-resistant products developed for the harsh, caustic conditions and safety requirements of the food and beverage industry. With a product offering that include stainless bearing inserts, and mounted units and numerous combinations of housings, protective covers, grease, and sealing options available, this series provides a family of food and beverage market solutions to improve overall equipment effectiveness, increase production, and provide value.
Mainly Applications:
Tapped-Base Stainless Steel Pillow Block Unit SUCPW2 Series Specifications:
Bearing Unit Part No. |
Bore Dia | Dimension(mm) |
Bearing Part No. |
Housing Part No. |
Net Weight (kg) |
||||||||||
d | h | a | e | b | g | W | F | t | S | B | |||||
in | mm | ||||||||||||||
SUCPW201 SUCPW201-8 SUCPW202 SUCPW202-10 SUCPW203 SUCPW203-11 |
1/2
5/8
11/16 |
12
15
17 |
33.3 |
65 |
50.8 |
32 |
11 |
64 |
13 |
M8 |
12.7 |
31 |
SUC201 SUC201-8 SUC202 SUC202-10 SUC203 SUC203-11 |
SPW203 |
0.70 |
SUCPW204 SUCPW204-12 |
3/4 |
20 |
33.3 |
65 |
50.8 |
32 |
11 |
64 |
13 |
M8 |
12.7 |
31 |
SUC204 SUC204-12 |
SPW204 |
0.66 |
SUCPW205 SUCPW205-14 SUCPW205-15 SUCPW205-16 |
7/8 15/16 1 |
25 |
36.5 |
70 |
50.8 |
36 |
12 |
70 |
13 |
M10 |
14.3 |
34.1 |
SUC205 SUC205-14 SUC205-15 SUC205-16 |
SPW205 |
0.84 |
SUCPW206 SUCPW206-17 SUCPW206-18 SUCPW206-19 SUCPW206-20 |
1-1/16 1-1/8 1-3/16 1-1/4 |
30 |
42.9 |
98 |
76.2 |
38 |
12 |
82 |
16 |
M10 |
15.9 |
38.1 |
SUC206 SUC206-17 SUC206-18 SUC206-19 SUC206-20 |
SPW206 |
1.48 |
SUCPW207 SUCPW207-20 SUCPW207-21 SUCPW207-22 SUCPW207-23 |
1-1/4 1-5/16 1-3/8 1-7/16 |
35 |
47.6 |
103 |
82.6 |
45 |
17 |
93 |
19 |
M10 |
17.5 |
42.9 |
SUC207 SUC207-20 SUC207-21 SUC207-22 SUC207-23 |
SPW207 |
1.94 |
SUCPW208 SUCPW208-24 SUCPW208-25 |
1-1/2 1-9/16 |
40 |
49.2 |
116 |
88.9 |
47 |
12 |
99 |
19 |
M12 |
19.0 |
49.2 |
SUC208 SUC208-24 SUC208-25 |
SPW208 |
2.40 |
SUCPW209 SUCPW209-26 SUCPW209-27 SUCPW209-28 |
1-5/8 1-11/16 1-3/4 |
45 |
53.9 |
120 |
95.3 |
48 |
12 |
107 |
19 |
M12 |
19.0 |
49.2 |
SUC209 SUC209-26 SUC209-27 SUC209-28 |
SPW209 |
2.70 |
SUCPW210 SUCPW210-29 SUCPW210-30 SUCPW210-31 SUCPW210-32 |
1-13/16 1-7/8 1-15/16 2 |
50 |
57.2 |
135 |
101.6 |
54 |
14 |
115 |
22 |
M16 |
19.0 |
51.6 |
SUC210 SUC210-29 SUC210-30 SUC210-31 SUC210-32 |
SPW210 |
3.22 |
