440c 420 Stainless Pillow Block Bearing 4 Bolt Heavy Duty Flange Bearing SUCFS308

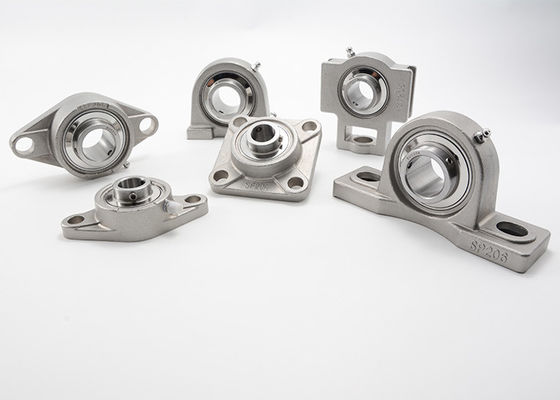

Large Image : 440c 420 Stainless Pillow Block Bearing 4 Bolt Heavy Duty Flange Bearing SUCFS308

Product Details:

Place of Origin:	China
Brand Name:	MOUETTE
Certification:	ISO/TS 16949:2009, ISO 9001:2008
Model Number:	SUCFS305, SUCFS306, SUCFS307, SUCFS308, SUCFS309, SUCFS310, SUCFS311, SUCFS312, SUCFS313, SUCFS314, SUCFS315, SUCFS316, SUCFS317, SUCFS318, SUCFS319, SUCFS320, SUCFS321, SUCFS322, SUCFS324, SUCFS326, SUCFS328

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	USD1 per Piece (Inquired)
Packaging Details:	Plastic bags, Cartons and European Standard Plywood Case.
Delivery Time:	3-50 working days.(Huge Quantity Stocks Available))
Payment Terms:	L/C, T/T, D/A, Western Union, Paypal
Supply Ability:	500,000 Pieces per Month.

Contact Now

440c 420 Stainless Pillow Block Bearing 4 Bolt Heavy Duty Flange Bearing SUCFS308

Description

Name:	Heavy Duty Pillow Block Bearings Units	Mounted Unit Duty:	Heavy-Duty
Flange Type:	4-Bolt Flange	Bearing Type:	Ball Bearing
Housing Material:	Stainless Steel 440C, Stainless Steel 420	Insert Bearings' Material:	Stainless Steel 440C, Stainless Steel 420
End Type:	Open End	Lock Device:	Setscrew Locking Collar
Bearing Design:	Non-Expansion	Lubrication:	Relubricatable
Compliance With Standard:	ISO, JIS, North American Standard	Applications:	Food And Beverage Processing And Packaging, Conveyor Systems, Elevator Systems, Agricultural Machinery
High Light:	440c stainless pillow block bearing , 420 stainless pillow block bearing , 4 bolt heavy duty pillow block

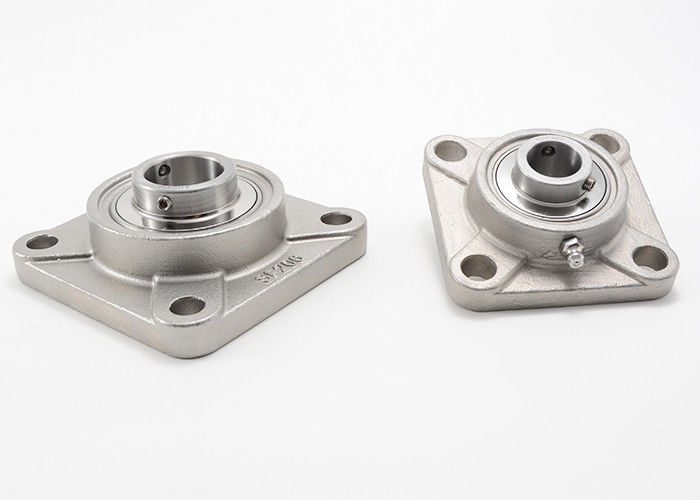

Stainless Steel Pillow Block Bearing Units Heavy Duty 4 Bolt Flange Bearing SUCFS308

Features

Insert Ball Bearing
- Set Screw Locking
- Heavy Duty
- Wide Inner Ring
- Stainless steel 420 or 440
Housing
- Piloted Four-Bolt Flange
- Stainless steel 420 or 440

Mainly Applications:

Elevator systems
Food and beverage processing and packaging
Conveyor systems
Power transmission
Construction machinery
Agricultural machinery
Packaging systems

MOUETTE can supply you all range of bearing housing in Stainless steel, Chrome steel, Plastic and other material customers required. We can make both Metric and inch sized housing for different markets.

Pillow Block Bearings Specifications:

Bearing Unit Part No.	Bore Dia		Dimension(mm)										Bearing Part No.	Housing Part No.	Net Weight (kg)
	d		a	e	i	g	f	j	k	N	E	S
	in	mm	a	e	i	g	f	j	k	N	E	S
SUCFS305 SUCFS305-14 SUCFS305-15 SUCFS305-16	7/8 15/16 1	25	110	80	9	22	80	7	13	16	39	15	SUC305 SUC305-14 SUC305-15 SUC305-16	SFS305	1.17
SUCFS306 SUCFS306-18 SUCFS306-19	1-1/8 1-3/16	30	125	95	10	24	90	8	15	16	44	17	SUC306 SUC306-18 SUC306-19	SFS306	1.71
SUCFS307 SUCFS307-20 SUCFS307-21 SUCFS307-22	1-1/4 1-5/16 1-3/8	35	135	100	11	27	100	9	16	19	49	19.0	SUC307 SUC307-20 SUC307-21 SUC307-22	SFS307	2.20
SUCFS308 SUCFS308-24 SUCFS308-25	1-1/2 1-9/16	40	150	112	13	30	115	10	17	19	56	19.0	SUC308 SUC308-24 SUC308-25	SFS308	3.00
SUCFS309 SUCFS309-26 SUCFS309-27 SUCFS309-28	1-5/8 1-11/16 1-3/4	45	160	125	14	33	125	11	18	19	60	22	SUC309 SUC309-26 SUC309-27 SUC309-28	SFS309	3.61
SUCFS310 SUCFS310-30 SUCFS310-31	1-7/8 1-15/16	50	175	132	16	36	140	12	19	23	67	22	SUC310 SUC310-30 SUC310-31		4.80
SUCFS311 SUCFS311-32 SUCFS311-34 SUCFS311-35	2 2-1/8 2-3/16	55	185	140	17	39	150	13	20	23	71	25	SUC311 SUC311-32 SUC311-34 SUC311-35	SFS311	5.70
SUCFS312 SUCFS312-36 SUCFS312-38 SUCFS312-39	2-1/4 2-3/8 2-7/16	60	195	150	19	42	160	14	22	23	78	26	SUC312 SUC312-36 SUC312-38 SUC312-39	SFS312	6.70
SUCFS313 SUCFS313-40	2-1/2	65	208	166	15	40	175	18	22	23	78	30	SUC313 SUC313-40	SFS313	8.32
SUCFS314 SUCFS314-44	2-3/4	70	226	178	18	43	185	18	25	25	81	33	SUC314 SUC314-44	SFS314	10.20
SUCFS315 SUCFS315-48	3	75	236	184	21	48	200	18	25	25	89	32	SUC315 SUC315-48	SFS315	11.58
SUCFS316 SUCFS316-50	3-1/8	80	250	196	18	48	210	20	27	31	90	34	SUC316 SUC316-50	SFS316	13.75
SUCFS317 SUCFS317-52	3-1/4	85	260	204	24	54	220	20	27	31	100	40	SUC317 SUC317-52	SFS317	15.90
SUCFS318 SUCFS318-56	3-1/2	90	280	216	24	56	240	20	30	35	100	40	SUC318 SUC318-56	SFS318	20.10
SUCFS319 SUCFS319-60	3-3/4	95	290	228	39	74	250	20	30	35	121	41	SUC319 SUC319-60	SFS319	23.25
SUCFS320 SUCFS320-64	4	100	310	242	39	74	260	20	32	38	125	42	SUC320 SUC320-64	SFS320	25.78
SUCFS321	/	105	310	242	39	74	260	20	32	38	127	44	SUC321	SFS321	26.30
SUCFS322	/	110	340	266	35	71	300	25	35	41	131	46	SUC322	SFS322	36.00
SUCFS324	/	120	370	290	35	80	330	30	40	41	140	51	SUC324	SFS324	48.70
SUCFS326	/	130	410	320	35	85	360	30	45	41	146	54	SUC326	SFS326	64.8
SUCFS328	/	140	450	350	45	95	400	30	55	41	161	59	SUC328	SFS328	90.4
