Product Details:
|
Name: | 2-Bolt Flange Mounting Bearing | Bearing Insert Type: | Ball Bearing |
---|---|---|---|
Housing Material: | Stainless Steel 440C, Stainless Steel 420 | Insert Bearings' Material: | Stainless Steel 440C, Stainless Steel 420 |
Shaft Locking Type: | Eccentric Locking Collar | Measurement System: | Metric |
Compliance With Standard: | ISO, JIS, North American Standard | Applications: | Food And Beverage Processing And Packaging, Conveyor Systems, Elevator Systems, Agricultural Machinery |
High Light: | flange mount 2 bolt pillow block bearing,2 bolt pillow block bearing Eccentric Locking Collar,440c flange pillow block |

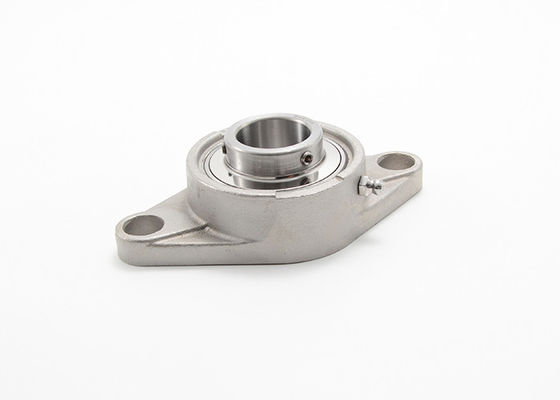

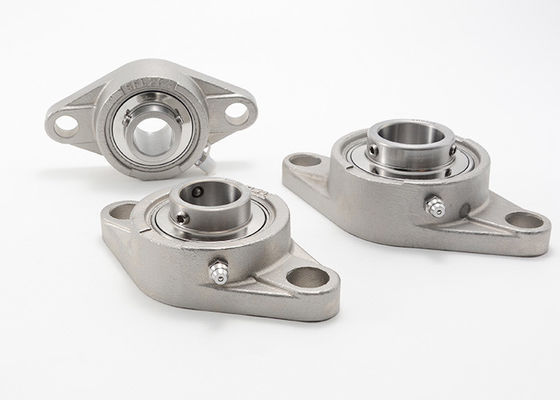

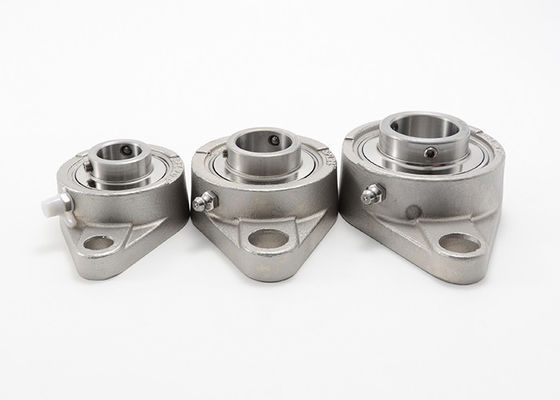

2-Bolt Flange Mounting Bearing Eccentric Locking Collar With Wide Inner Ring SHCFLU204
Product Description:
2-Bolt Flange Mounting Bearings are designed to help provide support for shafts that run perpendicular to the bearing mounting surface.
Main Features:
Mainly Applications:
2-Bolt Flange Mounting Bearing Eccentric Locking Collar With Wide Inner Ring SHCFLU2 Specifications:
Bearing Unit Part No. |
Bore Dia | Dimension(mm) |
Bearing Part No. |
Housing Part No. |
Net Weight (kg) |
|||||||||
d | a | e |
b |
i |
g |
L |
N |
E |
S |
|||||
in | mm | |||||||||||||
SHCFLU204 SHCFLU204-12 |
3/ 4 |
20 | 112.5 | 90 | 61 | 19 | 15 | 29.5 | 11.5 | 39.3 | 12.7 |
SHC204 SHC204-12 |
SFLU204 | 0.59 |
SHCFLU205 SHCFLU205-14 SHCFLU205-15 |
7/8 15/16 |
25 |
123 |
99 |
70 |
19 |
15 |
30 |
11.5 |
41.2 |
14.3 |
SHC205 SHC205-14 SHC205-15 |
SFLU205 |
0.65 |
SHCFLU205-16 | 1 | SHC205-16 | ||||||||||||
SHCFLU206 SHCFLU206-18 SHCFLU206-19 SHCFLU206-20 |
1-1/8 1-3/16 1-1/4 |
30 |
142 |
116.5 |
82 |
20 |
16 |
32.5 |
11.5 |
46 |
15.9 |
SHC206 SHC206-18 SHC206-19 SHC206-20 |
SFLU206 |
0.94 |
SHCFLU207 SHCFLU207-20 SHCFLU207-21 SHCFLU207-22 SHCFLU207-23 |
1-1/4 1-5/16 1-3/8 1-7/16 |
35 | 158 | 130 | 94 | 21 | 17 | 36 | 14 | 49.8 | 17.5 |
SHC207 SHC207-20 SHC207-21 SHC207-22 SHC207-23 |
SFLU207 | 1.1 |
SHCFLU208 SHCFLU208-24 SHCFLU208-25 |
1-1/2 1-9/16 |
40 |
172 |
143.5 |
103 |
24 |
17 |
39 |
14 |
53.9 |
19 |
SHC208 SHC208-24 SHC208-25 |
SFLU208 |
1.16 |
SHCFLU209 SHCFLU209-26 SHCFLU209-27 SHCFLU209-28 |
1-5/8 1-11/16 1-3/4 |
45 |
180 |
148.5 |
108 |
24 |
18 |
40 |
16 |
54 |
19.1 |
SHC209 SHC209-26 SHC209-27 SHC209-28 |
SFLU209 |
1.58 |
SHCFLU210 SHCFLU210-30 SHCFLU210-31 SHCFLU210-32 |
1-7/8 1-15/16 2 |
50 |
190 |
157 |
114 |
28 |
20 |
45 |
18 |
57.1 |
19 |
SHC210 SHC210-30 SHC210-31 SHC210-32 |
SFLU210 |
1.62 |
SHCFLU211 SHCFLU211-32 SHCFLU211-34 SHCFLU211-35 |
2 2-1/8 2-3/16 |
55 |
217 |
184 |
128 |
31 |
21 |
48 |
18 |
65.8 |
22.2 |
SHC211 SHC211-32 SHC211-34 SHC211-35 |
SFLU211 |
2.4 |
SHCFLU212 SHCFLU212-36 SHCFLU212-38 SHCFLU212-39 |
2-1/4 2-3/8 2-7/16 |
60 |
237 |
202 |
138 |
34 |
21 |
53 |
18 |
72.2 |
25.4 |
SHC212 SHC212-36 SHC212-38 SHC212-39 |
SFLU212 |
3.2 |
