Product Details:
|
Name: | Flange-Mount Ball Bearing Unit | Mounting Type: | 2-Bolt Flange |
---|---|---|---|
Housing Material: | Stainless Steel 440C, Stainless Steel 420 | Insert Bearings' Material: | Stainless Steel 440C, Stainless Steel 420 |
Locking Device: | Set Screw Locking | Duty Type: | Heavy Duty |
Seal Type: | Contact Seal With Flinger | Lubrication Type: | Relubricatable |
Compliance With Standard: | ISO, JIS, North American Standard | Applications: | Food And Beverage Processing And Packaging, Conveyor Systems, Elevator Systems, Agricultural Machinery |
High Light: | Flange Mount 2 bolt pillow block bearings,2 bolt pillow block bearings Heavy Duty,440c ball bearing unit |

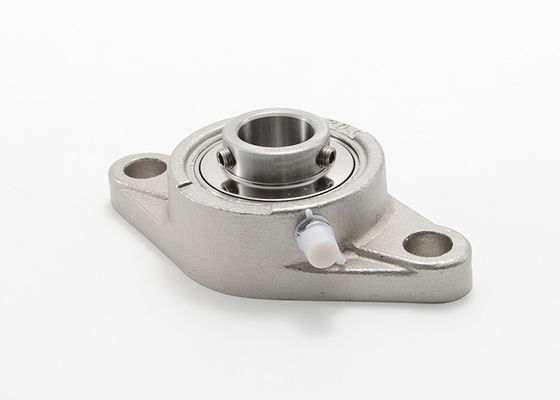

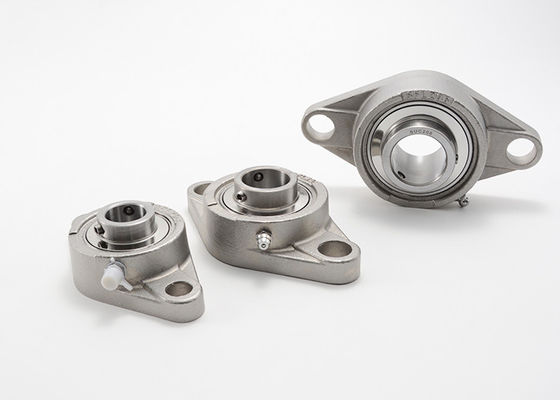

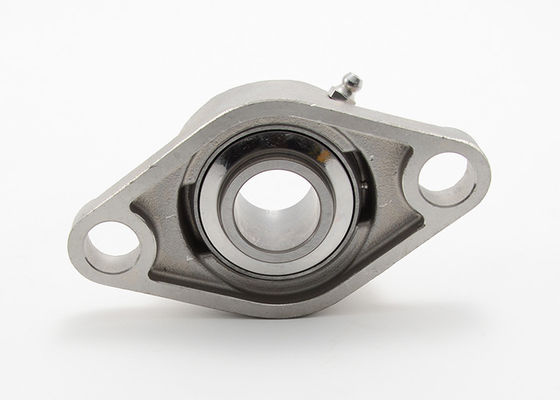

Flange Mount Ball Bearing Unit 2 Bolt Flange Heavy Duty Set Screw Locking SUCFL306
Flange-Mount Ball Bearing Unit - 2-Bolt Flange, Bore size range from 25mm to 140mm, Stainless Housing Material, Heavy Duty, Set Screw Locking, Contact Seal with Flinger Seal
Main Features:
Mainly Applications:
MOUETTE offers more interchange housing material. Housings made of Cast Iron, stainless steel or plastic.
Flange Mount Ball Bearing Unit 2 Bolt Flange Heavy Duty Set Screw Locking SUCFL3 Specifications:
Bearing Unit Part No. |
Bore Dia | Dimension(mm) |
Bearing Part No. |
Housing Part No. |
Net Weight (kg) |
|||||||||
d | a | e |
i |
b |
g |
L |
N |
E |
S |
|||||
in | mm | |||||||||||||
SUCFL305 SUCFL305-14 SUCFL305-15 SUCFL305-16 |
7/8 15/16 1 |
25 | 150 | 113 | 16 | 80 | 13 | 29 | 19 | 39 | 15 |
SUC305 SUC305-14 SUC305-15 SUC305-16 |
SFL305 | 1.52 |
SUCFL306 SUCFL306-18 SUCFL306-19 |
1-1/8 1-3/16 |
30 |
180 |
134 |
18 |
90 |
15 |
32 |
23 |
44 |
17 |
SUC306 SUC306-18 SUC306-19 |
SFL306 |
1.92 |
SUCFL307 SUCFL307-20 SUCFL307-21 SUCFL307-22 |
1-1/4 1-5/16 1-3/8 |
35 | 185 | 141 | 20 | 100 | 16 | 36 | 23 | 49 | 19.0 |
SUC307 SUC307-20 SUC307-21 SUC307-22 |
SFL307 | 2.66 |
SUCFL308 SUCFL308-24 SUCFL308-25 |
1-1/2 1-9/16 |
40 |
200 |
158 |
23 |
112 |
17 |
40 |
23 |
56 |
19.0 |
SUC308 SUC308-24 SUC308-25 |
SFL308 |
3.50 |
SUCFL309 SUCFL309-26 SUCFL309-27 SUCFL309-28 |
1-5/8 1-11/16 1-3/4 |
45 | 230 | 177 | 25 | 125 | 18 | 44 | 25 | 60 | 22 |
SUC309 SUC309-26 SUC309-27 SUC309-28 |
SFL309 | 4.68 |
SUCFL310 SUCFL310-30 SUCFL310-31 |
1 1-7/8 1-15/16 |
50 |
240 |
187 |
28 |
140 |
19 |
48 |
25 |
67 |
22 |
SUC310 SUC310-30 SUC310-31 |
SFL310 |
6.44 |
SUCFL311 SUCFL311-32 SUCFL311-34 SUCFL311-35 |
2 2-1/8 2-3/16 |
55 | 250 | 198 | 30 | 150 | 20 | 52 | 25 | 71 | 25 |
SUC311 SUC311-32 SUC311-34 SUC311-35 |
SFL311 | 7.69 |
SUCFL312 SUCFL312-36 SUCFL312-38 SUCFL312-39 |
2-1/4 2-3/8 2-7/16 |
60 | 270 | 212 | 33 | 160 | 22 | 56 | 31 | 78 | 26 |
SUC312 SUC312-36 SUC312-38 SUC312-39 |
SFL312 | 9.40 |
SUCFL313 SUCFL313-40 |
2-1/2 |
65 | 295 | 240 | 33 | 175 | 25 | 58 | 31 | 78 | 30 |
SUC313 SUC313-40 |
SFL313 | 11.70 |
SUCFL314 SUCFL314-44 |
2-3/4 |
70 | 315 | 250 | 36 | 185 | 28 | 61 | 35 | 81 | 33 |
SUC314 SUC314-44 |
SFL314 | 13.40 |
SUCFL315 SUCFL315-48 |
3 |
75 | 320 | 260 | 39 | 195 | 30 | 66 | 35 | 89 | 32 |
SUC315 SUC315-48 |
SFL315 | 15.40 |
SUCFL316 SUCFL316-50 |
3-1/8 |
80 | 355 | 285 | 38 | 210 | 32 | 68 | 38 | 90 | 34 |
SUC316 SUC316-50 |
SFL316 | 13.75 |
SUCFL317 SUCFL317-52 |
3-1/4 |
85 | 370 | 300 | 44 | 220 | 32 | 74 | 38 | 100 | 40 |
SUC317 SUC317-52 |
SFL317 | 17.20 |
SUCFL318 SUCFL318-56 |
3-1/2 |
90 | 385 | 315 | 44 | 235 | 36 | 76 | 38 | 100 | 40 |
SUC318 SUC318-56 |
SFL318 | 20.10 |
SUCFL319 SUCFL319-60 |
3-3/4 |
95 | 405 | 330 | 59 | 250 | 40 | 94 | 41 | 121 | 41 |
SUC319 SUC319-60 |
SFL319 | 24.75 |
SUCFL320 SUCFL320-64 |
4 |
100 | 440 | 360 | 59 | 270 | 40 | 94 | 44 | 125 | 42 |
SUC320 SUC320-64 |
SFL320 | 27.58 |
SUCFL321 | / | 105 | 440 | 360 | 59 | 270 | 40 | 94 | 44 | 127 | 44 | SUC321 | SFL321 | 27.30 |
SUCFL322 | / | 110 | 470 | 390 | 60 | 300 | 42 | 96 | 44 | 131 | 46 | SUC322 | SFL322 | 34.70 |
SUCFL324 | / | 120 | 520 | 430 | 65 | 330 | 48 | 110 | 47 | 140 | 51 | SUC324 | SFL324 | 48.20 |
SUCFL326 | / | 130 | 550 | 460 | 65 | 360 | 50 | 115 | 47 | 146 | 54 | SUC326 | SFL326 | 61.30 |
SUCFL328 | / | 140 | 600 | 600 | 75 | 400 | 60 | 125 | 51 | 161 | 59 | SUC328 | SFL328 | 82.90 |
