Product Details:
|
| Name: | Stainless Steel Pillow Block Bearing Units | Mounting Method: | Set Screw Locking |
|---|---|---|---|
| Housing Material: | Stainless Steel 440C, Stainless Steel 420 | Insert Bearings' Material: | Stainless Steel 440C, Stainless Steel 420 |
| Other Features: | Wide Inner Ring / Flange 2 Holes Housing | Size Range: | Metric, Bore Diameter From 12mm To 75mm |
| Compliance With Standard: | ISO, JIS, North American Standard | Applications: | Food And Beverage Processing And Packaging, Conveyor Systems, Elevator Systems, Agricultural Machinery |
| High Light: | 440c pillow block bearing unit,420 pillow block bearing unit,metric pillow block bearing 12mm |
||

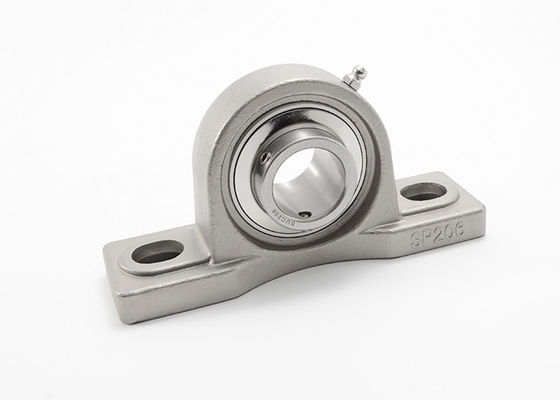

Pillow Block Bearing Units Stainless Steel Set Screw Locking SUCLP203
Because of their versatility and cost-effectiveness, ball bearing units are used in many industrial applications.

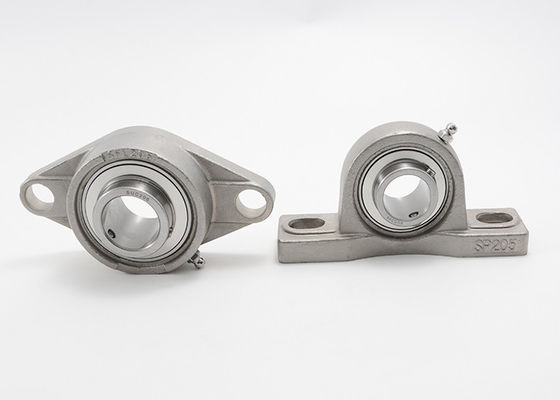

MOUETTE pillow (plummer) block ball bearing units consist of an insert bearing mounted in a housing, which can be bolted to a support surface. Standard unit housing designs include cast iron, composites, pressed steel and stainless steel materials. MOUETTE mainly produced housing and insert bearings in stainless steel; or insert bearings in stainless steel, but housing in plastic material.
In addition, MOUETTE Food Line Stainless Steel Pillow Block Bearing provide hygienic and high-performance bearing unit solutions for the most demanding food and beverage environments.
Stainless Steel Pillow Block Bearing Units Mainly Applications:
Pillow Block Bearing Units Stainless Steel Set Screw Locking SUCLP2 Specifications:
|
Bearing Unit Part No. |
Bore Dia | Dimension(mm) |
Bearing Part No. |
Housing Part No. |
Net Weight (kg) |
||||||||||
| d | h | a | e | b | S1 | S2 | g | W | S | B | |||||
| in | mm | ||||||||||||||
| SUCLP201S SUCLP201-8S SUCLP202S SUCLP202-10S SUCLP203S SUCLP203-11S |
1/2
5/8
11/16 |
12
15
17 |
27 |
121 |
89 |
29 |
12.7 |
16 |
13 |
56 |
10 |
26 |
SUC201S SUC201-8S SUC202S SUC202-10S SUC203S SUC203-11S |
SLP203 |
0.54 |
|
SUCLP201 SUCLP201-8 SUCLP202 SUCLP202-10 SUCLP203 SUCLP203-11 SUCLP204 SUCLP204-12 |
1/2
5/8
11/16
3/4 |
12 15 17 20 |
31.8 |
133 |
98 |
32 |
12.7 |
19 |
13 |
65 |
12.7 |
31 |
SUC201 SUC201-8 SUC202 SUC202-10 SUC203 SUC203-11 SUC204 SUC204-12 |
SLP204 |
0.78 |
|
SUCLP205 SUCLP205-14 SUCLP205-15 SUCLP205-16 |
7/8 15/16 1 |
25 |
33.3 |
140 |
105 |
38 |
12.7 |
19 |
16 |
68 |
14.3 |
34.1 |
SUC205 SUC205-14 SUC205-15 SUC205-16 |
SLP205 |
0.93 |
|
SUCLP206 SUCLP206-17 SUCLP206-18 SUCLP206-19 SUCLP206-20 |
1-1/16 1-1/8 1-3/16 1-1/4 |
30 |
39.7 |
165 |
124 |
41 |
15 |
22 |
17.5 |
81 |
15.9 |
38.1 |
SUC206 SUC206-17 SUC206-18 SUC206-19 SUC206-20 |
SLP206 |
1.27 |
|
SUCLP207 SUCLP207-20 SUCLP207-21 SUCLP207-22 SUCLP207-23 |
1-1/4 1-5/16 1-3/8 1-7/16 |
35 |
46 |
178 |
136 |
48 |
15 |
22 |
19 |
94 |
17.5 |
42.9 |
SUC207 SUC207-20 SUC207-21 SUC207-22 SUC207-23 |
SLP207 |
1.85 |
|
SUCLP208 SUCLP208-24 SUCLP208-25 |
1-1/2 1-9/16 |
40 | 49.2 | 184 | 143 | 51 | 15 | 22 | 21 | 100 | 19.0 | 49.2 |
SUC208 SUC208-24 SUC208-25 |
SLP208 | 2.19 |
|
SUCLP209 SUCLP209-26 SUCLP209-27 SUCLP209-28 |
1-5/8 1-11/16 1-3/4 |
45 |
52.4 |
197 |
152 |
54 |
15 |
25.4 |
21 |
106 |
19.0 |
49.2 |
SUC209 SUC209-26 SUC209-27 SUC209-28 |
SLP209 |
2.50 |
|
SUCLP210 SUCLP210-29 SUCLP210-30 SUCLP210-31 SUCLP210-32 |
1-13/16 1-7/8 1-15/16 2 |
50 |
55.6 |
213 |
165 |
57 |
15 |
25.4 |
22 |
113 |
19.0 |
51.6 |
SUC210 SUC210-29 SUC210-30 SUC210-31 SUC210-32 |
SLP210 |
3.20 |
|
SUCLP211 SUCLP211-32 SUCLP211-33 SUCLP211-34 SUCLP211-35 |
2 2-1/16 2-1/8 2-3/16 |
55 |
61.9 |
235 |
181 |
64 |
19 |
29 |
25.4 |
125 |
22.2 |
55.6 |
SUC211 SUC211-32 SUC211-33 SUC211-34 SUC211-35 |
SLP211 |
4.12 |
|
SUCLP212 SUCLP212-36 SUCLP212-37 SUCLP212-38 SUCLP212-39 |
2-1/4 2-5/16 2-3/8 2-7/16 |
60 |
68.3 |
248 |
194 |
70 |
19 |
29 |
28 |
138 |
25.4 |
65.1 |
SUC212 SUC212-36 SUC212-37 SUC212-38 SUC212-39 |
SLP212 |
5.43 |
|
SUCLP213 SUCLP213-40 SUCLP213-41 |
2-1/2 2-9/16 |
65 | 68.3 | 248 | 194 | 70 | 19 | 29 | 28 | 138 | 25.4 | 65.1 |
SUC213 SUC213-40 SUC213-41 |
SLP213 | 6.10 |
|
SUCLP214 SUCLP214-42 SUCLP214-43 SUCLP214-44 |
2-5/8 2-11/16 2-3/4 |
70 |
82.6 |
298 |
232 |
82 |
21 |
32 |
35 |
167 |
30.2 |
74.6 |
SUC214 SUC214-42 SUC214-43 SUC214-44 |
SLP214 |
7.65 |
|
SUCLP215 SUCLP215-45 SUCLP215-46 SUCLP215-47 SUCLP215-48 |
2-13/16 2-7/8 2-15/16 3 |
75 |
82.6 |
298 |
232 |
82 |
21 |
32 |
35 |
167 |
33.3 |
77.8 |
SUC215 SUC215-45 SUC215-46 SUC215-47 SUC215-48 |
SLP215 |
8.27 |
