Product Details:
|
| Name: | All Stainless Steel Bearing Units | Housing Type: | Tapped-Base Pillow Block |
|---|---|---|---|
| Housing Material: | Stainless Steel 440C, Stainless Steel 420 | Insert Bearings' Material: | Stainless Steel 440C, Stainless Steel 420 |
| Sealing Solution: | Two Nitrile Rubber Contact | Lubrication Method: | Prefilled With Solid Grease |
| Bearing Inner Shape: | Cylindrical Bore Set Screw | Cover Type: | No Cover (available With Plastic Close Cap(CC) Or Open Cap(OC)) |
| Compliance With Standard: | ISO, JIS, North American Standard | Applications: | Food And Beverage Processing And Packaging, Conveyor Systems, Elevator Systems, Agricultural Machinery |
| High Light: | Tapped Base stainless steel pillow block bearings,stainless steel pillow block bearings 440c,pillow block mounted bearing 420 |
||

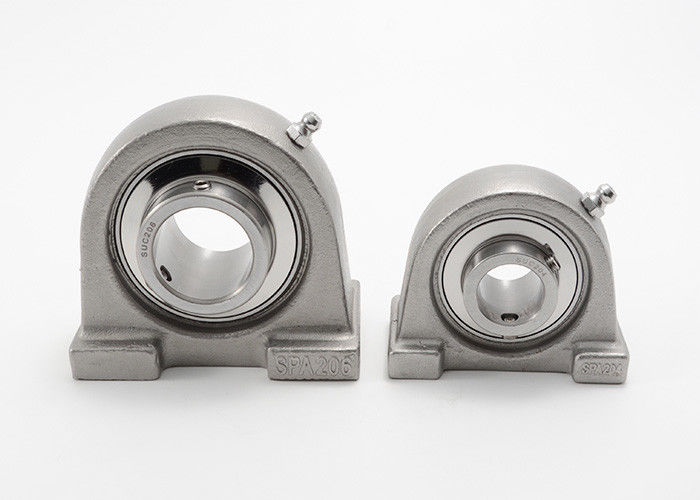

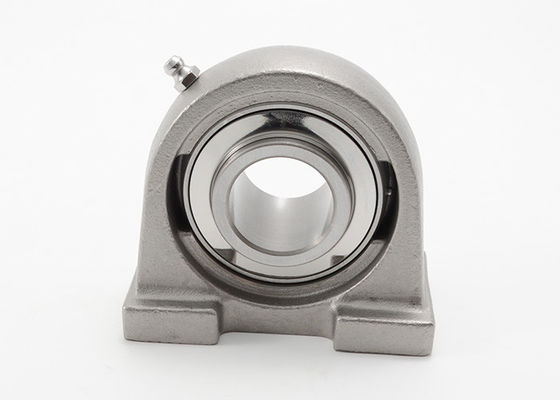

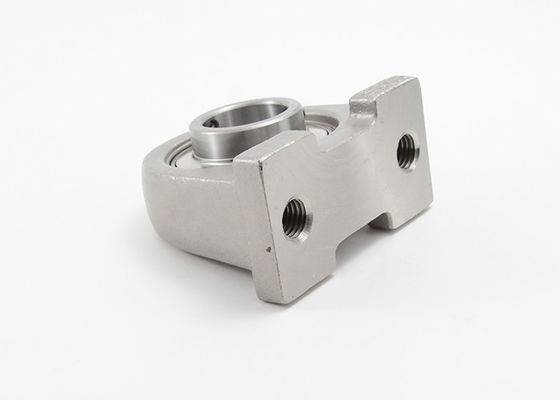

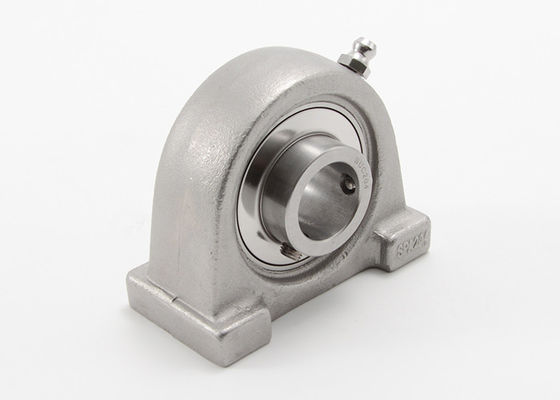

All Stainless Steel Bearing Units SSUCPA2 Tapped Base Pillow Block Ball Bearing Unit
All Stainless Steel Bearing Units, a premium line of stainless steel bearings and bearing units featuring food-grade solid lube with covers. It is designed for a maintenance-free, washdown-resistant product line in food and beverage applications.
Bearing Units Features & Benefits:
1. Food-grade solid lubricant provides permanent bearing lubrication by protecting bearings from washout and preventing undesired grease leakage into food.
2. 100% stainless steel bearings are corrosion-resistant and require no coating, eliminating the potential of flaked coatings contaminating the end product.
3. Silicone seal and slinger combination creates a water-resistant barrier to help prevent contamination.
4. Protective covers for units provide additional protection against contaminants and moisture, while adding additional safety for maintenance personnel.
5. Full-contact nitrile seals creates a water-resistant barrier to help prevent contamination.
Material being used:
Housing: Stainless steel 304, 440, 420
Zerk fittings: Stainless steel 304
Insert bearing: Stainless steel 440, 420
Steel ball:Stainless steel 440, 420
Retainer: Stainless steel 201
Seal: Silicon rubber seal
Lubricant: Food grade grease Mobil FM222
Outer ring with grease groove and holes,at same side of setscrew
With anti-rotation pin at opposite side of setscrew
All Stainless Steel Bearing Units SSUCPA2 Series Specifications:
|
Bearing Unit Part No. |
Bore Dia | Dimension(mm) |
Bearing Part No. |
Housing Part No. |
Net Weight (kg) |
||||||||||
| d | h | a | e | b | g | W | F | t | S | B | |||||
| in | mm | ||||||||||||||
|
SUCPA201 SUCPA201-8 SUCPA202 SUCPA202-10 SUCPA203 SUCPA203-11 |
1/2
5/8
11/16 |
12
15
17
|
30.2 |
76 |
52 |
40 |
11 |
62 |
13 |
M10 |
12.7 |
31 |
SUC201 SUC201-8 SUC202 SUC202-10 SUC203 SUC203-11 |
SPA203 |
0.60 |
|
SUCPA204 SUCPA204-12 |
3/4 |
20
|
30.2 | 76 | 52 | 40 | 11 | 62 | 13 | M10 | 12.7 | 31 |
SUC204 SUC204-12 |
SPA204 | 0.57 |
|
SUCPA205 SUCPA205-14 SUCPA205-15 SUCPA205-16 |
7/8 15/16 1 |
25
|
36.5 |
84 |
56 |
38 |
12 |
72 |
15 |
M10 |
14.3 |
34.1 |
SUC205 SUC205-14 SUC205-15 SUC205-16 |
SPA205 |
0.81 |
|
SUCPA206 SUCPA206-17 SUCPA206-18 SUCPA206-19 SUCPA206-20 |
1-1/16 1-1/8 1-3/16 1-1/4 |
30
|
42.9 |
94 |
66 |
50 |
12 |
84 |
18 |
M14 |
15.9 |
38.1 |
SUC206 SUC206-17 SUC206-18 SUC206-19 SUC206-20 |
SPA206 |
1.17 |
|
SUCPA207 SUCPA207-20 SUCPA207-21 SUCPA207-22 SUCPA207-23 |
1-1/4 1-5/16 1-3/8 1-7/16 |
35
|
47.6 |
109 |
80 |
55 |
13 |
95 |
20 |
M14 |
17.5 |
42.9 |
SUC207 SUC207-20 SUC207-21 SUC207-22 SUC207-23 |
SPA207 |
1.65 |
|
SUCPA208 SUCPA208-24 SUCPA208-25 |
1-1/2 1-9/16 |
40
|
49.2 |
116 |
84 |
58 |
13 |
100 |
20 |
M14 |
19.0 |
49.2 |
SUC208 SUC208-24 SUC208-25 |
SPA208 |
1.90 |
|
SUCPA209 SUCPA209-26 SUCPA209-27 SUCPA209-28 |
1-5/8 1-11/16 1-3/4 |
45
|
54.2 |
120 |
90 |
60 |
13 |
108 |
25 |
M14 |
19.0 |
49.2 |
SUC209 SUC209-26 SUC209-27 SUC209-28 |
SPA209 |
2.17 |
|
SUCPA210 SUCPA210-29 SUCPA210-30 SUCPA210-31 SUCPA210-32 |
1-13/16 1-7/8 1-15/16 2 |
50
|
57.2 |
130 |
94 |
64 |
14 |
116 |
25 |
M16 |
19.0 |
51.6 |
SUC210 SUC210-29 SUC210-30 SUC210-31 SUC210-32 |
SPA210 |
2.73 |
|
SUCPA211 SUCPA211-32 SUCPA211-33 SUCPA211-34 SUCPA211-35 |
2 2-1/16 2-1/8 2-3/16 |
55
|
63.5 |
140 |
104 |
66 |
14 |
125 |
25 |
M16 |
22.2 |
55.6 |
SUC211 SUC211-32 SUC211-33 SUC211-34 SUC211-35 |
SPA211 |
3.37 |
|
SUCPA212 SUCPA212-36 SUCPA212-37 SUCPA212-38 SUCPA212-39 |
2-1/4 2-5/16 2-3/8 2-7/16 |
60
|
69.9 |
150 |
114 |
68 |
15 |
138 |
25 |
M16 |
25.4 |
65.1 |
SUC212 SUC212-36 SUC212-37 SUC212-38 SUC212-39 |
SPA212 |
4.37 |
|
SUCPA213 SUCPA213-40 SUCPA213-41 |
2-1/2 2-9/16 |
65
|
76.2 |
160 |
124 |
70 |
15 |
150 |
25 |
M16 |
25.4 |
65.1 |
SUC213 SUC213-40 SUC213-41 |
SPA213 |
5.36 |
Notes:
1. Upon request,available with plastic close cap(CC) or open cap(OC) at one end. Ordering example SSUCPA204-12 CC.
2. Lubricated with food grade grease.
