Product Details:
|
| Name: | All Stainless Steel Bearing Units | Item Number: | SSUCF204A~SSUCF212A |
|---|---|---|---|
| Housing Material: | Stainless Steel | Insert Bearings' Material: | Stainless Steel |
| Shaft Fastening: | Grub Screws | Housing Type: | Flange With 4 Holes |
| Compliance With Standard: | ISO, JIS, North American Standard | Applications: | Food And Beverage Processing And Packaging, Conveyor Systems, Elevator Systems, Agricultural Machinery |
| High Light: | SUCF210 pillow block ball bearing units,pillow block ball bearing units stainless steel,pillow block ball bearing 4 hole |
||

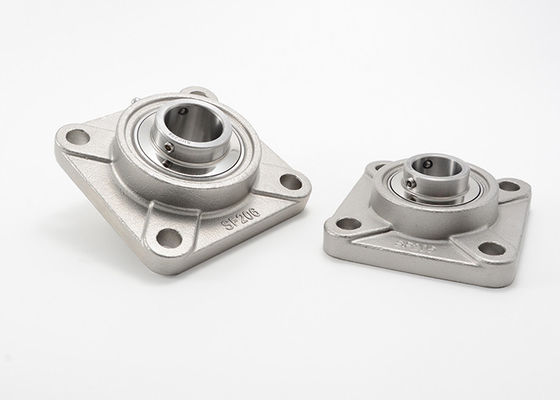

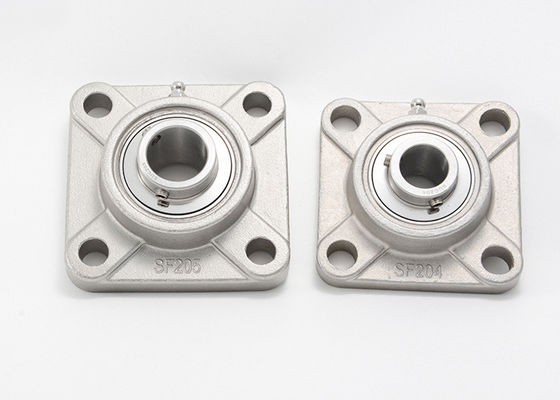

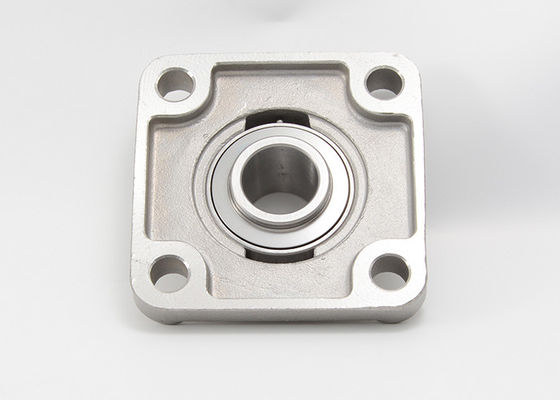

All Stainless Steel Bearing Units Insert Ball Bearing With Socket Set Screws SUCF210
Special feature of this series:
Flanged housing units of the series SSUCF2 (stainless steel) consist of the housing bearing made of stainless steel F2 (4-hole) and the already installed bearing insert SSUC2. The design as a 4-hole flange bearing allows installation in a variety of applications and is suitable for very high radial loads. The housing is made of stainless steel and is therefore hygienic and corrosion-resistant. The bearing insert made of stainless steel is also corrosion-resistant and has an extended inner ring with grub screws for mounting the inner ring on a shaft. Static misalignments can be compensated up to an angle of 2°.
Key Features:
Outer ring with grease groove and holes,at same side of setscrew
With anti-rotation pin at opposite side of setscrew
Plastic close cap(CC) or open cap(OC) is available
Material being used for this stainless steel bearing units SUCF2 series:
| Description | Material |
| Bearing Housing Material | Stainless Steel 440, Stainless Steel 420, Stainless steel 304 |
| Zerk fittings | Stainless steel 304 |
| Insert bearing | Stainless steel 440, Stainless Steel 420, Stainless steel 304 |
| Steel ball | Stainless steel 440, Stainless Steel 420, Stainless steel 304 |
| Retainer | Stainless steel 201 |
| Seal | Silicon rubber seal |
| Lubricant | Food grade grease |
Mainly Applications:
MOUETTE also offers plastic housings with bearing inserts made of stainless steel, and pressed steel housed units.
All Stainless Steel Bearing Units SUCF2 Series Specifications:
|
Bearing Unit Part No. |
Bore Dia | Dimension(mm) |
Bearing Part No. |
Housing Part No. |
Weight (kg) |
||||||||
| d | a | e |
i |
g |
L |
N |
E |
S |
|||||
| in | mm | ||||||||||||
| SUCF201 SUCF201-8 SUCF202 SUCF202-10 SUCF203 SUCF203-11 |
1/2
5/8
11/16 |
12 15 17 |
86 |
64 |
15 |
11 |
25.5 |
12 |
33.3 |
12.7 |
SUC201 SUC201-8 SUC202 SUC202-10 SUC203 SUC203-11 |
SF203 |
1.00 |
|
SUCF204 SUCF204-12 |
3/4 |
20 | 86 | 64 | 15 | 12 | 25.5 | 12 | 33.3 | 12.7 |
SUC204 SUC204-12 |
SF204 | 0.95 |
| SUCF205 SUCF205-14 SUCF205-15 SUCF205-16 |
7/8 15/16 1 |
25 |
95 |
70 |
16 |
14 |
27 |
12 |
35.8 |
14.3 |
SUC205 SUC205-14 SUC205-15 SUC205-16 |
SF205 |
1.20 |
|
SUCF206 SUCF206-17 SUCF206-18 SUCF206-19 SUCF206-20 |
1-1/16 1-1/8 1-3/16 1-1/4 |
30 |
108 |
83 |
18 |
14.3 |
31 |
12 |
40.2 |
15.9 |
SUC206 SUC206-17 SUC206-18 SUC206-19 SUC206-20 |
SF206 |
1.89 |
|
SUCF207 SUCF207-20 SUCF207-21 SUCF207-22 SUCF207-23 |
1-1/4 1-5/16 1-3/8 1-7/16 |
35 |
117 |
92 |
19 |
15.5 |
34 |
14 |
44.4 |
17.5 |
SUC207 SUC207-20 SUC207-21 SUC207-22 SUC207-23 |
SF207 |
2.39 |
|
SUCF208 SUCF208-24 SUCF208-25 |
1-1/2 1-9/16 |
40 | 130 | 102 | 21 | 15.5 | 36 | 16 | 51.2 | 19.0 |
SUC208 SUC208-24 SUC208-25 |
SF208 | 2.79 |
|
SUCF209 SUCF209-26 SUCF209-27 SUCF209-28 |
1-5/8 1-11/16 1-3/4 |
45 |
137 |
105 |
22 |
17.5 |
38 |
16 |
52.2 |
19.0 |
SUC209 SUC209-26 SUC209-27 SUC209-28 |
SF209 |
3.18 |
|
SUCF210 SUCF210-29 SUCF210-30 SUCF210-31 SUCF210-32 |
1-13/16 1-7/8 1-15/16 2 |
50 |
143 |
111 |
22 |
17.5 |
40 |
16 |
54.6 |
19.0 |
SUC210 SUC210-29 SUC210-30 SUC210-31 SUC210-32 |
SF210 |
3.68 |
|
SUCF211 SUCF211-32 SUCF211-33 SUCF211-34 SUCF211-35 |
2 2-1/16 2-1/8 2-3/16 |
55 |
162 |
130 |
25 |
19.5 |
43 |
19 |
58.4 |
22.2 |
SUC211 SUC211-32 SUC211-33 SUC211-34 SUC211-35 |
SF211 |
3.40 |
|
SUCF212 SUCF212-36 SUCF212-37 SUCF212-38 SUCF212-39 |
2-1/4 2-5/16 2-3/8 2-7/16 |
60 |
175 |
143 |
29 |
19.5 |
48 |
19 |
68.7 |
25.4 |
SUC212 SUC212-36 SUC212-37 SUC212-38 SUC212-39 |
SF212 |
4.17 |
|
SUCF213 SUCF213-40 SUCF213-41 |
2-1/2 2-9/16 |
65 | 187 | 149 | 30 | 22 | 50 | 19 | 69.7 | 25.4 |
SUC213 SUC213-40 SUC213-41 |
SF213 | 5.32 |
|
SUCF214 SUCF214-42 SUCF214-43 SUCF214-44 |
2-5/8 2-11/16 2-3/4 |
70 |
193 |
152 |
31 |
23 |
54 |
19 |
75.4 |
30.2 |
SUC214 SUC214-42 SUC214-43 SUC214-44 |
SF214 |
5.92 |
| SUCF215 SUCF215-45 SUCF215-46 SUCF215-47 SUCF215-48 |
2-13/16 2-7/8 2-15/16 3 |
75 |
200 |
159 |
34 |
23 |
56 |
19 |
78.5 |
33.3 |
SUC215 SUC215-45 SUC215-46 SUC215-47 SUC215-48 |
SF215 |
6.65 |
|
SUCF216 SUCF216-50 |
3-1/8 |
80 | 208 | 165 | 34 | 24 | 58 | 23 | 83.3 | 33.3 |
SUC216 SUC216-50 |
SF216 | 7.89 |
| SUCF217 SUCF217-52 |
3-1/4 |
85 | 220 | 175 | 36 | 25 | 63 | 23 | 87.6 | 34.1 | SUC217 SUC217-52 | SF217 | 9.18 |
|
SUCF218 SUCF218-56 |
3-1/2 |
90 | 235 | 187 | 40 | 25 | 68 | 23 | 96.3 | 39.7 |
SUC218 SUC218-56 |
SF218 | 11.20 |
Notes:
1. Upon request,available with plastic close cap(CC) or open cap(OC) at one end. Ordering example SSUCF204-12 CC.
2. Back seal is available when mounted with SSB inserts.
3. Hand polishing surface housing available upon request. Ordering example SSUCF204-12 HP.
4. Lubricated with food grade grease.
