Product Details:
|
| Name: | 4 Holes Flange Housing Stainless Steel Bearing Units | Shaft Fastening: | Grub Screws |
|---|---|---|---|
| Housing Material: | Stainless Steel 440C, Stainless Steel 420 | Insert Bearings' Material: | Stainless Steel 440C, Stainless Steel 420 |
| Housing Type: | Flange Housing | Number Of Mounting Holes: | 4 Holes |
| Lubricant: | Food Grade Grease | Base Type: | Both Hollow Base And Solid Base Available |
| Applications: | Food And Beverage Processing And Packaging, Conveyor Systems, Elevator Systems, Agricultural Machinery | Compliance With Standard: | ISO, JIS, North American Standard |
| High Light: | Grub Screws metric pillow block bearings,stainless steel 4 bolt pillow block,metric pillow block bearings flange mounted |
||

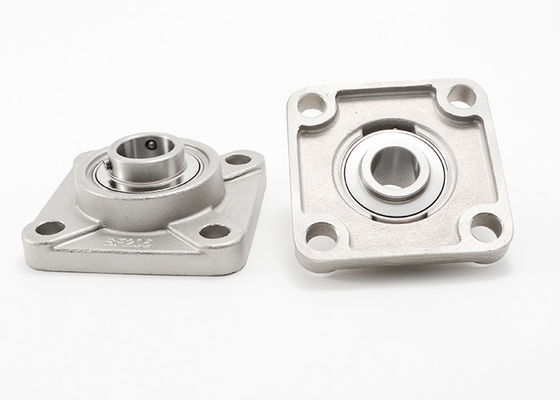

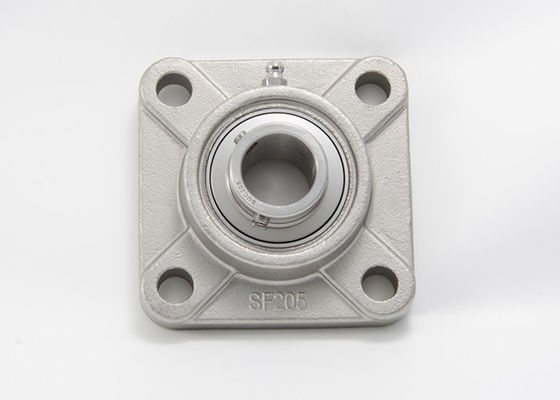

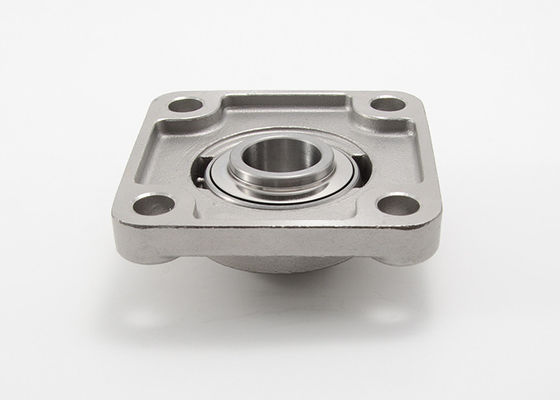

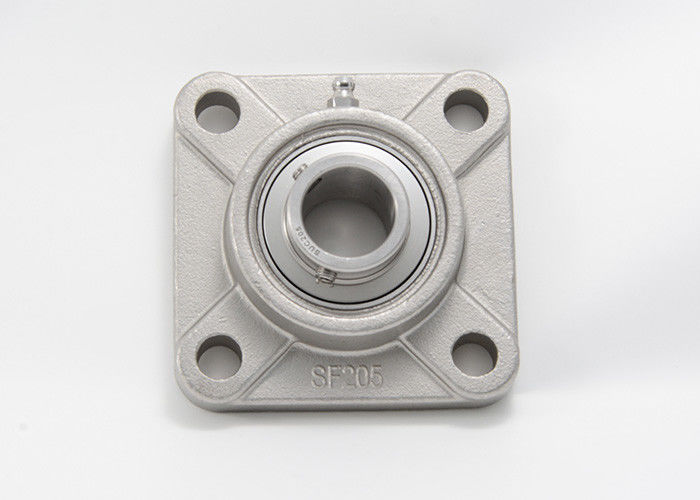

Stainless Steel Bearing Units Flange Housing Mounted Ball Bearing 4 holes SUCF308
Stainless steel mounted ball bearing units are primarily intended for use in areas where moisture or aggressive media seriously degrade the service life of conventional ball bearing units made of cast iron and bearing inserts made of chrome steel. They are particularly suitable for machines in the food,pharmaceutical,and chemical industries.Furthermore they also represent an ideal solution where frequent cleaning with water or chemical agents is necessary or the bearings are used outdoors.
Advantage: Best performance corrosion resistance,Sanitation safety.Long term costs saving.
Main features:
- Housing made of high quality 304 stainless steel, solid base or hollow base.
- Smooth plain surface or hand polish surface.
- Insert ball bearings made of high quality 440 or 420 stainless steel.
- Insert ball bearings with wider or narrow inner ring,locking style available with setscrew locking, eccentric collar locking,concentric collar locking and adapter sleeve locking.
- Factory pre-lubed with food grade grease or industry grease.
- Available with end caps made of stainless steel or plastic,open or close.
- NBR back seals available for pillow block and flange types.
Mainly Applications:
Stainless Steel Bearing Units 4 holes Flange Housing SUCF3 Series Specifications:
|
Bearing Unit Part No. |
Bore Dia | Dimension(mm) |
Bearing Part No. |
Housing Part No. |
Net Weight (kg) |
||||||||
| d | a | e |
i |
g |
L |
N |
E |
S |
|||||
| in | mm | ||||||||||||
| SUCF305 SUCF305-14 SUCF305-15 SUCF305-16 |
7/8 15/16 1 |
25 |
110 |
80 |
16 |
13 |
29 |
16 |
39 |
15 |
SUC305 SUC305-14 SUC305-15 SUC305-16 |
SF305 |
1.52 |
|
SUCF306 SUCF306-18 SUCF306-19 |
1-1/8 1-3/16 |
30 |
125 |
95 |
18 |
15 |
32 |
16 |
44 |
17 |
SUC306 SUC306-18 SUC306-19 |
SF306 |
1.92 |
|
SUCF307 SUCF307-20 SUCF307-21 SUCF307-22 |
1-1/4 1-5/16 1-3/8 |
35 |
135 |
100 |
20 |
16 |
36 |
19 |
49 |
19.0 |
SUC307 SUC307-20 SUC307-21 SUC307-22 |
SF307 |
2.66 |
| SUCF308 SUCF308-24 SUCF308-25 |
1-1/2 1-9/16 |
40 |
150 |
112 |
23 |
17 |
40 |
19 |
56 |
19.0 |
SUC308 SUC308-24 SUC308-25 |
SF308 |
3.50 |
|
SUCF309 SUCF309-26 SUCF309-27 SUCF309-28 |
1-5/8 1-11/16 1-3/4 |
45 |
160 |
125 |
25 |
18 |
44 |
19 |
60 |
22 |
SUC309 SUC309-26 SUC309-27 SUC309-28 |
SF309 |
4.68 |
| SUCF310 SUCF310-30 SUCF310-31 |
1-7/8 1-15/16 |
50 |
175 |
132 |
28 |
19 |
48 |
23 |
67 |
22 |
SUC310 SUC310-30 SUC310-31 |
SF310 |
6.44 |
|
SUCF311 SUCF311-32 SUCF311-34 SUCF311-35 |
2 2-1/8 2-3/16 |
55 |
185 |
140 |
30 |
20 |
52 |
23 |
71 |
25 |
SUC311 SUC311-32 SUC311-34 SUC311-35 |
SF311 |
7.69 |
|
SUCF312 SUCF312-36 SUCF312-38 SUCF312-39 |
2-1/4 2-3/8 2-7/16 |
60 |
195 |
150 |
33 |
22 |
56 |
23 |
78 |
26 |
SUC312 SUC312-36 SUC312-38 SUC312-39 |
SF312 |
9.40 |
|
SUCF313 SUCF313-40 |
2-1/2 |
65 | 208 | 166 | 33 | 22 | 58 | 23 | 78 | 30 |
SUC313 SUC313-40 |
SF313 | 11.70 |
|
SUCF314 SUCF314-44 |
2-3/4 |
70 | 226 | 178 | 36 | 25 | 61 | 25 | 81 | 33 |
SUC314 SUC314-44 |
SF314 | 13.40 |
|
SUCF315 SUCF315-48 |
3 |
75 | 236 | 184 | 39 | 25 | 66 | 25 | 89 | 32 |
SUC315 SUC315-48 |
SF315 | 15.40 |
|
SUCF316 SUCF316-50 |
3-1/8 |
80 | 250 | 196 | 38 | 27 | 68 | 31 | 90 | 34 |
SUC316 SUC316-50 |
SF316 | 14.75 |
|
SUCF317 SUCF317-52 |
3-1/4 |
85 | 260 | 204 | 44 | 27 | 74 | 31 | 100 | 40 |
SUC317 SUC317-52 |
SF317 | 17.70 |
|
SUCF318 SUCF318-56 |
3-1/2 |
90 | 280 | 216 | 44 | 30 | 76 | 35 | 100 | 40 |
SUC318 SUC318-56 |
SF318 | 21.10 |
|
SUCF319 SUCF319-60 |
3-3/4 |
95 | 290 | 228 | 59 | 30 | 94 | 35 | 121 | 41 |
SUC319 SUC319-60 |
SF319 | 23.25 |
|
SUCF320 SUCF320-64 |
4 |
100 | 310 | 242 | 59 | 32 | 94 | 38 | 125 | 42 |
SUC320 SUC320-64 |
SF320 | 26.28 |
| SUCF321 | / | 105 | 310 | 242 | 59 | 32 | 94 | 38 | 127 | 44 | SUC321 | SF321 | 27.3 |
| SUCF322 | / | 110 | 340 | 266 | 60 | 35 | 96 | 41 | 131 | 46 | SUC322 | SF322 | 37.5 |
| SUCF324 | / | 120 | 370 | 290 | 65 | 40 | 110 | 41 | 140 | 51 | SUC324 | SF324 | 48.7 |
| SUCF326 | / | 130 | 410 | 320 | 65 | 45 | 115 | 41 | 146 | 54 | SUC326 | SF326 | 62.3 |
| SUCF328 | / | 140 | 450 | 350 | 75 | 55 | 125 | 41 | 161 | 59 | SUC328 | SF328 | 89.7 |
