Product Details:
|
| Name: | Flange Stainless Steel Bearing Units | Mounting Type: | 2-Bolt Flange |
|---|---|---|---|
| Housing Material: | Stainless Steel 440C, Stainless Steel 420 | Insert Bearings' Material: | Stainless Steel 440C, Stainless Steel 420 |
| Duty Type: | Standard Duty | Locking Device: | Set Screw |
| Expansion Type: | Non-Expansion Bearing (Fixed) | Lubrication Type: | Relubricatable |
| Standard: | ISO, JIS, North American Standard | Applications: | Food And Beverage Processing And Packaging, Conveyor Systems, Elevator Systems, Agricultural Machinery |
| High Light: | 2 bore pillow block bearing 420,2 bore pillow block bearing 440c,stainless steel pillow block bearing Non Expansion |
||

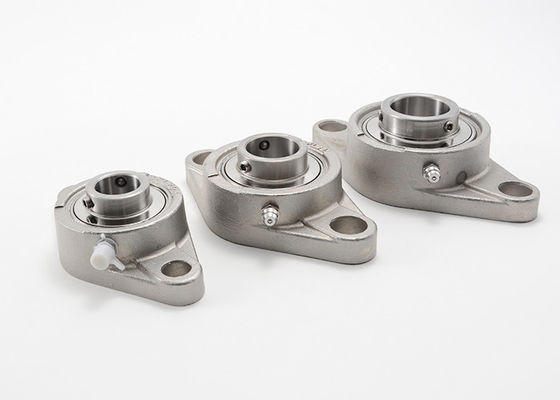

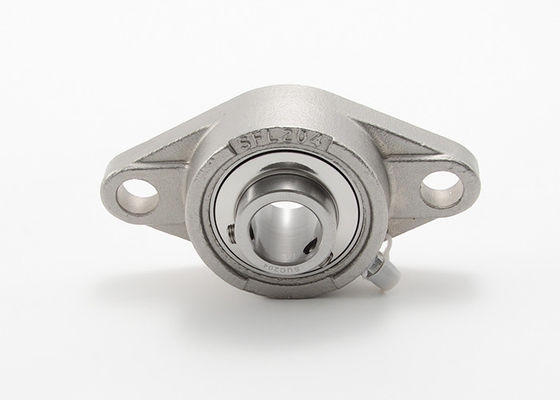

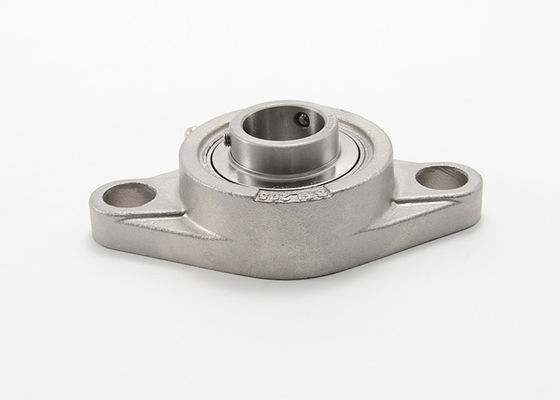

Stainless Steel Bearing Units Flange 2 Bolt Bearing SUCFT207 With Wide Inner Ring
MOUETTE stainless steel ball bearing units are particularly suitable for machines in the food,pharmaceutical,and chemical industries.Furthermore they also represent an ideal solution where frequent cleaning with water or chemical agents is necessary or the bearings are used outdoors.
These Stainless steel ball bearing units consist of an insert bearing mounted in a housing, which can be bolted to a support surface. Standard unit housing designs include cast iron, composites, pressed steel and stainless steel materials. MOUETTE mainly produced housing and insert bearings in stainless steel; or insert bearings in stainless steel, but housing in plastic material.
Mainly Applications:
2-Bolt Flange Stainless Steel Bearing Units SUCFT2 Series Specifications:
|
Bearing Unit Part No. |
Bore Dia | Dimension(mm) |
Bearing Part No. |
Housing Part No. |
Net Weight (kg) |
|||||||||
| d | a | e |
i |
b |
g |
L |
N |
E |
S |
|||||
| in | mm | |||||||||||||
|
SUCFT201S SUCFT201-8S SUCFT202S SUCFT202-10S SUCFT203S SUCFT203-11S |
1/2
5/8
11/16 |
12
15
17 |
99 | 76.2 | 15 | 55 | 12 | 25 | 10.5 | 31 | 10 |
SUC201S SUC201-8S SUC202S SUC202-10S SUC203S SUC203-11S |
SFT203 | 0.48 |
|
SUCFT201 SUCFT201-8 SUCFT202 SUCFT202-10 SUCFT203 SUCFT203-11 SUCFT204 SUCFT204-12 |
1/2
5/8
11/16
3/4 |
12
15
17
20 |
113 | 89.7 | 15 | 60.3 | 12 | 25.5 | 10.5 | 33.3 | 12.7 |
SUC201 SUC201-8 SUC202 SUC202-10 SUC203 SUC203-11 SUC204 SUC204-12 |
SFT204 | 0.50 |
|
SUCFT205 SUCFT205-14 SUCFT205-15 SUCFT205-16 |
7/8 15/16 1 |
25
|
124 |
98.8 |
16 |
68 |
13.5 |
27 |
12.5 |
35.8 |
14.3 |
SUC205 SUC205-14 SUC205-15 SUC205-16 |
SFT205 |
0.80 |
|
SUCFT206 SUCFT206-17 SUCFT206-18 SUCFT206-19 SUCFT206-20 |
1-1/16 1-1/8 1-3/16 1-1/4 |
30 | 141 | 116.7 | 18 | 79 | 13.5 | 31 | 12.5 | 40.2 | 15.9 |
SUC206 SUC206-17 SUC206-18 SUC206-19 SUC206-20 |
SFT206 | 1.10 |
|
SUCFT207 SUCFT207-20 SUCFT207-21 SUCFT207-22 SUCFT207-23 |
1-1/4 1-5/16 1-3/8 1-7/16 |
35 | 155 | 130 | 19 | 89 | 15 | 34 | 14 | 44.4 | 17.5 |
SUC207 SUC207-20 SUC207-21 SUC207-22 SUC207-23 |
SFT207 | 1.62 |
|
SUCFT208 SUCFT208-24 SUCFT208-25 |
1-1/2 1-9/16 |
40 |
171 |
143.7 |
21 |
99 |
15 |
36 |
14 |
51.2 |
19.0 |
SUC208 SUC208-24 SUC208-25 |
SFT208 |
1.81 |
|
SUCFT209 SUCFT209-26 SUCFT209-27 SUCFT209-28 |
1-5/8 1-11/16 1-3/4 |
45 |
179 |
148.4 |
22 |
107 |
15 |
38 |
16 |
52.2 |
19.0 |
SUC209 SUC209-26 SUC209-27 SUC209-28 |
SFT209 |
2.05 |
|
SUCFT210 SUCFT210-29 SUCFT210-30 SUCFT210-31 SUCFT210-32 |
1-13/16 1-7/8 1-15/16 2 |
50 |
189 |
157 |
22 |
115 |
15 |
39 |
16 |
54.6 |
19.0 |
SUC210 SUC210-29 SUC210-30 SUC210-31 SUC210-32 |
SFT210 |
2.23 |
|
SUCFT211 SUCFT211-32 SUCFT211-33 SUCFT211-34 SUCFT211-35 |
2 2-1/16 2-1/8 2-3/16 |
55 |
217 |
184 |
25 |
133 |
19 |
44 |
19 |
58.4 |
22.2 |
SUC211 SUC211-32 SUC211-33 SUC211-34 SUC211-35 |
SFT211 |
3.32 |
|
SUCFT212 SUCFT212-36 SUCFT212-37 SUCFT212-38 SUCFT212-39 |
2-1/4 2-5/6 2-3/8 2-7/16 |
60 | 236 | 202 | 29 | 140 | 20 | 48 | 23 | 68.7 | 25.4 |
SUC212 SUC212-36 SUC212-37 SUC212-38 SUC212-39 |
SFT212 | 4.1 |
