Product Details:
|
| Name: | Stainless Steel Round Flange Bearing Units | Housing Type: | Round Flange, With 4 Holes |
|---|---|---|---|
| Housing Material: | Stainless Steel 440C, Stainless Steel 420 | Insert Bearings' Material: | Stainless Steel 440C, Stainless Steel 420 |
| Housing Base Type: | Solid Base / Hollow Base | Size Range: | Metric, Bore Diameter From 25mm To 100mm |
| Grease: | Industrial Grease / Food Grade Grease | Number Of Mounting Holes: | 4 |
| Applications: | Food And Beverage Processing And Packaging, Conveyor Systems, Elevator Systems, Agricultural Machinery | Compliance With Standard: | ISO, JIS, North American Standard |
| High Light: | 4 holes round flange bearing housing,metric pillow block bearing 25mm,metric pillow block bearing 100mm |
||
Round Flange Bearing Units 4 Holes SUCFCX06 Stainless Steel Pillow Block Bearing

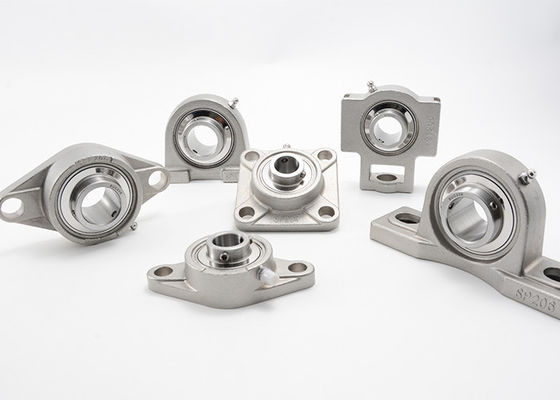

Ball bearing units consist of an insert bearing mounted in a housing. An insert bearing is a deep groove ball bearing with a sphered (convex) outside surface and an extended inner ring that includes a mechanism to lock the unit onto the shaft. The housings have a correspondingly sphered but concave bore.
MOUETTE mainly produced housing and insert bearings in stainless steel; or insert bearings in stainless steel, but housing in thermoplastic(PBT) material. These high-performance bearing unit are solutions for the most demanding food and beverage environments.
Mainly Applications:
4 Holes Round Flange Bearing Units Pillow Block Bearing SUCFCX00 series Specifications:
|
Bearing Unit Part No. |
Bore Dia | Dimension(mm) |
Net Weight (kg) |
|||||||||||
| d | a | p | e |
i |
f |
N |
g | j |
k |
Bi |
S |
|||
| in | mm | |||||||||||||
| SUCFCX05 SUCFCX05-14 SUCFCX05-15 SUCFCX05-16 |
7/8 15/16 1 |
25
|
111 |
92 |
65 |
10 |
76.2 |
9.5 |
24 |
6 |
9.5 |
38.1 |
15.9 |
1.06 |
|
SUCFCX06 SUCFCX06-17 SUCFCX06-18 SUCFCX06-19 SUCFCX06-20 |
1-1/8 1-3/16 1-1/4 |
30
|
127 |
105 |
74.2 |
8 |
85.7 |
12 |
22.5 |
9.5 |
9.5 |
42.9 |
17.5 |
1.46 |
|
SUCFCX07 SUCFCX07-20 SUCFCX07-21 SUCFCX07-22 SUCFCX07-23 |
1-1/4 1-5/16 1-3/8 1-7/16 |
35
|
133 |
111 |
78.5 |
9 |
92.1 |
12 |
26 |
11 |
11 |
49.2 |
19.0 |
1.88 |
|
SUCFCX08 SUCFCX08-24 SUCFCX08-25 |
1-1/2 1-9/16 |
40
|
133 | 111 | 78.5 | 9 | 92.1 | 12 | 26 | 11 | 11 | 49.2 | 19.0 | 1.85 |
|
SUCFCX09 SUCFCX09-26 SUCFCX09-27 SUCFCX09-28 |
1-5/8 1-11/16 1-3/4 |
45
|
155 |
130 |
91.9 |
8 |
108 |
14 |
25 |
12 |
11 |
51.6 |
19.0 |
2.73 |
|
SUCFCX10 SUCFCX10-29 SUCFCX10-30 SUCFCX10-31 SUCFCX10-32 |
1-13/16 1-7/8 1-15/16 2 |
50
|
162 |
136 |
96.2 |
7 |
114.3 |
14 |
25 |
16 |
11 |
55.6 |
22.2 |
3.13 |
|
SUCFCX11 SUCFCX11-32 SUCFCX11-33 SUCFCX11-34 SUCFCX11-35 |
2 2-1/16 2-1/8 2-3/16 |
55
|
180 |
152 |
107.5 |
4 |
127 |
16 |
26 |
22 |
13 |
65.1 |
25.4 |
4.23 |
|
SUCFCX12 SUCFCX12-36 SUCFCX12-37 SUCFCX12-38 SUCFCX12-39 |
2-1/4 2-5/16 2-3/8 2-7/16 |
60
|
194 |
165 |
116.7 |
11 |
139.7 |
16 |
33 |
20 |
14 |
65.1 |
25.4 |
5.30 |
|
SUCFCX13 SUCFCX13-40 SUCFCX13-41 |
2-1/2 2-9/16 |
65
|
194 | 165 | 116.7 |
11 |
139.7 | 16 | 33 | 20 |
14 |
74.6 | 30.2 | 5.48 |
|
SUCFCX14 SUCFCX14-42 SUCFCX14-43 SUCFCX14-44 |
2-5/8 2-11/16 2-3/4 |
70
|
222 |
190 |
134.3 |
14 |
161.9 |
19 |
36 |
20 |
14 |
77.8 |
33.3 |
7.22 |
|
SUCFCX15 SUCFCX15-45 SUCFCX15-46 SUCFCX15-47 SUCFCX15-48 |
2-13/16 2-7/8 2-15/16 3 |
75
|
222 |
190 |
134.3 |
12 |
161.9 |
19 |
35 |
22 |
16 |
82.6 |
33.3 |
7.92 |
|
SUCFCX16 SUCFCX16-50 |
3-1/8 |
80 |
260 | 219 | 154.8 | 10 | 187.3 | 23 | 36 | 25 | 19 | 85.7 | 34.1 | 11.32 |
|
SUCFCX17 SUCFCX17-52 |
3-1/4 |
85 | 260 | 219 | 154.8 | 10 | 187.3 | 23 | 36 | 25 | 19 | 96 | 39.7 | 11.95 |
|
SUCFCX18 SUCFCX18-56 |
3-1/2 |
90 | 260 | 219 | 154.8 | 12 | 187.3 | 23 | 43 | 28 | 19 | 104 | 42.9 | 12.09 |
|
SUCFCX20 SUCFCX20-64 |
4 |
100 | 276 | 238 | 168.3 | 22 | 206.4 | 23 | 66 | 28 | 22 | 117.5 | 49.2 | 16.25 |
|
Bearing Unit Part No. |
Bore Dia |
Bearing Part No. |
Housing Part No. |
Net Weight (kg) |
|
| d | |||||
| in | mm | ||||
| SUCFCX05 SUCFCX05-14 SUCFCX05-15 SUCFCX05-16 |
7/8 15/16 1 |
25 | SUCX05 SUCX05-14 SUCX05-15 SUCX05-16 |
SFCX05 |
1.06 |
|
SUCFCX06 SUCFCX06-17 SUCFCX06-18 SUCFCX06-19 SUCFCX06-20 |
1-1/8 1-3/16 1-1/4 |
30 |
SUCX06 SUCX06-17 SUCX06-18 SUCX06-19 SUCX06-20 |
SFCX06 |
1.46 |
|
SUCFCX07 SUCFCX07-20 SUCFCX07-21 SUCFCX07-22 SUCFCX07-23 |
1-1/4 1-5/16 1-3/8 1-7/16 |
35 |
SUCX07 SUCX07-20 SUCX07-21 SUCX07-22 SUCX07-23 |
SFCX07 |
1.88 |
|
SUCFCX08 SUCFCX08-24 SUCFCX08-25 |
1-1/2 1-9/16 |
40 |
SUCX08 SUCX08-24 SUCX08-25 |
SFCX08 | 1.85 |
|
SUCFCX09 SUCFCX09-26 SUCFCX09-27 SUCFCX09-28 |
1-5/8 1-11/16 1-3/4 |
45 |
SUCX09 SUCX09-26 SUCX09-27 SUCX09-28 |
SFCX09 |
2.73 |
|
SUCFCX10 SUCFCX10-29 SUCFCX10-30 SUCFCX10-31 SUCFCX10-32 |
1-13/16 1-7/8 1-15/16 2 |
50 |
SUCX10 SUCX10-29 SUCX10-30 SUCX10-31 SUCX10-32 |
SFCX10 |
3.13 |
|
SUCFCX11 SUCFCX11-32 SUCFCX11-33 SUCFCX11-34 SUCFCX11-35 |
2 2-1/16 2-1/8 2-3/16 |
55 |
SUCX11 SUCX11-32 SUCX11-33 SUCX11-34 SUCX11-35 |
SFCX11 |
4.23 |
|
SUCFCX12 SUCFCX12-36 SUCFCX12-37 SUCFCX12-38 SUCFCX12-39 |
2-1/4 2-5/16 2-3/8 2-7/16 |
60 |
SUCX12 SUCX12-36 SUCX12-37 SUCX12-38 SUCX12-39 |
SFCX12 |
5.30 |
|
SUCFCX13 SUCFCX13-40 SUCFCX13-41 |
2-1/2 2-9/16 |
65 |
SUCX13 SUCX13-40 SUCX13-41 |
SFCX13 | 5.48 |
|
SUCFCX14 SUCFCX14-42 SUCFCX14-43 SUCFCX14-44 |
2-5/8 2-11/16 2-3/4 |
70 |
SUCX14 SUCX14-42 SUCX14-43 SUCX14-44 |
SFCX14 |
7.22 |
|
SUCFCX15 SUCFCX15-45 SUCFCX15-46 SUCFCX15-47 SUCFCX15-48 |
2-13/16 2-7/8 2-15/16 3 |
75 |
SUCX15 SUCX15-45 SUCX15-46 SUCX15-47 SUCX15-48 |
SFCX15 |
7.92 |
|
SUCFCX16 SUCFCX16-50 |
3-1/8 |
80 |
SUCX16 SUCX16-50 |
SFCX16 | 11.32 |
|
SUCFCX17 SUCFCX17-52 |
3-1/4 |
85 |
SUCX17 SUCX17-52 |
SFCX17 | 11.95 |
|
SUCFCX18 SUCFCX18-56 |
3-1/2 |
90 |
SUCX18 SUCX18-56 |
SFCX18 | 12.09 |
|
SUCFCX20 SUCFCX20-64 |
4 |
100 |
SUCX20 SUCX20-64 |
SFCX20 | 16.25 |
Notes:
1. Upon request, available with plastic close cap(CC) or open cap(OC) at one end.
2. Lubricated with industrial normal grease or food grade grease. Please ask details when sending the inquiry.
