Product Details:
|
Name: | Stainless Steel Pillow Block Bearings | Type: | SUCT201, SUCT202, SUCT203, SUCT204, SUCT205, SUCT206, SUCT207, SUCT208 |
---|---|---|---|
Housing Material: | Stainless Steel Casting (SUS13) | Insert Bearings' Material: | Stainless Steel 440C, Stainless Steel 420 |
Shaft Fastening: | Grub Screws | Housing Type: | Radial Insert Ball Bearing |
Compliance With Standard: | ISO, JIS, North American Standard | Number Of Mounting Holes: | 1 |
High Light: | radial insert Pillow Block Bearings,bearing pillow block housing stainless steel,bearing pillow block housing Grub Screws |

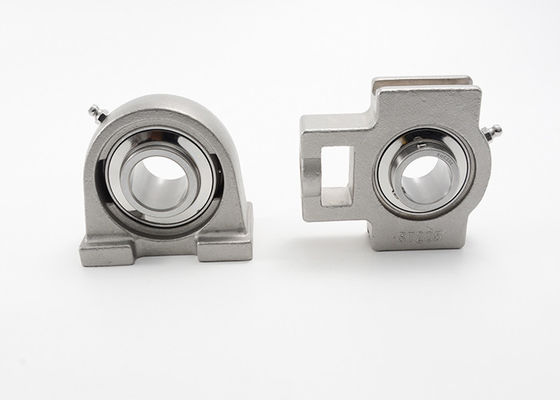

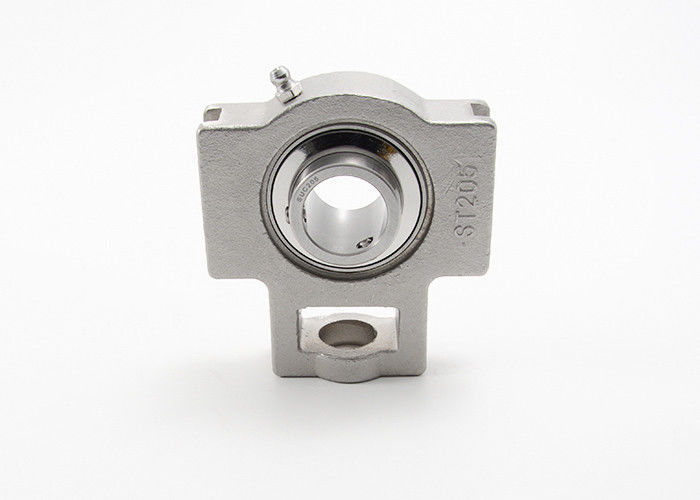

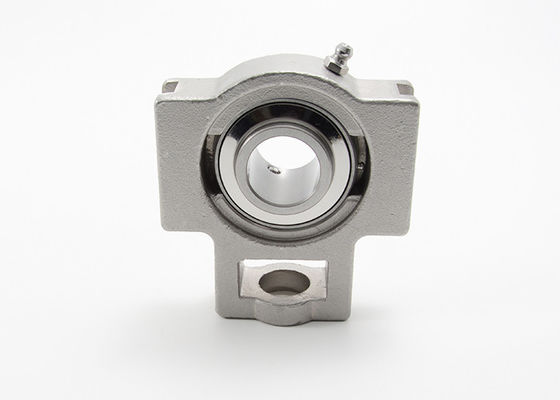

Stainless Steel Pillow Block Bearings for Food Processing Industry SUCT201 SUCT202 SUCT203
Pillow block bearings, also known as plummer blocks, are a type of bearing commonly used in machinery that provides support for a rotating shaft. These bearings are designed to be easily mounted and dismounted, and they are often used in the food processing sector due to their durability and resistance to contamination.
The food processing sector has a unique set of requirements when it comes to machinery and equipment. This industry demands high standards of cleanliness and hygiene to prevent contamination of food products. For this reason, manufacturers of food processing equipment must use materials that are easy to clean and can withstand harsh cleaning solutions.
Material choice
In the food processing industry, stainless steel austenitic grades 304 and 316 are often used as they have high chromium content. These types of steel are often referred to as food-grade stainless steel. Steel 316 is slightly more resilient against chlorides due to the content of two to three percent molybdenum, which makes it ideal for processing food high in salt. Overall, 300 series stainless steel has exceptional corrosion resistance making this material suitable for this industry. Some bearings for the food industry may be made from martensitic 400 series stainless steel as well. Martensitic stainless steel is an alloy with more chromium and usually no nickel in it while austenitic stainless steels have from 8 to 10% nickel content.
MOUETTE pillow (plummer) block ball bearing units consist of an insert bearing mounted in a housing, which can be bolted to a support surface. Standard unit housing designs include cast iron, composites, pressed steel and stainless steel materials. MOUETTE mainly produced housing and insert bearings in stainless steel; or insert bearings in stainless steel, but housing in plastic material.
Material being used: | |
Housing Material | Stainless steel casting (SUS13) |
Insert Bearings' Material | Stainless Steel 440C, Stainless Steel 420 |
Applications And Industry:
Stainless Steel Pillow Block Bearings SUCT2 Series Specifications:
Bearing Unit Part No. |
Bore Dia | Dimension(mm) | |||||||||||||||
d | w |
h |
g |
b |
N |
q | o | a | e | p | j |
k |
L |
B |
S |
||
in | mm | ||||||||||||||||
SUCT201 SUCT201-8 SUCT202 SUCT202-10 SUCT203 SUCT203-11 |
1/2 5/8 11/16 |
12 15 17 |
94 | 61 | 10 | 51 | 19 | 32 | 16 | 89 | 76 | 51 | 32 | 12 | 21 | 31.0 | 12.7 |
SUCT204 SUCT204-12 |
3/4 | 20 | 94 | 61 | 10 | 51 | 19 | 32 | 16 | 89 | 76 | 51 | 32 | 12 | 21 | 31.0 | 12.7 |
SUCT205 SUCT205-14 SUCT205-15 SUCT205-16 |
7/8 15/16 1 |
25 |
97 |
62 |
10 |
51 |
19 |
32 |
16 |
89 |
76 |
51 |
32 |
12 |
24 |
34.1 |
14.3 |
SUCT206 SUCT206-17 SUCT206-18 SUCT206-19 SUCT206-20 |
1-1/16 1-1/8 1-3/16 1-1/4 |
30 |
113 |
70 |
11 |
57 |
22 |
37 |
16 |
102 |
89 |
56 |
37 |
12 |
28 |
38.1 |
15.9 |
SUCT207 SUCT207-20 SUCT207-21 SUCT207-22 SUCT207-23 |
1-1/4 1-5/16 1-3/8 1-7/16 |
35 |
130 |
78 |
14 |
64 |
22 |
37 |
16 |
102 |
89 |
64 |
37 |
12 |
30 |
42.9 |
17.5 |
SUCT208 SUCT208-24 SUCT208-25 |
1-1/2 1-9/16 |
40 | 144 | 88 | 17 | 83 | 29 | 49 | 19 | 114 | 102 | 83 | 49 | 16 | 33 | 49.2 | 19.0 |
SUCT209 SUCT209-26 SUCT209-27 SUCT209-28 |
1-5/8 1-11/16 1-3/4 |
45 |
145 |
87 |
17 |
83 |
29 |
49 |
19 |
117 |
102 |
83 |
49 |
16 |
35 |
49.2 |
19.0 |
SUCT210 SUCT210-29 SUCT210-30 SUCT210-31 SUCT210-32 |
1-13/16 1-7/8 1-15/16 2 |
50 |
150 |
90 |
17 |
86 |
29 |
49 |
19 |
117 |
102 |
83 |
49 |
16 |
37 |
51.6 |
19.0 |
SUCT211 SUCT211-32 SUCT211-33 SUCT211-34 SUCT211-35 |
2 2-1/16 2-1/8 2-3/16 |
55 |
171 |
106 |
19 |
95 |
35 |
64 |
25 |
145 |
130 |
102 |
64 |
22 |
38 |
55.6 |
22.2 |
SUCT212 SUCT212-36 SUCT212-37 SUCT212-38 SUCT212-39 |
2-1/4 2-5/16 2-3/8 2-7/16 |
60 |
194 |
119 |
19 |
102 |
35 |
64 |
32 |
145 |
130 |
102 |
64 |
22 |
42 |
65.1 |
25.4 |
SUCT213 SUCT213-40 SUCT213-41 |
2-1/2 2-9/16 |
65 | 223 | 137 | 21 | 120 | 41 | 70 | 32 | 167 | 151 | 111 | 70 | 26 | 44 | 65.1 | 25.4 |
SUCT214 SUCT214-42 SUCT214-43 SUCT214-44 |
2-5/8 2-11/16 2-3/4 |
70 |
223 |
137 |
21 |
120 |
41 |
70 |
32 |
167 |
151 |
111 |
70 |
26 |
46 |
74.6 |
30.2 |
SUCT215 SUCT215-45 SUCT215-46 SUCT215-47 SUCT215-48 |
2-13/16 2-7/8 2-15/16 3 |
75 |
232 |
140 |
21 |
121 |
41 |
70 |
32 |
167 |
151 |
111 |
70 |
26 |
48 |
77.8 |
33.3 |
SUCT216 SUCT216-50 |
3-1/8 |
80 | 234 | 140 | 21 | 121 | 41 | 70 | 32 | 184 | 165 | 111 | 70 | 26 | 51 | 82.6 | 33.3 |
SUCT217 SUCT217-52 |
3-1/4 |
85 | 258 | 162 | 29 | 157 | 48 | 73 | 38 | 198 | 173 | 123 | 73 | 30 | 54 | 85.7 | 34.1 |
SUCT218 SUCT218-56 |
3-1/2 |
90 | 275 | 170 | 30 | 140 | 48 | 80 | 40 | 215 | 190 | 130 | 80 | 30 | 55 | 96 | 39.7 |
Bearing Unit Part No. |
Bore Dia |
Bearing Part No. |
Housing Part No. |
Net Weight (kg) |
|
d | |||||
in | mm | ||||
SUCT201 SUCT201-8 SUCT202 SUCT202-10 SUCT203 SUCT203-11 |
1/2
5/8
11/16 |
12
15
17
|
SUC201 SUC201-8 SUC202 SUC202-10 SUC203 SUC203-11 |
ST203 | 0.93 |
SUCT204 SUCT204-12 |
3/4 | 20 |
SUC204 SUC204-12 |
ST204 | 0.89 |
SUCT205 SUCT205-14 SUCT205-15 SUCT205-16 |
7/8 15/16 1 |
25 |
SUC205 SUC205-14 SUC205-15 SUC205-16 |
ST205 |
0.99 |
SUCT206 SUCT206-17 SUCT206-18 SUCT206-19 SUCT206-20 |
1-1/16 1-1/8 1-3/16 1-1/4 |
30 |
SUC206 SUC206-17 SUC206-18 SUC206-19 SUC206-20 |
ST206 |
1.46 |
SUCT207 SUCT207-20 SUCT207-21 SUCT207-22 SUCT207-23 |
1-1/4 1-5/16 1-3/8 1-7/16 |
35 |
SUC207 SUC207-20 SUC207-21 SUC207-22 SUC207-23 |
ST207 |
1.81 |
SUCT208 SUCT208-24 SUCT208-25 |
1-1/2 1-9/16 |
40 |
SUC208 SUC208-24 SUC208-25 |
ST208 | 2.68 |
SUCT209 SUCT209-26 SUCT209-27 SUCT209-28 |
1-5/8 1-11/16 1-3/4 |
45 |
SUC209 SUC209-26 SUC209-27 SUC209-28 |
ST209 |
2.99 |
SUCT210 SUCT210-29 SUCT210-30 SUCT210-31 SUCT210-32 |
1-13/16 1-7/8 1-15/16 2 |
50 |
SUC210 SUC210-29 SUC210-30 SUC210-31 SUC210-32 |
ST210 |
2.98 |
SUCT211 SUCT211-32 SUCT211-33 SUCT211-34 SUCT211-35 |
2 2-1/16 2-1/8 2-3/16 |
55 |
SUC211 SUC211-32 SUC211-33 SUC211-34 SUC211-35 |
ST211 |
4.52 |
SUCT212 SUCT212-36 SUCT212-37 SUCT212-38 SUCT212-39 |
2-1/4 2-5/16 2-3/8 2-7/16 |
60 |
SUC212 SUC212-36 SUC212-37 SUC212-38 SUC212-39 |
ST212 |
5.57 |
SUCT213 SUCT213-40 SUCT213-41 |
2-1/2 2-9/16 |
65 |
SUC213 SUC213-40 SUC213-41 |
ST213 | 7.60 |
SUCT214 SUCT214-42 SUCT214-43 SUCT214-44 |
2-5/8 2-11/16 2-3/4 |
70 |
SUC214 SUC214-42 SUC214-43 SUC214-44 |
ST214 |
7.66 |
SUCT215 SUCT215-45 SUCT215-46 SUCT215-47 SUCT215-48 |
2-13/16 2-7/8 2-15/16 3 |
75 |
SUC215 SUC215-45 SUC215-46 SUC215-47 SUC215-48 |
ST215 |
8.29 |
SUCT216 SUCT216-50 |
3-1/8 |
80 |
SUC216 SUC216-50 |
ST216 | 9.32 |
SUCT217 SUCT217-52 |
3-1/4 |
85 |
SUC217 SUC217-52 |
ST217 | 11.96 |
SUCT218 SUCT218-56 |
3-1/2 |
90 |
SUC218 SUC218-56 |
ST218 | 14.73 |
