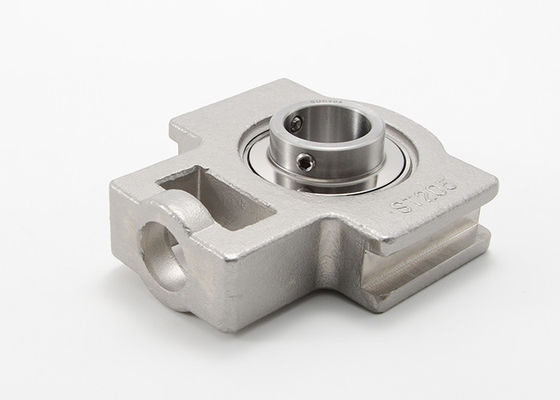

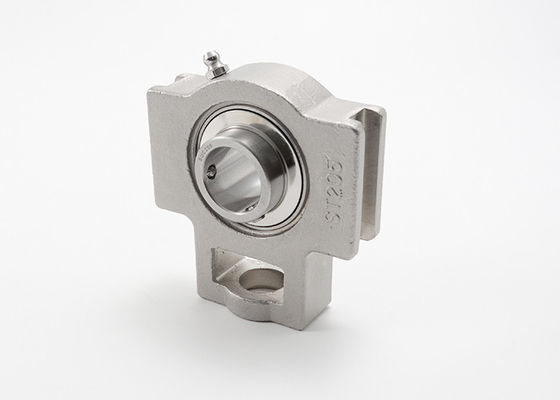

Stainless Steel 440c 420 Radial Insert Ball Bearing Pillow Block Mounted SUCT305 SUCT307 SUCT312

Stainless Steel 440c 420 Radial Insert Ball Bearing Pillow Block Mounted SUCT305 SUCT307 SUCT312
Stainless Steel 440c 420 Radial Insert Ball Bearing Pillow Block Mounted SUCT305 SUCT307 SUCT312 Stainless Steel 440c 420 Radial Insert Ball Bearing Pillow Block Mounted SUCT305 SUCT307 SUCT312

Large Image :  Stainless Steel 440c 420 Radial Insert Ball Bearing Pillow Block Mounted SUCT305 SUCT307 SUCT312

Product Details:
Place of Origin: China
Brand Name: MOUETTE
Certification: ISO/TS 16949:2009, ISO 9001:2008
Model Number: SUCT305, SUCT306, SUCT308, SUCT310, SUCT315, SUCT318, SUCT320
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: USD10 per Piece (Inquired)
Packaging Details: Plastic bags, Cartons and European Standard Plywood Case.
Delivery Time: 3-45 working days.(Huge Quantity Stocks Available))
Payment Terms: L/C, T/T, D/A, Western Union, Paypal
Supply Ability: 500,000 Pieces per Month.
Contact Now

Stainless Steel 440c 420 Radial Insert Ball Bearing Pillow Block Mounted SUCT305 SUCT307 SUCT312

Description
Name: All Stainless Steel Bearing Units Type: SUCT3 Series
Housing Material: Stainless Steel 440C, Stainless Steel 420, Stainless Steel 304 Insert Bearings' Material: Stainless Steel 440C, Stainless Steel 420
Grease: Industry Grease / Food Grade Grease (Please Check With Us For Details) Operating Temperature: -20°C To 120°C
Compliance With Standard: ISO, JIS, North American Standard Applications: Food And Beverage Processing And Packaging, Conveyor Systems, Elevator Systems, Agricultural Machinery
High Light:

stainless steel pillow block mounted ball bearing

,

420 Radial Insert Ball Bearing

,

440c Radial Insert Ball Bearing

All Stainless Steel Bearing Units SUCT305 SUCT307 SUCT312 Radial Insert Ball Bearing



Mouette all stainless steel bearing units corrosion resistant series is available in a wide array of sizes and styles, and units may be customized with a number of different specialized options to accommodate virtually any application. Our Corrosion Resistant Ball Bearing Housed Units are an ideal fit for a variety of applications, including food processing,canning,bottling,pharmacy industry,chemical processing,grinding,mixing equipment, extrusion,bagging and conveying and more. Corrosion-resistant materials and food-grade lubricant help elevate food safety and production uptime. These products also deliver improved reliability and protect against a variety of wet and dry contaminants, dramatically improve bearing life while reducing the operating costs.



All stainless steel bearing units:

Serving to the harshest conditions - sulfuric, nitric or acetic acids and in contaminated or uncontaminated water conditions.

Stainless steel housings are designed with solid bases/backs and smooth surfaces to allow for complete and easy wash down.

Standard closures include a stainless steel slinger over a full contact silicon seal to form a double barrier of protection during operation and wash down.

Stainless steel bearings are filled with NSF H1 food grade grease for use in HACCP compliant facilities.Solid lube options available.



MOUETTE also offers thermoplastic housed ball bearing units as well.

Capable to fit with close/open end caps or back seals.



Material and Operation Temperature:

Description Material
Housing Stainless Steel SUS 304, SUS 440, SUS 420
Insert Bearing
Set Screw Stainless Steel SUS 304
Retainer Stainless Steel SUS 201
Slinger & Frame Stainless Steel SUS 304
Inner ring & Outer ring Stainless Steel SUS 440, SUS 420
Ball Stainless Steel SUS 440
Grease Nipple Stainless Steel SUS 304
Grease Industry grease / Food Grade Grease (Please check with us for details)
Operating Temperature -20°C to 120°C





All Stainless Steel Bearing Units SUCT3 Series Specifications:



Bearing Unit Part No.

 Bore Dia Dimension(mm)
d w h g b N q o a e p j k L B S
in mm

SUCT305

SUCT305-14 SUCT305-15

SUCT305-16



7/8

15/16

1

 25 122 76 12 65 26 36 16 89 80 62 36 12 26 38 15

SUCT306

SUCT306-18

SUCT306-19



1-1/8

1-3/16

 30



137



85



14



74



28



41



18



100



90



70



41



16



28



43



17

SUCT307

SUCT307-20

SUCT307-21 SUCT307-22



1-1/4

1-5/16

1-3/8

 35 150 94 15 80 30 45 20 111 100 75 45 16 32 48 19

SUCT308

SUCT308-24

SUCT308-25



1-1/2

1-9/16

 40



162



100



17



89



32



50



22



124



112



83



50



18



34



52



19

SUCT309

SUCT309-26 SUCT309-27

SUCT309-28



1-5/8

1-11/16

1-3/4

 45 178 110 18 97 34 55 24 138 125 90 55 18 38 57 22

SUCT310

SUCT310-30

SUCT310-31



1-7/8

1-15/16

 50



191



117



20



106



37



61



27



151



140



98



61



20



40



61



22

SUCT311

SUCT311-32

SUCT311-34 SUCT311-35



2

2-1/8

2-3/16

 55 207 127 21 115 39 66 29 163 150 105 66 22 44 66 25

SUCT312

SUCT312-36 SUCT312-38

SUCT312-39



2-1/4

2-3/8

2-7/16

 60 220 135 23 123 41 71 31 178 160 113 71 22 46 71 26

SUCT313

SUCT313-40



2-1/2

 65 238 146 25 134 43 71 32 190 170 116 80 26 50 75 30

SUCT314

SUCT314-44



2-3/4

 70 252 155 25 140 46 85 36 202 180 130 90 26 52 78 33

SUCT315

SUCT315-48



3

 75 262 160 25 150 46 85 36 216 192 132 90 26 55 82 32

SUCT316

SUCT316-50



3-1/8

 80 282 174 28 160 53 98 42 230 204 150 102 30 60 86 34

SUCT317

SUCT317-52



3-1/4

 85 298 183 30 170 53 98 42 240 214 152 102 32 64 96 40

SUCT318

SUCT318-56



3-1/2

 90 312 192 30 175 57 106 46 255 228 160 110 32 66 96 40

SUCT319

SUCT319-60



2-3/4

 95 322 197 31 180 57 106 46 270 240 165 110 35 72 103 41

SUCT320

SUCT320-64



4

 100 345 210 32 200 59 115 48 290 260 175 120 35 75 108 42
SUCT321 / 105 345 210 32 200 59 115 48 290 260 175 120 35 75 112 44
SUCT322 / 110 385 235 38 215 65 125 52 320 285 185 130 38 80 117 46
SUCT324 / 120 432 267 42 230 70 140 60 355 320 210 140 45 90 126 51
SUCT326 / 130 465 285 45 240 75 150 65 385 350 220 150 50 100 135 54
SUCT328 / 140 515 315 50 255 80 160 70 415 380 230 155 50 100 145 59







Bearing Unit Part No.

 Bore Dia



Bearing Part No.



Housing Part No.



Net Weight (kg)
d
in mm
SUCT305   25

SUCT305

SUCT305-14 SUCT305-15

SUCT305-16

7/8

15/16

1

 25

SUC305

SUC305-14

SUC305-15

SUC305-16

 ST305 1.4
    30



ST306



1.80

SUCT306

SUCT306-18

SUCT306-19



1-1/8

1-3/16

 30

SUC306

SUC306-18

SUC306-19

SUCT307

SUCT307-20

SUCT307-21 SUCT307-22



1-1/4

1-5/16

1-3/8

 35

SUC307

SUC307-20

SUC307-21

SUC307-22

 ST307 2.44

SUCT308

SUCT308-24

SUCT308-25



1-1/2

1-9/16

 40

SUC308

SUC308-24

SUC308-25



ST308



3.04

SUCT309

SUCT309-26 SUCT309-27

SUCT309-28



1-5/8

1-11/16

1-3/4

 45

SUC309

SUC309-26

SUC309-27

SUC309-28

 ST309 3.33

SUCT310

SUCT310-30

SUCT310-31



1-7/8

1-15/16

 50

SUC310

SUC310-30

SUC310-31



ST310



5.00

SUCT311

SUCT311-32

SUCT311-34 SUCT311-35



2

2-1/8

2-3/16

 55

SUC311

SUC311-32

SUC311-34

SUC311-35

 ST311 6.43

SUCT312

SUCT312-36 SUCT312-38

SUCT312-39



2-1/4

2-3/8

2-7/16

 60

SUC312

SUC312-36

SUC312-38

SUC312-39

 ST312 7.50

SUCT313

SUCT313-40



2-1/2

 65

SUC313

SUC313-40

 ST313 9.77

SUCT314

SUCT314-44



2-3/4

 70

SUC314

SUC314-44

 ST314 11.01

SUCT315

SUCT315-48



3

 75

SUC315

SUC315-48

 ST315 13.46

SUCT316

SUCT316-50



3-1/8

 80

SUC316

SUC316-50

 ST316 14.75

SUCT317

SUCT317-52



3-1/4

 85

SUC317

SUC317-52

 ST317 17.70

SUCT318

SUCT318-56



3-1/2

 90

SUC318

SUC318-56

 ST318 21.10

SUCT319

SUCT319-60



2-3/4

 95

SUC319

SUC319-60

 ST319 23.25

SUCT320

SUCT320-64



4

 100

SUC320

SUC320-64

 ST320 26.28
SUCT321 / 105 SUC321 ST321 27.3
SUCT322 / 110 SUC322 ST322 37.5
SUCT324 / 120 SUC324 ST324 48.7
SUCT326 / 130 SUC326 ST326 62.3
SUCT328 / 140 SUC328 ST328 89.7

Stainless Steel 440c 420 Radial Insert Ball Bearing Pillow Block Mounted SUCT305 SUCT307 SUCT312 0



Stainless Steel 440c 420 Radial Insert Ball Bearing Pillow Block Mounted SUCT305 SUCT307 SUCT312 1



Stainless Steel 440c 420 Radial Insert Ball Bearing Pillow Block Mounted SUCT305 SUCT307 SUCT312 2



Stainless Steel 440c 420 Radial Insert Ball Bearing Pillow Block Mounted SUCT305 SUCT307 SUCT312 3



Stainless Steel 440c 420 Radial Insert Ball Bearing Pillow Block Mounted SUCT305 SUCT307 SUCT312 4
