Drawn Cup Needle Roller Bearing Open Ends Heavy Duty Steel Cage Inch Series SCH1416

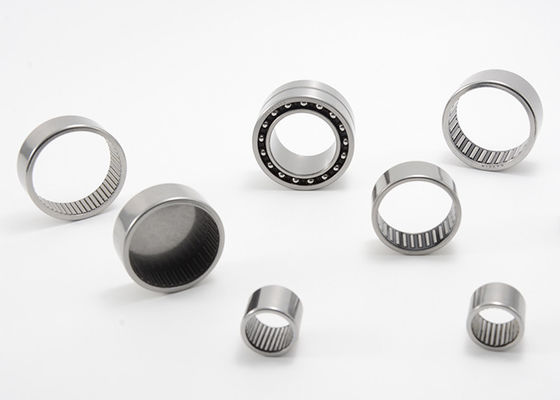

Drawn cup needle roller bearings have a deep drawn, thin-walled outer ring. Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. These bearings are mounted with a tight interference fit in the housing. That enables a simple and economic design of the housing bore, as shoulders or snap rings are not required to locate the bearing axially.

MOUETTE supplies a wide assortment of drawn cup needle roller bearings. This includes:

• Bearings with open ends
• Bearings with a closed end
• Full complement bearings with open ends

Drawn cup needle roller bearings:

• are supplied without an inner ring
• are generally designed with one needle roller and cage assembly – except wide sizes, which incorpor­ate two needle roller and cage assemblies immediately adjacent to each other, with a lubrication hole in the outer ring

About this type

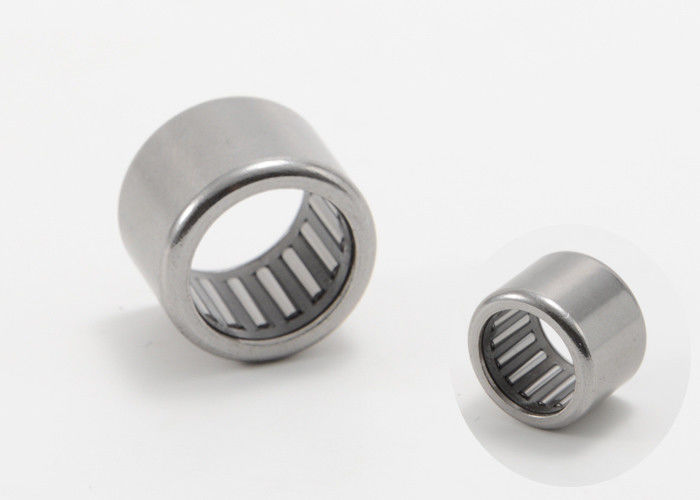

• Heavy duty drawn cup needle roller bearing for applications with high dynamic and static loads
• Drawn steel outer shell (cup) has a reduced cross-section for use in restricted spaces
• Steel cage guides and evenly spaces rollers for reduced friction, vibration, and noise
• Through-hardened, high-carbon chromium steel rollers for heat tolerance and durability under heavy loads
• Meets standard ANSI/ABMA 18.2-1982 for quality assurance

Drawn Cup Needle Roller Bearing Open Ends Heavy Duty Steel Cage Inch Series SCH Details:
