Drawn Cup Shell Type Caged Needle Bearings Inch Series Ball Bearings BA 1012Z

Drawn Cup Shell Type Caged Needle Bearings Inch Series Ball Bearings BA 1012Z
Drawn Cup Shell Type Caged Needle Bearings Inch Series Ball Bearings BA 1012Z Drawn Cup Shell Type Caged Needle Bearings Inch Series Ball Bearings BA 1012Z

Large Image :  Drawn Cup Shell Type Caged Needle Bearings Inch Series Ball Bearings BA 1012Z

Product Details:
Place of Origin: China
Brand Name: MOUETTE
Certification: ISO/TS 16949:2009, ISO 9001:2008
Model Number: BA 44ZOH, BA 47ZOH, BA 55ZOH, BA 57ZOH, BA 66, BA 66ZOH, BA 68, BA 88ZOH, BA 810ZOH, BA 1010ZOH, BA 1012Z, BA 126ZOH, BA 128ZOH, BA 1210ZOH, BA 148ZOH, BA 1612, BA 2012, BA 2020, BA 2420, BA 2816ZOH
Payment & Shipping Terms:
Minimum Order Quantity: 200
Price: USD0.1 per Piece
Packaging Details: Plastic film, Cartons and European Standard Plywood Case.
Delivery Time: 3-45 working days.(Huge Quantity Stocks Available))
Payment Terms: L/C, T/T, D/A, Western Union, Paypal
Supply Ability: 500,000 Pieces per Month.
Contact Now

Drawn Cup Shell Type Caged Needle Bearings Inch Series Ball Bearings BA 1012Z

Description
Name: Shell Type Caged Needle Roller Bearings Material: Steel ST12 Or ST14 (carburized And Quenched)
Type Of Bearing: BA...Z, BAM Inch - Metric: Inch Series
Rolling Elements: Needle Roller With Cage Number Of Rows: 1
Enclosure: Open Or Closed End Are Available Retainer: Yes, With Cage
Lubrication Feature: With Oil Hole Or Without Oil Hole Customized: Standard Or Customized Are Available
High Light:

drawn cup caged needle bearings

,

shell type caged needle bearings

,

inch series ball bearings BA 1012Z

Drawn Cup Shell Type Caged Needle Roller Bearings Inch Series BA 1012Z



Shell Type Needle Roller Bearings are lightweight bearings with large load ratings. There are two types of bearings available in this series; the caged type and the full complement type. The appropriate type can be selected according to the operating conditions. The caged type has a structure in which the needle rollers are accurately guided by the cage and thrust rings. It is useful for applications at high-speed rotation. The full complement type needle roller bearing, on the other hand, is suitable for heavy-load applications at low-speed rotation.



Since these bearings are press-fitted into the housing, no fixtures for axial positioning are needed. They are ideal for use in mass-produced articles that require economy, and have a wide variety of applications.



Numerous varieties of Shell Type Needle Roller Bearings are available as shown in below table:
Series Type Caged Full Complement
Standard Closed End With Seals Grease Retained
Metric Series --- TLA TLAM TLA...2RS YTL
Heavy Duty TA TAM --- YT
Inch Series --- BA...Z BAM --- YB
Heavy Duty BHA...Z BHAM --- YBH

Note(1) When the heavy duty type with seals or the closed end type with one seal is required, please consult.



MOUETTE offers more interchange tables, such as skf needle bearings, ina needle bearings, ntn needle bearings, iko needle bearings, torrington needle bearings, koyo needle bearings, timken needle bearings, rbc needle bearings, and mcgill needle bearings.



Drawn Cup Shell Type Caged Needle Roller Bearings Inch Series BA...Z, BAM Series:

Shaft

Diameter

 Bearing Designation

Mass

Approx

 Boundary Dimensions Basic Load Rating Limiting Speed
Current Code Fw D C Dynamic Static Oil
mm g mm N rpm
6.35 BA 44ZOH 2.1 6.35 11.112 6.35 150 110 55000
BA 47ZOH 3.5 6.35 11.112 11.13 270 240 55000
7.938 BA 55ZOH 3 7.938 12.7 7.92 190 160 45000
BA 57ZOH 4.3 7.938 12.7 11.13 340 330 45000
9.525 BA 66 4.2 9.525 14.288 9.525 320 310 40000
BA 66ZOH 4.2 9.525 14.288 9.52 320 310 40000
BA 68 5.7 9.525 14.288 12.7 430 470 40000
BA 610Z 7 9.525 14.288 15.88 580 680 40000
12.7 BA 88ZOH 7.2 12.7 17.462 12.7 480 580 30000
BA 810 8.9 12.7 17.462 15.88 650 850 30000
BA 810ZOH 8.9 12.7 17.462 15.88 650 850 30000
BA 812ZOH 10.6 12.7 17.462 19.05 800 1120 30000
14.288 BA 910ZOH 9.9 14.288 19.05 15.88 720 1010 30000
15.875 BA 105Z 5.3 15.875 20.638 7.94 290 330 25000
BA 107ZOH 7.6 15.875 20.638 11.11 510 680 25000
BA 108ZOH 8.7 15.875 20.638 12.7 550 740 25000
BA 1010ZOH 10.8 15.875 20.638 15.88 750 1100 25000
BA 1012Z 12.9 15.875 20.638 19.05 920 1430 25000
17.462 BA 118ZX 9.5 17.462 22.225 12.7 630 900 25000
19.05 BA 126ZOH 10 19.05 25.4 9.52 510 600 20000
BA 128 13.5 19.05 25.4 12.7 700 890 20000
BA 128ZOH 13.5 19.05 25.4 12.7 700 890 20000
BA 1210 17 19.05 25.4 15.88 970 1350 20000
BA 1210ZOH 17 19.05 25.4 15.88 970 1350 20000
BA 1212ZOH 20.5 19.05 25.4 19.05 1220 1800 20000
22.225 BA 146ZOH 11.5 22.225 28.575 9.52 550 690 18000
BA 148ZOH 15.6 22.225 28.575 12.7 760 1080 18000
BA 1412ZOH 23.5 22.225 28.575 19.05 1310 2080 18000
BA 1416ZOH 31 22.225 28.575 25.4 1790 3110 18000
25.4 BA 1612 26.5 25.4 31.75 19.05 1450 2470 15000
BA 1612ZOH 26.5 25.4 31.75 19.05 1450 2470 15000
BA 1616 35.5 25.4 31.75 25.4 1980 3700 15000
BA 1616ZOH 35.5 25.4 31.75 25.4 1980 3700 15000
28.575 BA 188 19.5 28.575 34.925 12.7 880 1360 13000
BA 1816Z 39 28.575 34.925 25.4 2090 4110 13000
BA 1816 39 28.575 34.925 25.4 2090 4110 13000
30.162 BA 1916ZOH 52 30.162 38.1 25.4 2630 4620 12000
31.75 BA 2012 32.5 31.75 38.1 19.05 1600 3020 12000
BA 2012ZOH 32.5 31.75 38.1 19.05 1600 3020 12000
31.75 BA 2016ZOH 43 31.75 38.1 25.4 2190 4520 12000
BA 2020 53.5 31.75 38.1 31.75 2750 6040 12000
BA 2020ZOH 53.5 31.75 38.1 31.75 2750 6040 12000
34.525 BA 2216ZOH 47.5 34.925 41.275 25.4 2350 5120 10000
38.1 BA 2420 97.5 38.1 47.625 31.75 3980 7570 9000
BA 2420ZOH 97.5 38.1 47.625 31.75 3980 7570 9000
41.275 BA 2610 52 41.275 50.8 15.88 1930 3060 8000
BA 2620ZOH 105 41.275 50.8 31.75 4220 8370 8000
44.45 BA 2812ZOH 67.5 44.45 53.975 19.05 2570 4540 7500
BA 2816ZOH 91 44.45 53.975 25.4 3540 6870 7500
50.8 BA 3216ZOH 104 50.8 60.325 25.4 3780 7800 6000
  BAM series
9.525 BAM 66K   9.525 14.288 10.5
BAM 66 4.6 9.525 14.2875 9.525 320 310 40000
12.7 BAM 812 11.3 12.7 17.462 19.05 800 1120 30000

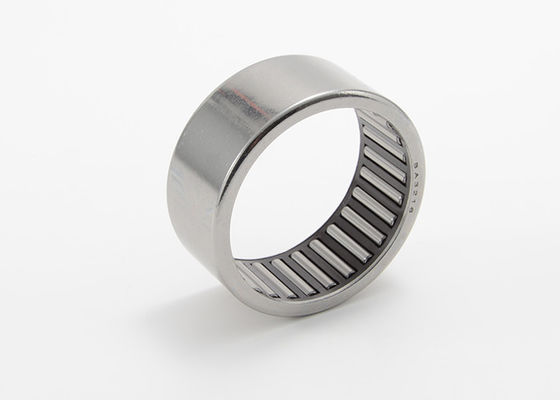

Drawn Cup Shell Type Caged Needle Bearings Inch Series Ball Bearings BA 1012Z 0

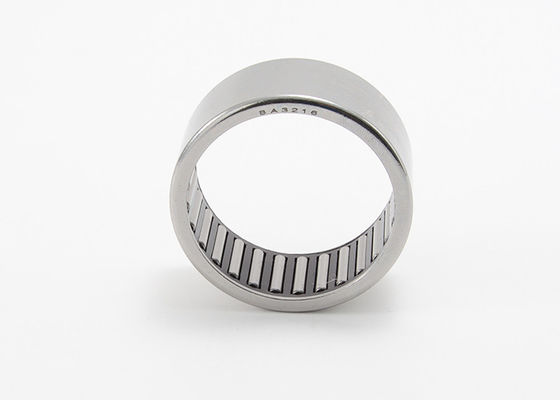

Drawn Cup Shell Type Caged Needle Bearings Inch Series Ball Bearings BA 1012Z 1



Drawn Cup Shell Type Caged Needle Bearings Inch Series Ball Bearings BA 1012Z 2



Drawn Cup Shell Type Caged Needle Bearings Inch Series Ball Bearings BA 1012Z 3



Drawn Cup Shell Type Caged Needle Bearings Inch Series Ball Bearings BA 1012Z 4
