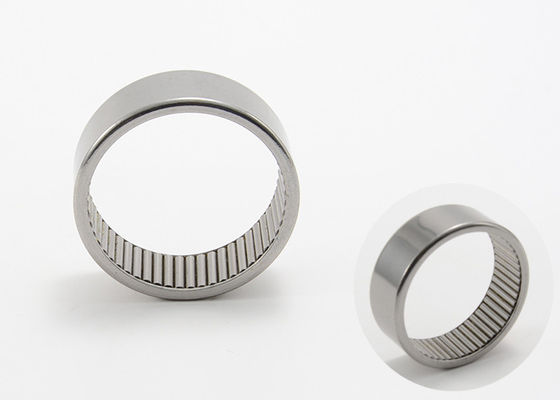

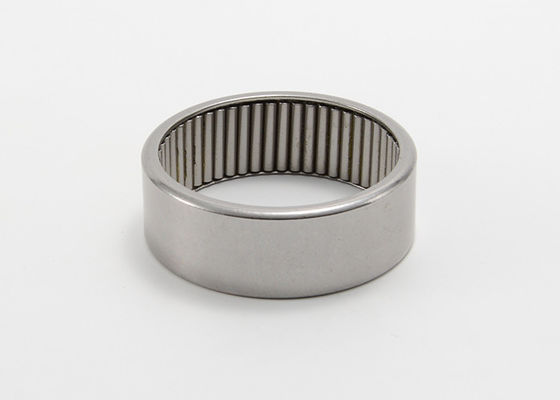

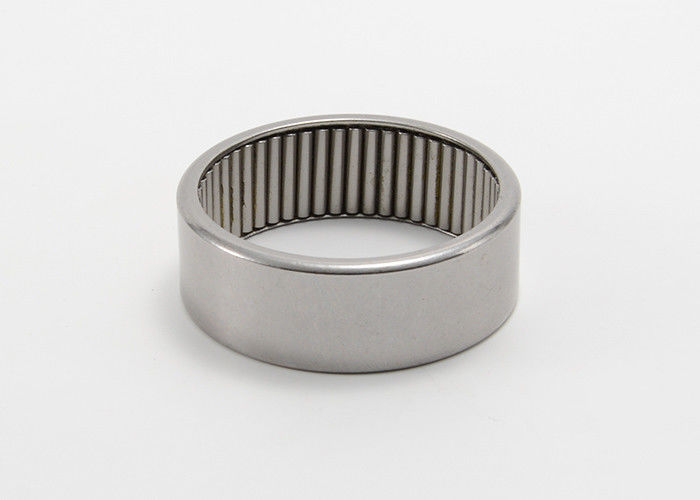

Open End Full Complement Drawn Cup Needle Bearings HN2520

Drawn Cup Needle Roller Bearing Open End Full Complement Needle Roller Set HN2520

Drawn cup needle roller bearings with open ends and with closed end are needle roller bearings with a very small radial section height. They comprise thin-walled, drawn cup outer rings and needle roller and cage assemblies which together form a complete unit. The outer rings adapt themselves to the dimensional and geometrical accuracy of the housing bore.

Basic design bearings:

• Drawn cup needle roller bearings with open ends (series designation HK series)

             ·  are available open (without seals) or sealed on one or both sides (Sealing solutions)

• Drawn cup needle roller bearings with a closed end (series designation BK series)

            · are available open or sealed (Sealing solutions)

            · are suitable for bearing arrangements where they are situated at the end of a shaft

            · accommodate small axial guidance forces, because of the profiled design of their closed end

• Full complement bearings with open ends (series designation HN Series)

            · are suitable for very heavy radial loads at moderate speeds

            · are available with open ends and without seals only

Full complement drawn cup needle roller bearings are supplied with a special grease to secure the rollers during transport. However, we recommend re-lubricating after mounting.

Drawn Cup Needle Roller Bearing Open End Full Complement Needle Roller Set HN Type Specification:
