Machined Single Row Needle Roller Bearing Gcr15 Flanged NA4912 With Removable Inner Ring

Large Image : Machined Single Row Needle Roller Bearing Gcr15 Flanged NA4912 With Removable Inner Ring

Product Details:

Place of Origin:	China
Brand Name:	MOUETTE
Certification:	ISO/TS 16949:2009, ISO 9001:2008
Model Number:	NKI 50/25, NKI 55/35, NKI 65/25, NKI 80/35, NKI 95/26, NKI100/30, NA4910, NA4912, NA4913, NA4914, NA4918, NA4920, NA4926, NA4928, NA6910, NA6911, NA6912, NA6914, NA6918

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	USD0.5 per Piece
Packaging Details:	Plastic bags, Cartons and European Standard Plywood Case.
Delivery Time:	3-45 working days.(Huge Quantity Stocks Available))
Payment Terms:	L/C, T/T, D/A, Western Union, Paypal
Supply Ability:	500,000 Pieces per Month.

Contact Now

Machined Single Row Needle Roller Bearing Gcr15 Flanged NA4912 With Removable Inner Ring

Description

Name:	Machined Needle Roller Bearing With Removable Inner Ring	Needle Bearing Type:	Machined Needle Bearing With Inner Ring
Material:	Chrome Steel 100Cr6, GCr15, AISI 52100	Outer Ring Type:	Machined (solid)
Closure Type:	Open	Aligning Feature:	Without
Cage:	Sheet Metal	Coating:	Without
Number Of Flanges, Outer Ring:	2	Radial Internal Clearance:	CN
Relubrication Feature:	Lubrication Groove And Oil Hole On Outer Ring	Customized:	Standard Or Customized Are Available
High Light:	machined single row needle roller bearing , gcr15 flanged needle bearing , flanged needle bearing NA4912

Machined Needle Roller Bearing With Removable Inner Ring And Flanges NA4912

Single row needle roller bearing with machined rings, with flanges

Single row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length. Owing to their large number of rollers, the bearings have a high load carrying capacity. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.

The inner ring has no shoulder in this bearing. For this purpose, the inner ring, outer ring, complete set of needles and cage can be mounted respectively. This bearing does not limit the axial shift of shaft and outer housing. Since the cage separates the needles so as to reduce friction. It can be used for the parts with high rotational speed.

High radial load carrying capacity
High stiffness
Low cross-sectional height
Accommodate axial displacement in both directions
Separable design

Machined Needle Roller Bearing With Removable Inner Ring and With Flanges Specifications:

Shaft Diameter	Bearing Designation		Mass Approx	Boundary Dimensions				Basic Load Rating			Limiting Speed
Shaft Diameter	Current Code	Original Code	Mass Approx	d	Fw	D	B	Dynamic	Static		Oil
mm	Current Code	Original Code	g	mm				N			rpm
50	NKI 50/25	TAFI506825	262	50	55	68	25	32000		78000	7500
	NA4910	4544910	264	50	58	72	22	41000		72000	7500
	NA5910			50	58	72	30
	NA6910	6534910	457	50	58	72	40	68000		135000	7500
	NKIS50		510	50	60	80	28	60000		95000	7500
	NKI 50/35	TAFI506835		50	55	68	35	53000		118000	7500
55	NKI 55/35		357	55	60	72	35	48000		126800	7500
	NA4911	4544911	386	55	63	80	25	50600		96580	7500
	NA5911			55	63	80	34
	NA6911	6534911	790	55	63	80	45	82560		172000	7500
60	NKI 60/25		388	60	68	82	25	35500		85000	7000
	NA4912	4544912	412	60	68	85	25	52800		110500	6500
	NA5912		614	60	68	85	34
	NA6912	6534612	798	60	68	85	45	88500		186000	6500
	NKIS60		550	60	70	90	28	65000		110000	6500
65	NA4913	4544913	435	65	72	90	25	57500		110500	6500
	NA6913	6534913	821	65	72	90	45	87600		194500	6500
	NKI 65/25			65	73	90	25	53000		100000	6500
	NKI 65/35			65	73	90	35	75000		156000	6500
70	NA4914	4544914	712	70	80	100	30	79000		154000	5500
	NA6914	6534914	1326	70	80	100	54	121000		263000	5500
	NKI 70/35			70	80	95	35	78000		184000	5500
75	NA4915	4544915	765	75	85	105	30	82000		158000	5500
	NA5915		1130	75	85	105	40
	NA6915	6534915	1429	75	85	105	54	128000		272000	5500
80	NA4916	4544916	870	80	90	110	30	81000		170500	5500
	NA6916	6534916	1510	80	90	110	54	130500		280600	5000
	NKI 80/35			80	90	110	35	103000		208000	5000
85	NKI 85/26			85	95	115	26	73000		137000	4800
	NKI 85/36		1040	85	95	115	36	107000		223000	4800
	NA4917	4544917	1250	85	100	120	35	111000		237000	4600
	NA6917	6534917	2200	85	100	120	63	166000		400000	4600
90	NKI 90/26			90	100	120	26	26000		146000	4600
	NA4918	4544918	1312	90	105	125	35	114000		250000	4600
	NA6918	6534918	2310	90	105	125	63	172000		425000	4600
95	NA4919	4544919	1371	95	110	130	35	116000		260000	4200
	NA6919	6534919	2500	95	110	130	63	174000		440000	4200
	NKI 95/26			95	105	125	26	78000		115000	4200
	NKI 95/36			95	105	125	36	114000		250000	4200

100	NA4920	4544920	1900	100	115	140	40	12000	274000	4000
100	NKI100/30			100	110	130	30	98000	210000	4000
110	NA4922	4544922	2070	110	125	150	40	132000	290000	3700
110	NA4822		1080	110	120	140	30	94000	216000	3900
120	NA4924	4544924	2860	120	135	165	45	181000	890000	3400
120	NA4824		1170	120	130	150	30	99000	239000	3600
130	NA4926	4544926	3900	130	150	180	50	223000	470000	3100
130	NA4826		1810	130	145	165	35	118000	310000	3200
140	NA4928	4544928	4150	140	160	190	50	209000	500000	2900
140	NA4828		1920	140	155	175	35	120000	325000	3000
150	NA4830		2720	150	165	190	40	152000	400000	2800
160	NA4832		2890	160	175	200	40	160000	435000	2700
170	NA4834		3960	170	185	215	45	185000	510000	2500
180	NA4836		4200	180	195	225	45	194000	550000	2400
190	NA4838		5600	190	210	240	50	227000	690000	2300
200	NA4840		5840	200	220	250	50	230000	720000	2200
220	NA4844		6380	220	240	270	50	243000	790000	2000
240	NA4848		10000	240	265	300	60	355000	1080000	1800
260	NA4852	4524852	11300	260	285	320	60	370000	1160000	1700

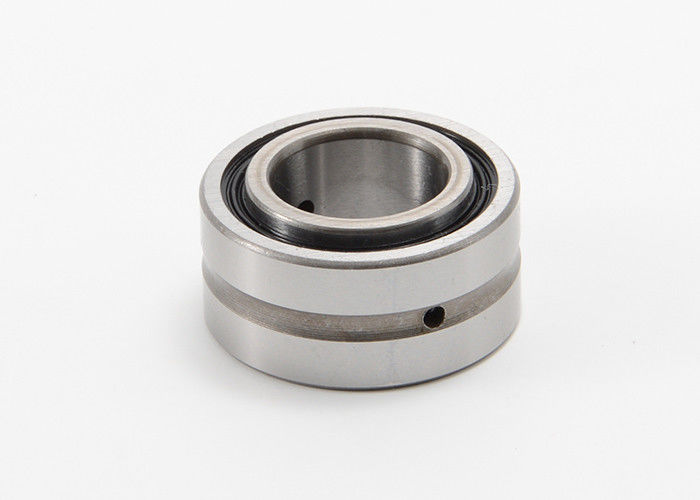

Machined Single Row Needle Roller Bearing Gcr15 Flanged NA4912 With Removable Inner Ring 0

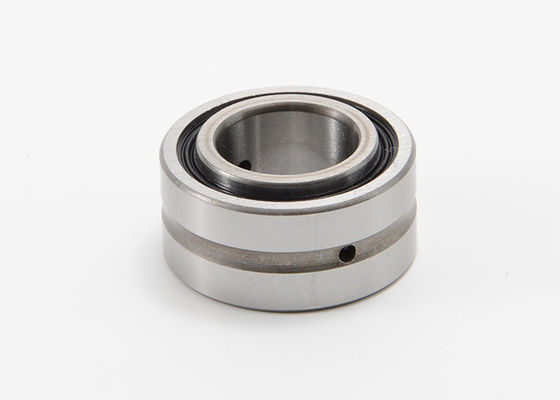

Machined Single Row Needle Roller Bearing Gcr15 Flanged NA4912 With Removable Inner Ring 1

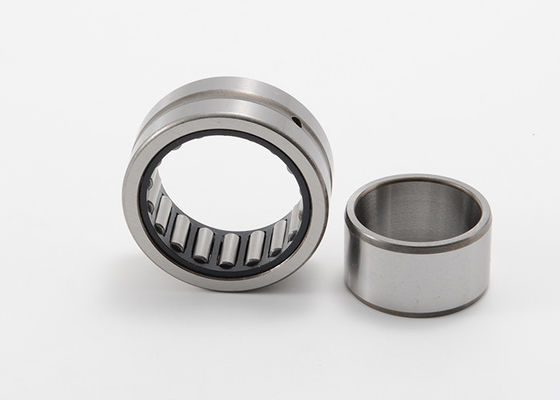

Machined Single Row Needle Roller Bearing Gcr15 Flanged NA4912 With Removable Inner Ring 2
