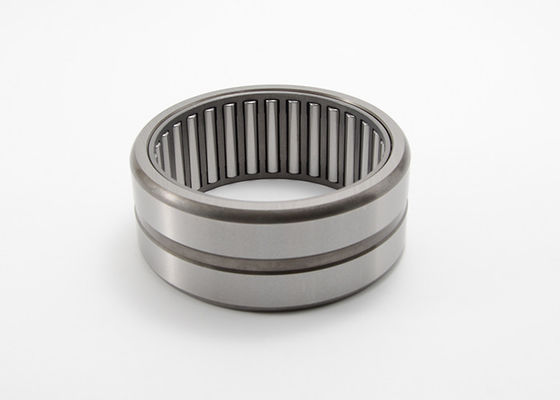

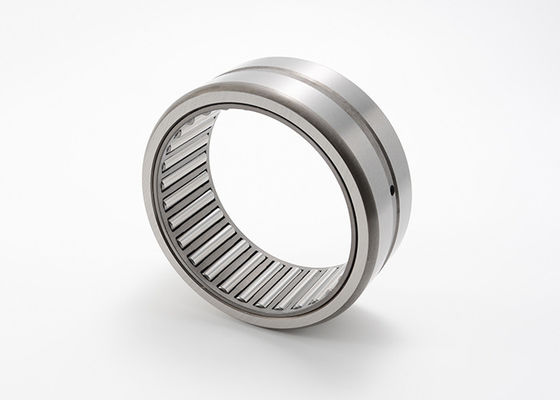

52100 Heavy Duty Needle Bearing Radial Cylindrical Roller Bearings Single Row MR 22 N Narrow Width

52100 Heavy Duty Needle Bearing Radial Cylindrical Roller Bearings Single Row MR 22 N Narrow Width
52100 Heavy Duty Needle Bearing Radial Cylindrical Roller Bearings Single Row MR 22 N Narrow Width 52100 Heavy Duty Needle Bearing Radial Cylindrical Roller Bearings Single Row MR 22 N Narrow Width

Large Image :  52100 Heavy Duty Needle Bearing Radial Cylindrical Roller Bearings Single Row MR 22 N Narrow Width

Product Details:
Place of Origin: China
Brand Name: MOUETTE
Certification: ISO/TS 16949:2009, ISO 9001:2008
Model Number: MR 10 N, MR 12 N, MR 14 N, MR 16 N, MR 18 N, MR 20 N, MR 22 N, MR 24 N, MR 26 N, MR 28 N, MR 30, MR 32 N, MR 36 N, MR 40 N
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD0.5 per Piece (Send inquiry for details)
Packaging Details: Plastic bags, Cartons and European Standard Plywood Case.
Delivery Time: 3-50 working days.(Huge Quantity Stocks Available))
Payment Terms: L/C, T/T, D/A, Western Union, Paypal
Supply Ability: 500,000 Pieces per Month.
Contact Now

52100 Heavy Duty Needle Bearing Radial Cylindrical Roller Bearings Single Row MR 22 N Narrow Width

Description
Name: Radial Heavy Duty Needle Roller Bearing Needle Bearing Type: Machined Race Needle Roller Bearings Without Inner Ring
Bearing Material: 52100 Bearing Steel Enclosure: Open, No Seal
Retainer (Cage): Yes, With Cage Number Of Rows Of Rollers: Single Row
Rolling Elements: Cage Guided Precision Needle Rollers Lubrication Hole Type: Annular Lubrication Groove & Hole
Other Features: 2 Rib Outer Ring | Steel Cage | Heavy Duty | Narrow Width | Oil Hole Customized: Standard Or Customized Are Available
High Light:

52100 heavy duty needle bearing

,

radial cylindrical roller bearings single row

,

radial cylindrical roller bearings MR 22 N

Radial Heavy Duty Needle Roller Bearing No Inner Ring Narrow Width MR 22 N



Unmounted bearing assembly consisting of through hardened precision machinedinner and outer raceways with either full complement or separated (cage) needle rolling elements. Depending on can be land or roller riding and available with several seal options. Machined race needle bearings provide an antifriction solution when supporting rotating shafts with radial loads.



Features

  • Machined race needle bearing
  • Needle rollers retained by a steel cage
  • Designed to accommodate higher speeds and some misalignment
  • Heavy-duty roller bearing
  • Unsealed
  • Annular lubrication groove
  • Narrow width configuration





Radial Heavy Duty Needle Roller Bearing No Inner Ring Narrow Width MR Series Details:



Bearing Code



Inner ring

 B D W W1 H R
+.0000 Tol. +.0000 Tol.

+.000

-0.005

+.000

-0.005

 hole dia. Max.
MR 10 N MI 6 N .3750 -.0004 1.1250 -.0005 .750 .760 5/64 .025
MR 10 N MI 7 N .4375 -.0004 1.1250 -.0005 .750 .760 5/64 .025
MR 10 MI 6 .3750 -.0004 1.1250 -.0005 1.000 1.010 5/64 .025
MR 12 N MI 8 N .5000 -.0004 1.2500 -.0005 .750 .760 5/64 .040
MR 12 N MI 9 N .5625 -.0004 1.2500 -.0005 .750 .760 5/64 .040
MR 12 MI 8 .5000 -.0004 1.2500 -.0005 1.000 1.010 5/64 .040
MR 14 N MI 10 N .6250 -.0004 1.3750 -.0005 .750 .760 5/64 .040
MR 14 N MI 11 N .6875 -.0004 1.3750 -.0005 .750 .760 5/64 .040
MR 14 MI 10 .6250 -.0004 1.3750 -.0005 1.000 1.010 5/64 .040
MR 16 N MI 12 N .7500 -.0004 1.5000 -.0005 .750 .760 5/64 .040
MR 16 N MI 13 N .8125 -.0004 1.5000 -.0005 .750 .760 5/64 .040
MR 16 MI 12 .7500 -.0004 1.5000 -.0005 1.000 1.010 5/64 .040
MR 16 MI 13 .8125 -.0004 1.5000 -.0005 1.000 1.010 5/64 .040
MR 18 N MI 14 N .8750 -.0005 1.6250 -.0005 1.000 1.010 3/32 .040
MR 18 N MI 15 N .9375 -.0005 1.6250 -.0005 1.000 1.010 3/32 .040
MR 18 MI 14 .8750 -.0005 1.6250 -.0005 1.250 1.260 3/32 .040
MR 18 MI 15 .9375 -.0005 1.6250 -.0005 1.250 1.260 3/32 .040
MR 20 N MI 16 N 1.0000 -.0005 1.7500 -.0005 1.000 1.010 3/32 .040
MR 20 MI 16 1.0000 -.0005 1.7500 -.0005 1.250 1.260 3/32 .040
MR 22 N MI 18 N 1.1250 -.0005 1.8750 -.0005 1.000 1.010 3/32 .040
MR 22 MI 17 1.0625 -.0005 1.8750 -.0005 1.250 1.260 3/32 .040
MR 22 MI 18 1.1250 -.0005 1.8750 -.0005 1.250 1.260 3/32 .040
MR 24 N MI 20N 1.2500 -.0005 2.0625 -.0006 1.000 1.010 3/32 .060
MR 24 MI 19 1.1875 -.0005 2.0625 -.0006 1.250 1.260 3/32 .060
MR 24 MI 20 1.2500 -.0005 2.0625 -.0006 1.250 1.260 3/32 .060
MR 26 N MI 21 N 1.3125 -.0005 2.1875 -.0006 1.000 1.010 3/32 .060
MR 26 MI 21 1.3125 -.0005 2.1875 -.0006 1.250 1.260 3/32 .060
MR 26 MI 22 4S 1.3750 -.0005 2.1875 -.0006 1.250 1.260 3/32 .060
MR 28 N MI 24 N 1.5000 -.0005 2.3125 -.0006 1.000 1.010 3/32 .060
MR 28 MI 22 1.3750 -.0005 2.3125 -.0006 1.250 1.260 3/32 .060
MR 28 MI 23 1.4375 -.0005 2.3125 -.0006 1.250 1.260 3/32 .060
MR 28 MI 24 1.5000 -.0005 2.3125 -.0006 1.250 1.260 3/32 .060
MR 30 MI 25 4S 1.5625 -.0005 2.4375 -.0006 1.250 1.260 3/32 .060
MR 31 MI 26 2S 1.6250 -.0005 2.5000 -.0006 1.250 1.260 3/32 .060
MR 32 N MI 26 N 1.6250 -.0005 2.5625 -.0006 1.000 1.010 3/32 .060
MR 32 MI 25 1.5625 -.0005 2.5625 -.0006 1.250 1.260 3/32 .060
MR 32 MI 26 1.6250 -.0005 2.5625 -.0006 1.250 1.260 3/32 .060
MR 32 MI 27 1.6875 -.0005 2.5625 -.0006 1.250 1.260 3/32 .060
MR 36 N MI 28 N 1.7500 -.0005 3.0000 -.0006 1.500 1.510 1/8 .060
MR 36 MI 28 1.7500 -.0005 3.0000 -.0006 1.750 1.760 1/8 .060
MR 36 MI 30 1.8750 -.0005 3.0000 -.0006 1.750 1.760 1/8 .060
MR 40 N MI 32 N 2.0000 -.0005 3.2500 -.0008 1.500 1.510 1/8 .080
MR 40 MI 31 1.9375 -.0005 3.2500 -.0008 1.750 1.760 1/8 .080
MR 40 MI 32 2.0000 -.0005 3.2500 -.0008 1.750 1.760 1/8 .080
MR 40 MI 34 2.1250 -.0005 3.2500 -.0008 1.750 1.760 1/8 .080





Bearing Code



INNER RING

 SHAFT DIA. Basic Load Rating
ROTAT. SHAFT Tol. STAT SHAFT Tol. STA. DYN.
MR 10 N MI 6 N .3755 -.0005 .3747 -.0005 4300 4320
MR 10 N MI 7 N .4380 -.0005 .4372 -.0005 4300 4320
MR 10 MI 6 .3755 -.0005 .3747 -.0005 6500 5930
MR12 N MI 8 N .5005 -.0005 .4997 -.0005 5400 4990
MR 12 N MI 9 N .5630 -.0005 .5623 -.0005 5400 4990
MR 12 MI 8 .5005 -.0005 .4997 -.0005 8100 6830
MR 14 N MI 10 N .6255 -.0005 .6247 -.0005 6000 5280
MR 14 N MI 11 N .6880 -.0005 .6872 -.0005 6000 5280
MR 14 MI 10 .6255 -.0005 .6247 -.0005 9000 7240
MR 16 N MI 12 N .7505 -.0005 .7497 -.0005 7100 5840
MR 16 N MI 13 N .8129 -.0005 .8121 -.0005 7100 5840
MR 16 MI 12 .7505 -.0005 .7497 -.0005 10600 8000
MR 16 MI 13 .8129 -.0005 .8121 -.0005 10600 8000
MR 18 N MI 14 N .8754 -.0005 .8746 -.0005 12200 8720
MR 18 N MI 15 N .9379 -.0005 .9371 -.0005 12200 8720
MR 18 MI 14 .8754 -.0005 .8746 -.0005 16300 10900
MR 18 MI 15 .9379 -.0005 .9371 -.0005 16300 10900
MR 20 N MI 16 N 1.0004 -.0005 .9996 -.0005 13100 9020
MR 20 MI 16 1.0004 -.0005 .9996 -.0005 17500 11300
MR 22 N MI 18 N 1.1255 -.0005 1.1246 -.0005 14700 9640
MR 22 MI 17 1.0630 -.0005 1.0621 -.0005 19700 12100
MR 22 MI 18 1.1255 -.0005 1.1246 -.0005 19700 12100
MR 24 N MI 20 N 1.2505 -.0005 1.2496 -.0005 15500 10300
MR 24 MI 19 1.1880 -.0005 1.1871 -.0005 20800 13000
MR 24 MI 20 1.2505 -.0005 1.2496 -.0005 20800 13000
MR 26 N MI 21 N 1.3130 -.0005 1.3121 -.0005 16400 1060
MR 26 MI 21 1.3130 -.0005 1.3121 -.0005 22100 13300
MR 26 MI 22 4S 1.3755 -.0005 1.3746 -.0005 22100 13300
MR 28 N MI 24 N 1.5005 -.0005 1.4996 -.0005 18100 11200
MR 28 MI 22 1.3755 -.0005 1.3746 -.0005 24400 14100
MR 28 MI 23 1.4380 -.0005 1.4371 -.0005 24400 14100
MR 28 MI 24 1.5005 -.0005 1.4996 -.0005 24400 14400
MR 30 MI 25 4S 1.5630 -.0005 1.5621 -.0005 25600 14400
MR 31 MI 26 2S 1.6255 -.0005 1.6246 -.0005 22400 12400
MR 32 N MI 26 N 1.6255 -.0005 1.6246 -.0005 20700 12000
MR 32 MI 25 1.5630 -.0005 1.5621 -.0005 27900 15200
MR 32 MI 26 1.6255 -.0005 1.6246 -.0005 27900 15200
MR 32 MI 27 1.6880 -.0005 1.6871 -.0005 27900 15200
MR 36 N MI 28 N 1.7505 -.0005 1.7496 -.0005 39100 22400
MR 36 MI 28 1.7505 -.0005 1.7496 -.0005 47400 26000
MR 36 MI 30 1.8755 -.0005 1.8746 -.0005 47400 26000
MR 40 N MI 32 N 2.0005 -.0005 1.9996 -.0005 42900 23400
MR 40 MI 31 1.9380 -.0005 1.9371 -.0005 52100 27200
MR 40 MI 32 2.0005 -.0005 1.9996 -.0005 52100 27200
MR 40 MI 34 2.1258 -.0005 2.1247 -.0005 52100 27200



52100 Heavy Duty Needle Bearing Radial Cylindrical Roller Bearings Single Row MR 22 N Narrow Width 0

52100 Heavy Duty Needle Bearing Radial Cylindrical Roller Bearings Single Row MR 22 N Narrow Width 1



52100 Heavy Duty Needle Bearing Radial Cylindrical Roller Bearings Single Row MR 22 N Narrow Width 2
