Machined NA6904 2RS RNA 4908 RS Needle Ball Bearing With Seals

Large Image : Machined NA6904 2RS RNA 4908 RS Needle Ball Bearing With Seals

Product Details:

Place of Origin:	China
Brand Name:	MOUETTE
Certification:	ISO/TS 16949:2009, ISO 9001:2008
Model Number:	RNA4901-2RS, RNA4904-2RS, RNA4908-2RS, RNA4910-2RS, RNA4904RS, RNA4909RS, NA4901RS, NA4905RS, NA4912RS, NA6901-2RS, NA6905-2RS, RNA6904-2RS, RNA6908-2RS

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	USD0.5 per Piece
Packaging Details:	Plastic bags, Cartons and European Standard Plywood Case.
Delivery Time:	3-45 working days.(Huge Quantity Stocks Available))
Payment Terms:	L/C, T/T, D/A, Western Union, Paypal
Supply Ability:	500,000 Pieces per Month.

Contact Now

Machined NA6904 2RS RNA 4908 RS Needle Ball Bearing With Seals

Description

Name:	Machined Solid Needle Roller Bearings With Seals	Bearing Type:	Machined Bearing With Inner Ring / Machined Bearing Without Inner Ring
Outer Ring Type:	Machined (solid)	Bearing Material:	Chrome Steel 100Cr6
Sealing Solutions:	Seal On One Side Or Seal On Both Sides	Sealing Type:	Contact
Relubrication Feature::	With Lubrication Groove & Hole	Tolerance Class:	Normal
Number Of Flanges, Outer Ring::	2	Number Of Rows:	1
Operating Temperature Range:	-30°C To 120°C	Customized:	Standard Or Customized Are Available
High Light:	NA6904 2RS needle ball bearing , RNA 4908 RS needle ball bearing , Machined na 6904 bearing

Machined Solid Needle Roller Bearings With Seals NA6904 2RS RNA 4908 RS

Needle roller bearings are used when the load carrying capacity or accuracy of drawn cup needle roller bearings with open ends is no longer sufficient and the high load capacity of cylindrical roller bearings is not yet required.
Needle roller bearings place lower requirements on the dimensional accuracy, geometrical accuracy and hardness of the adjacent construction than needle roller bearings with open ends and with closed end.

The standard bearings are:

needle roller bearings with ribs, with or without inner ring
needle roller bearings without ribs, with or without inner ring.

Including the models of RNA...RS, RNA...2RS, NK...RS, NK...2RS; NA...RS, NA...2RS; NKI...RS, NKI...2RS

Bearings without an inner ring are highly suitable for bearing arrangements with particularly compact radial dimensions, if the shaft raceway can be hardened and ground.
Bearings with an inner ring are used if the shaft cannot be configured as a rolling bearing raceway.

Machined Solid Needle Roller Bearings With Seals Specifications:

Shaft Diameter	Bearing Designation		Mass Approx	Boundary Dimensions F W					Basic Load Rating		Limiting Speed
Shaft Diameter	Current Code	Original Code	Mass Approx	d	Fw F	D	C	B	Dynamic	Static	Oil
mm	Current Code	Original Code	g	mm					N		rpm
Without IR
14	RNA4900RS	RNA4900-2RS	16		14	22	13		4560	4660	13000
16	RNA4901RS	RNA4901-2RS	18		16	24	13		4950	5800	12000
20	RNA4902RS	RNA4902-2RS	21.5		20	28	13		5980	9500	10000
22	RNA4903RS	RNA4903-2RS	23		22	30	13		6050	10100	9000
25	RNA4904RS	RNA4904-2RS	56		25	37	17		14900	17500	7500
30	RNA4905RS	RNA4905-2RS	60		30	42	17		16300	21500	6500
35	RNA4906RS	RNA4906-2RS	69		35	47	17		20050	24900	5500
42	RNA4907RS	RNA4907-2RS	107		42	55	20		22500	37000	4800
48	RNA4908RS	RNA4908-2RS	154		48	62	22		33050	50900	4200
52	RNA4909RS	RNA4909-2RS	157		52	68	22		34800	56800	3900
58	RNA4910RS	RNA4910-2RS	160		58	72	22		37800	61500	3500
With IR
10	NA4900RS	NA4900-2RS	24.5	10	14	22	13	14	4560	4660	13000
12	NA4901RS	NA4901-2RS	27.5	12	16	24	13	14	4950	5800	12000
15	NA4902RS	NA4902-2RS	37	15	20	28	13	14	5980	9500	10000
17	NA4903RS	NA4903-2RS	40	17	22	30	13	14	6050	10100	9000
20	NA4904RS	NA4904-2RS	80	20	25	37	17	18	14900	17500	7500
25	NA4905RS	NA4905-2RS	89.5	25	30	42	17	18	16300	21500	6500
30	NA4906RS	NA4906-2RS	104	30	35	47	17	18	20050	24900	5500
35	NA4907RS	NA4907-2RS	175	35	42	55	20	21	22500	37000	4800
40	NA4908RS	NA4908-2RS	252	40	48	62	22	23	33050	50900	4200
45	NA4909RS	NA4909-2RS	290	45	52	68	22	23	34800	56800	3900
50	NA4910RS	NA4910-2RS	295	50	58	72	22	23	37800	61500	3500
55	NA4911RS	NA4911-2RS		55		80	24	25
60	NA4912RS	NA4912-2RS		60		85	25	26
70	NA4914RS	NA4914-2RS		70		100	31	32
69 series
12	NA6901-2RS	RNA6901-2RS		12	16	24	22	23
17	NA6903-2RS	RNA6903-2RS		17	22	30	23	24
20	NA6904-2RS	RNA6904-2RS		20	25	37	30	31
25	NA6905-2RS	RNA6905-2RS		25	30	42	30	31
40	NA6908-2RS	RNA6908-2RS		40	48	62	40	41

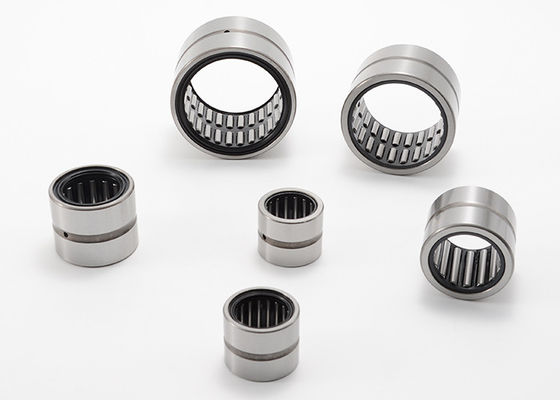

Machined NA6904 2RS RNA 4908 RS Needle Ball Bearing With Seals 0

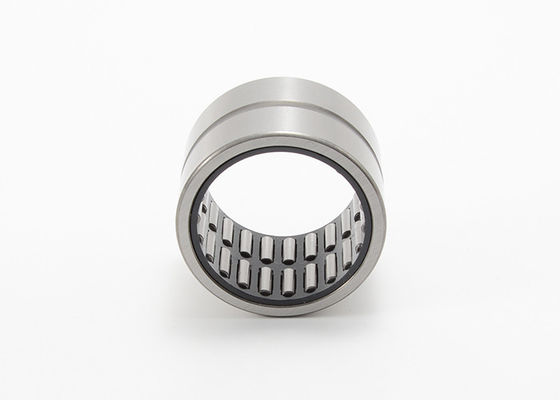

Machined NA6904 2RS RNA 4908 RS Needle Ball Bearing With Seals 1

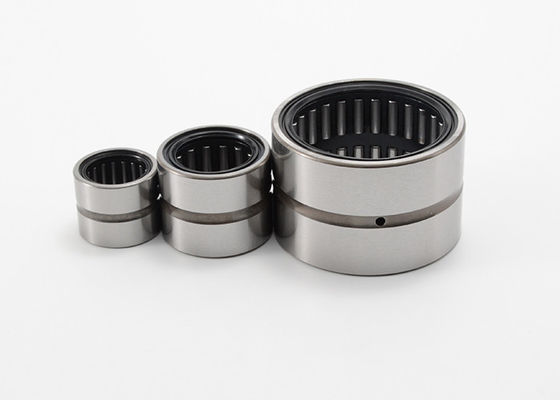

Machined NA6904 2RS RNA 4908 RS Needle Ball Bearing With Seals 2
