RNAO16X24X13 Machined Needle Roller Bearing Without Ribs And Inner Ring

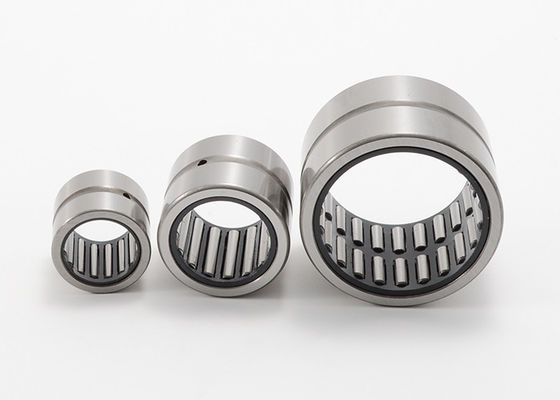

Large Image : RNAO16X24X13 Machined Needle Roller Bearing Without Ribs And Inner Ring

Product Details:

Place of Origin:	China
Brand Name:	MOUETTE
Certification:	ISO/TS 16949:2009, ISO 9001:2008
Model Number:	RNAO6X13X8TN, RNAO6X12X8TN, RNAO7X14X8, RNAO8X15X10TN, RNAO10X 17X10TN, RNAO12X22X12TN, RNAO16X24X13, RNAO20X28X26, RNAO22X30X26, RNAO30X40X26

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	USD0.5 per Piece
Packaging Details:	Plastic bags, Cartons and European Standard Plywood Case.
Delivery Time:	3-45 working days.(Huge Quantity Stocks Available))
Payment Terms:	L/C, T/T, D/A, Western Union, Paypal
Supply Ability:	500,000 Pieces per Month.

Contact Now

RNAO16X24X13 Machined Needle Roller Bearing Without Ribs And Inner Ring

Description

Name:	Machined Needle Roller Bearing	Needle Bearing Type:	Needle Roller Bearings Without Ribs And Inner Ring
Series:	RNAO	Measurement System:	Metric
Closure Type:	Open, No Seal	Number Of Row:	Single Row / Double Row Are Available
Bearing Material:	Chrome Steel 100Cr6, GCr15, AISI 52100	Cage Material:	Polyamide 66 / Steel Cage
Rolling Elements:	Needle Roller With Cage	Flanges:	No Flange
Lubrication Hole Type:	Lubrication Groove & Hole	Operating Temperature Range:	-20 To +120 °C
High Light:	RNAO16X24X13 machined needle roller bearing , machined needle roller bearing Without Ribs , needle roller bearing without inner ring

RNAO16X24X13 Machined Needle Roller Bearing Without Ribs And Inner Ring

Needle roller bearings are used when the load carrying capacity or accuracy of drawn cup needle roller bearings with open ends is no longer sufficient and the high load capacity of cylindrical roller bearings is not yet required.
Needle roller bearings place lower requirements on the dimensional accuracy, geometrical accuracy and hardness of the adjacent construction than needle roller bearings with open ends and with closed end.

The standard bearings are:

needle roller bearings with ribs, with or without inner ring
needle roller bearings without ribs, with or without inner ring.

Bearings without an inner ring are highly suitable for bearing arrangements with particularly compact radial dimensions, if the shaft raceway can be hardened and ground.
Bearings with an inner ring are used if the shaft cannot be configured as a rolling bearing raceway.

Needle roller bearings RNAO Series, without ribs, without inner ring

Specifications:

Needle Bearing Type	Machined Bearing with No Inner Ring
Closure Type	Open
Operating Temperature Range	-20 to +120 °C
Cage Material	Polyamide 66 / Steel Cage
Number of Element Row	Single row / Double row are available
Lubrication Hole Type	Lubrication Groove & Hole

Machined Needle Roller Bearing Without Ribs, Without Inner Ring RNAO Series Specifications:

Shaft Diameter	Bearing Designation	Mass Approx	Boundary Dimensions			Basic Load Rating		Limiting Speed
Shaft Diameter		Mass Approx	FW	D	C	Dynamic	Static	Oil
mm		g	mm			N		rpm
5	RNAO5X10X8	2.8	5	10	8	2050	1720	27800
6	RNAO6X13X8-TV	6	6	13	8	2300	1880	30000
6	RNAO6X12X8-TV	6	6	12	8	2600	2280	32000
7	RNAO7X14X8-TV	5	7	14	8	2250	1950	31000
7	RNAO7X14X8	7	7	14	8	2850	2650	31000
8	RNAO8X15X10-TV	7.8	8	15	10	3050	3920	28000
8	RNAO8X19X9		8	19	9
10	RNAO10X 17X10-TV	9.1	10	17	10	3960	4500	20000
12	RNAO12X19X13.5-TV	14	12	19	13.5	5400	7500	22000
12	RNAO12X22X12-TV	17.9	12	22	12	8950	8000	23000
15	RNAO15X 23X13	18.5	15	23	13	6500	8900	21100
16	RNAO16X24X13	19.8	16	24	13	6200	8400	21100
	RNAO16X 24X20	29.7	16	24	20	10200	14800	21100
	RNAO16X28X12	29.7	16	28	12	9500	10500	18000
17	RNAO17X25X13	21	17	25	13	9400	11600	18000
17	RNAO17X35X10		17	35	10
18	RNAO18X30X24	65	18	30	24	12100	16500	17600
18	RNAO18X30X24K	69	18	30	24	21900	30000	20000
20	RNAO20X28X13	24.5	20	28	13	7800	9600	16000
	RNAO20X28X26	48.1	20	28	26	10080	20500	16000
	RNAO20X32X12	36.6	20	32	12	10100	14100	16000
21	RNAO21X 29X30		21	29	30
22	RNAO22X35X16	58	22	35	16	10000	15500	16000
	RNAO22X30X13	27	22	30	13	10400	15900	14000
	RNAO22X30X26		22	30	26
25	RNAO25X35X17	49	25	35	17	10900	22000	15020
	RNAO25X35X26	67.8	25	35	26	12400	25000	15020
	RNAO25X37X16	59.2	25	37	16	15000	20900	12000
	RNAO25X37X32	108	25	37	32	25000	38900	12000
	RNAO25X35X16		25	35	16
26	RNAO26X39X13	59	26	39	13	87600	10200	15000
28	RNAO28X40X16		28	40	16
30	RNAO30X40X17	59	30	40	17	12600	24000	10500
	RNAO30X40X26	92	30	40	26	16000	32000	10500
	RNAO30X42X16	49.9	30	42	16	13000	23200	10500
	RNAO30X42X32	126	30	42	32	29500	47000	10500
35	RNAO35X45X13	50	35	45	13	10200	22000	10000
	RNAO35X45X17	60	35	45	17	17800	24500	10000
	RNAO35X45X26	88	35	45	26	20500	40000	10000

35	RNAO35X47X16	75	35	47	16	20400	31500	10000
	RNAO35X47X18	86	35	47	18	22500	35000	10000
	▲RNAO35X47X32	149	35	47	32	32000	55000	10000
	RNAO35X47X17		35	47	17
37	RNAO37X52X18	115	37	52	18	18900	35500	8800
37	RNAO37X47X13		37	47	13
40	RNAO40X50X17	72	40	50	17	15400	29880	8800
	▲RNAO40X50X34	151	40	50	34	25100	57200	11000
	RNAO40X55X20	144	40	55	20	26300	46100	10000
	▲RNAO40X55X40	268	40	55	40	54700	87000	10000
42	RNAO42X57X20	132	42	57	20	26700	43700	10000
45	RNAO45X55X17	82.5	45	55	17	18000	36000	9000
45	▲RNAO45X 62X40	368	45	62	40	42200	85050	9000
50	RNAO50X62X20	140	50	62	20	20600	46860	7500
	RNAO50X65X20	162	50	65	20	23200	40540	7000
	▲RNAO50X65X40	321	50	65	40	39000	80600	7000
55	RNAO55X68X20	157	55	68	20	22400	52000	6500
60	RNAO60X78X20	253	60	78	20	28500	65300	5500
60	▲RNAO60X78X40	368	60	78	40	45000	99000	5500
65	RNAO65X85X30	394	65	85	30	37000	99000	4900
65	▲RNAO65X85X60	464	65	85	60	57000	123000	6500
70	RNAO70X90X30	488	70	90	20	40000	105000	5100
70	▲RNAO70X90X60		70	90	60
75	RNAO75X95X60		75	95	60
80	RNAO80X100X30	527	80	100	30	52000	139000	4900
	▲RNAO80X95X56		80	95	56	52000	139000	4800
	RNAO80X100X60		80	100	60
85	RNAO85X105X25	449	85	105	25	48600	106000	4900
90	RNAO90X105X26	323	90	105	26	42500	129000	4900
90	RNAO90X110X30	600	90	110	30	58000	129000	4900
100	RNAO100X120X30	671	100	120	30	58100	152000	4900
130	RNAO130X150X24		130	150	24	50000	158000	3100

Note:▲ double row

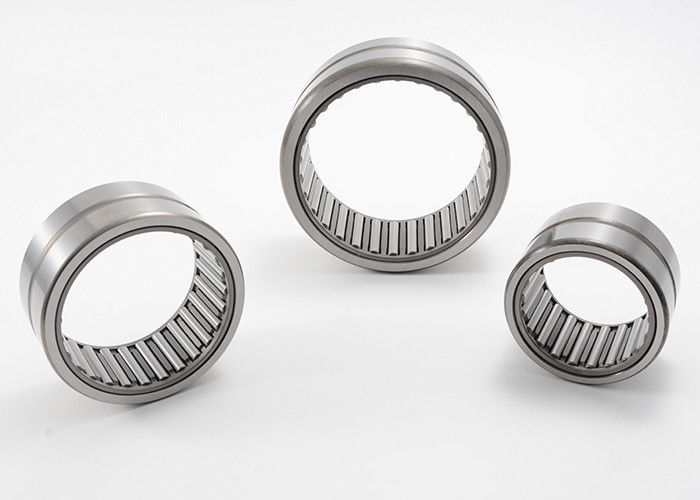

RNAO16X24X13 Machined Needle Roller Bearing Without Ribs And Inner Ring 2
