Product Details:
|
| Name: | Combined Needle Roller / Angular Contact Ball Bearing | Bearing Type: | Roller Bearing |
|---|---|---|---|
| Axial Load Capability: | Single-direction | Bearing Material: | Bearing Steel 100Cr6, GCr15, AISI 52100 |
| Inch - Metric: | Metric Sizes | Radial Internal Clearance: | With Cage |
| Rolling Element (thrust Part): | Balls | Thrust Part: | With Cage |
| Tolerance Class: | ABEC 1 | ISO P0 | Compatible Lubricant Type: | Grease |

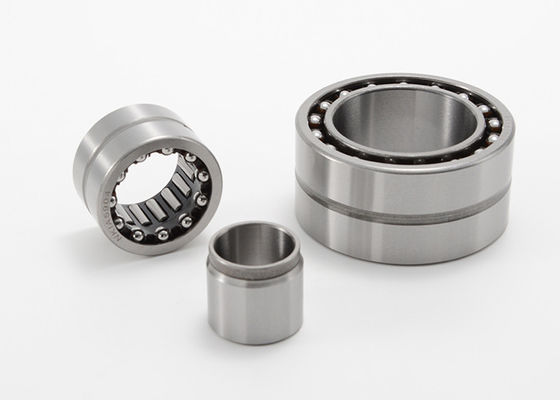

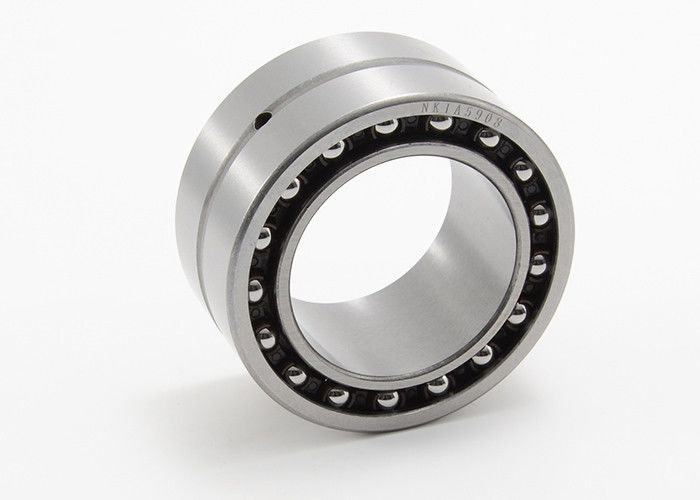

Combined Needle Roller And Angular Contact Ball Bearing For Axial Loads NKIA5910
Combined needle roller / angular contact ball bearing for axial loads in one direction, NKIA Series
These bearings consist of a radial needle roller bearing combined with an angular contact ball bearing. Together they can accommodate both heavy radial loads and light axial loads in one direction. In addition, they can operate at high speeds. Their low cross-sectional height makes the bearings particularly suitable for applications where other types of locating bearing arrangements occupy too much space.
Combined needle roller / angular contact ball bearing NKIA Series specifications:
| Bearing Part Number | Shaft d mm |
OD D mm |
Width B mm |
Weight g |
Dyn. Cap. Radial N |
Stat. Cap. Radial N |
Dyn. Cap. Axial N |
Stat. Cap. Axial N |
Speed Limit rpm |
| NKIA 5901 NKIA 5902 NKIA 5903 NKIA 5904 NKIA 59/22 |
12 15 17 20 22 |
24 28 30 37 39 |
16 18 18 23 23 |
40 50 56 103 118 |
7600 10600 11000 21000 22800 |
8300 13600 14600 25500 29500 |
2160 2340 2500 3950 4250 |
2250 2750 3200 4850 5600 |
24000 22000 21000 17000 16000 |
| NKIA 5905 NKIA 5906 NKIA 5907 NKIA 5908 NKIA 5909 |
25 30 35 40 45 |
42 47 55 62 68 |
23 23 27 30 30 |
130 147 243 315 375 |
23600 25000 31500 43000 45000 |
31500 35500 50000 67000 73000 |
4350 4750 6000 7400 7700 |
6100 7300 9800 12700 14000 |
15000 13000 11000 9500 8500 |
| NKIA 5910 NKIA 5911 NKIA 5912 NKIA 5913 NKIA 5914 |
50 55 60 65 70 |
72 80 85 90 100 |
30 34 34 34 40 |
380 550 590 635 980 |
47000 58000 60000 61000 84000 |
80000 100000 108000 112000 156000 |
8100 9700 10000 10300 13500 |
15900 19200 20800 22300 29000 |
8000 7500 7000 6500 6000 |
Bearing Part Number |
Shaft d inch |
OD D inch |
Width B inch |
Weight lbs |
Dyn. Cap. Radial lbf |
Stat. Cap. Radial lbf |
Dyn. Cap. Axial lbf |
Stat. Cap. Axial lbf |
Speed Limit rpm |
| NKIA 5901 NKIA 5902 NKIA 5903 NKIA 5904 NKIA 59/22 |
0.472 0.591 0.669 0.787 0.866 |
0.945 1.102 1.181 1.457 1.535 |
0.630 0.709 0.709 0.906 0.906 |
0.088 0.11 0.123 0.227 0.26 |
1,710 2,380 2,470 4,700 5,100 |
1,870 3,050 3,300 5,700 6,600 |
485 530 560 890 960 |
510 620 720 1,090 1,260 |
24000 22000 21000 17000 16000 |
| NKIA 5905 NKIA 5906 NKIA 5907 NKIA 5908 NKIA 5909 |
0.984 1.181 1.378 1.575 1.772 |
1.654 1.850 2.165 2.441 2.677 |
0.906 0.906 1.063 1.181 1.181 |
0.287 0.324 0.536 0.695 0.827 |
5,300 5,600 7,100 9,700 10,100 |
7,100 8,000 11,200 15,100 16,400 |
980 1,070 1,350 1,660 1,730 |
1,370 1,640 2,200 2,850 3,150 |
15000 13000 11000 9500 8500 |
| NKIA 5910 NKIA 5911 NKIA 5912 NKIA 5913 NKIA 5914 |
1.969 2.165 2.362 2.559 2.756 |
2.835 3.150 3.347 3.543 3.937 |
1.181 1.339 1.339 1.339 1.575 |
0.838 1.213 1.301 1.4 2.161 |
10,600 13,000 13,500 13,700 18,900 |
18,000 22,500 24,300 25,000 35,000 |
1,820 2,180 2,250 2,320 3,050 |
3,600 4,300 4,700 5,000 6,500 |
8000 7500 7000 6500 6000 |
