Metric Needles Roller Thrust Bearing Bearing steel Thin Series AX1528

Name: Metric Needles Roller Thrust Bearing Bearing steel Thin Series AX1528
Brand: MOUETTE
SKU: AX 5 13, AX 6 14, AX 7 15, AX 8 16, AX 9 17, AX 10 22, AX 12 26, AX 13 26, AX 15 28, AX 17 30, AX 19 32, AX 20 35, AX 25 42, AX 27 44, AX 30 47, AX 35 52, AX 35 53, AX 40 60, AX 45 65
Price: 0.5 USD
Availability: InStock
Rating: 4.6 (127 reviews)

All Products

Cylindrical Roller Bearing
(22)

Needle Roller Bearing
(43)

Precision Roller Bearing
(25)

Stud Type Cam Follower
(14)

Yoke Type Cam Followers
(10)

One Way Clutch Bearing
(33)

Pillow Block Bearings
(21)

Plastic Pillow Block
(9)

Precision Insert Bearing
(4)

Bearing Inner Ring
(10)

Needle Roller Pin
(3)

Precision Steel Balls
(6)

I'm Online Chat Now

Metric Needles Roller Thrust Bearing Bearing steel Thin Series AX1528

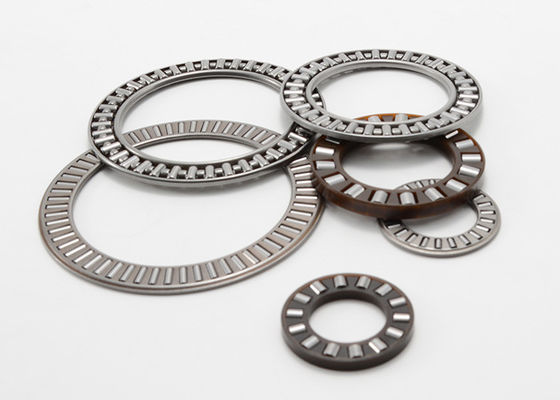

Large Image : Metric Needles Roller Thrust Bearing Bearing steel Thin Series AX1528

Product Details:

Place of Origin:	China
Brand Name:	MOUETTE
Certification:	ISO/TS 16949:2009, ISO 9001:2008
Model Number:	AX 5 13, AX 6 14, AX 7 15, AX 8 16, AX 9 17, AX 10 22, AX 12 26, AX 13 26, AX 15 28, AX 17 30, AX 19 32, AX 20 35, AX 25 42, AX 27 44, AX 30 47, AX 35 52, AX 35 53, AX 40 60, AX 45 65

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	USD0.5 per Piece
Packaging Details:	Plastic bags, Cartons and European Standard Plywood Case.
Delivery Time:	3-45 working days.(Huge Quantity Stocks Available))
Payment Terms:	L/C, T/T, D/A, Western Union, Paypal
Supply Ability:	500,000 Pieces per Month.

Contact Now

Metric Needles Roller Thrust Bearing Bearing steel Thin Series AX1528

Description

Basic Product Description:	Needles Roller Thrust Bearing	Brand:	Neutral / Customized
Measurement:	Metric	Bearing Material:	Bearing Steel
Rolling Elements:	Needle Roller With Cage	Number Of Row:	1
Seals Type:	Open	Size Range:	Fw Size From 5mm To 45mm
Other Features:	Thin Series / High Load Bearing	Customized:	Standard Or Customized Are Available

Metric Needles Roller Thrust Bearing Bearing steel Thin Series AX1528

AX Thin Series Needle Roller Thrust Bearings:

Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence.

Benefits:

Cost effective thrust solution, wide range, low profile, high load bearing.

Metric Needles Roller Thrust Bearing Bearing steel AX Thin Series Details:

Shaft Diameter	Needle Roller Thrust Bearing Part Number		Mass Approx	Boundary Dimensions						Basic Load Rating		Limiting Speed
Shaft Diameter	AX Baureihe dunn	AX Baureihe dick	Mass Approx	Di	De	h	d1		d2	Dynamic	Static	Min-1
mm	AX Baureihe dunn	AX Baureihe dick	g	mm						N		Min-1
5	AX 5 13	AX 3.5 5 13	1.3	5	13	2.3	6.3	10.9		3000	5700	25000
5	AX 5 13	AX 3.5 5 13	2.3	5	13	3.5	6.3	10.9		3000	5700	25000
6	AX 6 14	AX 3.5 6 14	1.4	6	14	2.3	7.3	11.9		3150	6350	22000
6	AX 6 14	AX 3.5 6 14	2.4	6	14	3.5	7.3	11.9		3150	6350	22000
7	AX 7 15	AX 3.5 7 15	1.7	7	15	2.3	8.3	12.9		3550	7600	22000
7	AX 7 15	AX 3.5 7 15	2.9	7	15	3.5	8.3	12.9		3550	7600	22000
8	AX 8 16	AX 3.5 8 16	1.7	8	16	2.3	9.3	13.9		3700	8300	22000
8	AX 8 16	AX 3.5 8 16	3	8	16	3.5	9.3	13.9		3700	8300	22000
9	AX 9 17	AX 3.5 9 17	2.1	9	17	2.3	10.3	14.9		4050	9500	19000
9	AX 9 17	AX 3.5 9 17	3.5	9	17	3.5	10.3	14.9		4050	9500	19000
10	AX 10 22	AX 4 10 22	4	10	22	2.8	12	18.6		5000	10900	15500
10	AX 10 22	AX 4 10 22	6.5	10	22	4	12	18.6		5000	10900	15500
12	AX 12 26	AX 4 12 26	6	12	26	2.8	15	22.6		6900	17700	13000
12	AX 12 26	AX 4 12 26	10	12	26	4	15	22.6		6900	17700	13000
13	AX 13 26	AX 4 13 26	6	13	26	2.8	15	22.6		6900	17700	13000
13	AX 13 26	AX 4 13 26	9.8	13	26	4	15	22.6		6900	17700	11300
15	AX 15 28	AX 4 15 28	6.9	15	28	2.8	17	24.6		7400	20000	11500
15	AX 15 28	AX 4 15 28	9	15	28	4	17	24.6		7400	20000	11500
17	AX 17 30	AX 4 17 30	7.6	17	30	2.8	19	26.6		7800	22000	10500
17	AX 17 30	AX 4 17 30	10	17	30	4	19	26.6		7800	22000	10500
19	AX 19 32	AX 4 19 32	8.6	19	32	2.8	21	28.6		8000	23300	10000
19	AX 19 32	AX 4 19 32	13	19	32	4	21	28.6		8000	23300	10000
20	AX 20 35	AX 5 20 35	10.2	20	35	2.8	22	31.6		11800	39000	9000
20	AX 20 35	AX 5 20 35	18	20	35	5	22	31.6		11800	39000	9000
25	AX 25 42	AX 5 25 42	11.5	25	42	2.8	27.7	37.4		13300	49000	7500
25	AX 25 42	AX 5 25 42	25	25	42	5	27.7	37.4		13300	49000	7500
27	AX 27 44		12.1	27	44	2.8	30	39.5		13700	52000	7200
30	AX 30 47	AX 5 30 47	13.7	30	47	2.8	32.7	42.4		14500	57000	6500
30	AX 30 47	AX 5 30 47	29	30	47	5	32.7	42.4		14500	57000	6500
35	AX 35 52	AX 5 35 52	18.5	35	52	2.8	37.2	49		18900	84000	5500
	AX 35 52	AX 5 35 52	35	35	52	5	37.2	49		18900	84000	5500
	AX 35 53	AX 5 35 53	19.3	35	53	2.8	37.2	49		18900	84000	5500
	AX 35 53	AX 5 35 53	36	35	53	5	37.2	49		18900	84000	5500
40	AX 40 60	AX 5 40 60	23.9	40	60	2.8	43	54.9		20400	96000	5000
40	AX 40 60	AX 5 40 60	45	40	60	5	43	54.9		20400	96000	5000
45	AX 45 65	AX 5 45 65	24.7	45	65	2.8	48	59.9		21800	109000	4500
45	AX 45 65	AX 5 45 65	50	45	65	5	48	59.9		21800	109000	4500

Metric Needles Roller Thrust Bearing Bearing steel Thin Series AX1528 0

Metric Needles Roller Thrust Bearing Bearing steel Thin Series AX1528 1

Metric Needles Roller Thrust Bearing Bearing steel Thin Series AX1528 2
