Needle Roller Thrust Bearing With Centring Flange And Axial Bearing Washer AXW20

Large Image : Needle Roller Thrust Bearing With Centring Flange And Axial Bearing Washer AXW20

Product Details:

Place of Origin:	China
Brand Name:	MOUETTE
Certification:	ISO/TS 16949:2009, ISO 9001:2008
Model Number:	AXW10, AXW12, AXW15, AXW15, AXW20, AXW25, AXW30, AXW35, AXW40, AXW45, AXW50

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	USD0.2 per Piece
Packaging Details:	Plastic bags, Cartons and European Standard Plywood Case.
Delivery Time:	3-45 working days.(Huge Quantity Stocks Available))
Payment Terms:	L/C, T/T, D/A, Western Union, Paypal
Supply Ability:	500,000 Pieces per Month.

Contact Now

Needle Roller Thrust Bearing With Centring Flange And Axial Bearing Washer AXW20

Description

Name:	Needle Roller Thrust Bearing	Bearing Part:	Bearing With A Centring Flange
Cage:	Sheet Steel	Material:	Alloy Bearing Steel
Roller Grade:	G2	Measurement System:	Metric
Bore Type:	Round Bore	End Type:	Open End
Tolerance:	Iso Class 0 (RBEC1)	Capacity:	Standard Capacity

Needle Roller Thrust Bearing With Centring Flange And Axial Bearing Washer AXW20

Needle roller thrust bearing with centring flange, single direction

Needle roller thrust bearings are designed to accommodate heavy axial loads and peak loads in one direction. They provide a high degree of stiffness within a minimum axial space. The bearings consist of a needle roller and cage thrust assembly and a thrust washer with a centring flange. The flange facilitates mounting and accurately centres the washer radially. To accommodate combined radial and axial loads, the bearings can be combined with drawn cup needle roller bearings or needle roller bearings with machined rings.

About AXW Series:

Thrust needle roller bearing for applications with high axial loads in one direction
Thrust bearing washer has centering spigot for piloting cage
Steel cage guides and evenly spaces rollers for reduced friction, vibration, and noise
Through-hardened, high-carbon chromium steel rollers for heat tolerance and durability under heavy loads

Needle Roller Thrust Bearing With Centring Flange Specifications:

Shaft Diameter	Bearing Designation	Mass	Dimension					Track size		Basic Load Rating		Limiting Speed r/min
Shaft Diameter		Mass	Dcl	D1	D	B	B1	Eb	Ea	C	Co
mm		g								KN
10	AXW10	8.3	10	14	27	3.2	3	12	23	9.2	25.5	16000
12	AXW12	9.1	12	16	29	3.2	3	14	25	9.9	29	14000
15	AXW15	10	10	15	21	3.2	3.5	17	27	11.3	36	13000
17	AXW17	11	17	23	33	3.2	3.5	19	29	11.9	39.5	12000
20	AXW20	14	20	26	38	3.2	3.5	22	34	13.1	46.5	10000
25	AXW25	20	25	32	45	3.2	4	29	41	14.7	58	8000
30	AXW30	22	30	37	50	3.2	4	34	46	16.3	70	7000
35	AXW35	27	35	42	55	3.2	4	39	51	17.8	81	6500
40	AXW40	39	40	47	63	4.2	4	45	58	28	114	5500
45	AXW45	43	45	52	68	4.2	4	50	63	30	128	5000
50	AXW50	49	50	58	73	4.2	4.5	55	68	32	143	4700

CONTINUED FROM ABOVE

Bearing washer and bearing suitable for combination
AS	LS	WS811	HK	HK_RS	BK	NK NKS RNA49 RNA69	NKI NKIS NA49 NA69
AS1024	LS1024	•	HK1010, HK1012	•	BK1010, BK1012	NK7/10TN	•
AS1226	LS1226	•	HK1210	•	BK1210	NK9/12TN	NKI6/12TN
AS1528	LS1528	WS81102	HK1512, HK1516	HK1514RS	BK1512, BK1516	•	•
AS1730	LS1730	WS81103	HK1712	•	•	NK15/16, NK15/20	•
AS2035	LS2035	WS81104	HK2012, HK2016	HK2018RS	BK2016	NK18/16, NK18/20	•
AS2542	LS2542	WS81105	HK2512, HK2516	HK2518RS	•	NK24/16, NK24/20	NKI20/16
AS3047	LS3047	WS81106	HK3012, HK3016	HK3018RS	BK3012, BK3016	NK28/20, NK28/30	NA4904
AS3552	LS3552	WS81107	HK3512, HK3516	HK3518RS	•	NK32/20, NK32/30	NKIS20, NA4905
AS4060	LS4060	WS81108	HK4012, HK4016	HK4018RS	•	NK37/20, NK37/30	NKIS25, NA4906
AS4565	LS4565	WS81109	HK4516, HK4520	HK4518RS	BK4520	NK42/20, NK42/30	NKIS30
AS5070	LS5070	WS81110	HK5020, HK5025	HK5022RS	•	NKS43	NKIS35

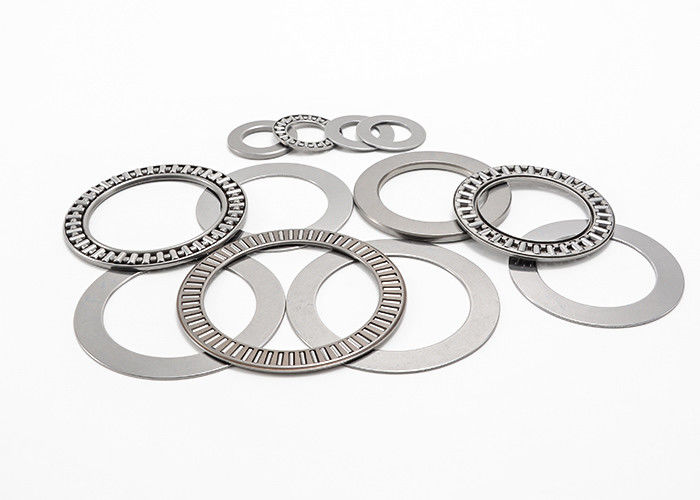

Needle Roller Thrust Bearing With Centring Flange And Axial Bearing Washer AXW20 0

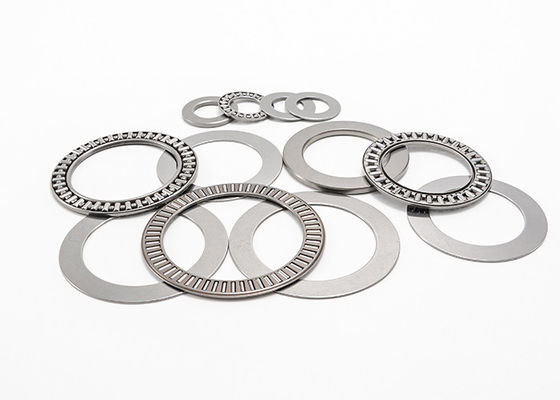

Needle Roller Thrust Bearing With Centring Flange And Axial Bearing Washer AXW20 1

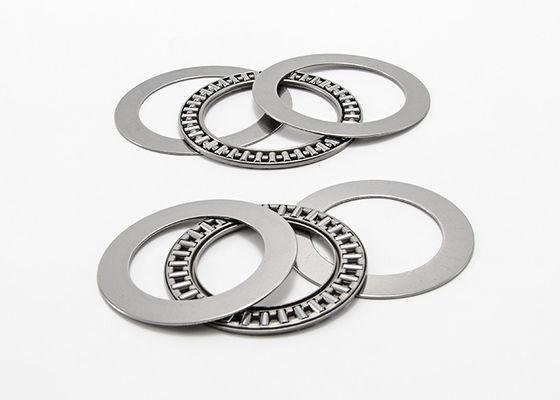

Needle Roller Thrust Bearing With Centring Flange And Axial Bearing Washer AXW20 2
