Product Details:
|
| Name: | Thrust Needle Roller Bearings | Measurement: | Metric |
|---|---|---|---|
| Bearing Material: | Bearing Steel | Rolling Element: | Needle Roller |
| Component Description: | Roller Assembly Only | Single Or Double Direction: | Double Direction |
| Thrust Bearing: | Yes | Self Aligning: | No |
| Precision Class: | ABEC 1 | ISO P0 | Other Features: | Single Row |

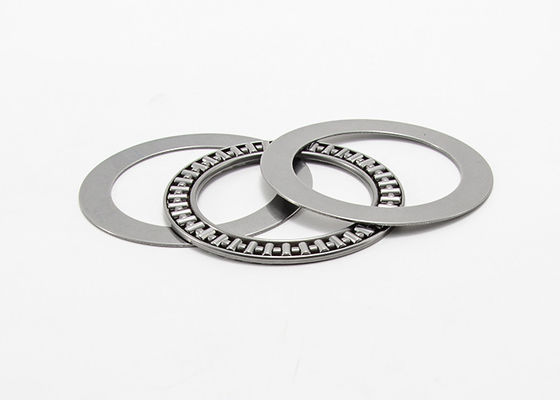

Thrust Needle Roller Bearings Axial Needle Roller and Cage Assemblies NTB 4060

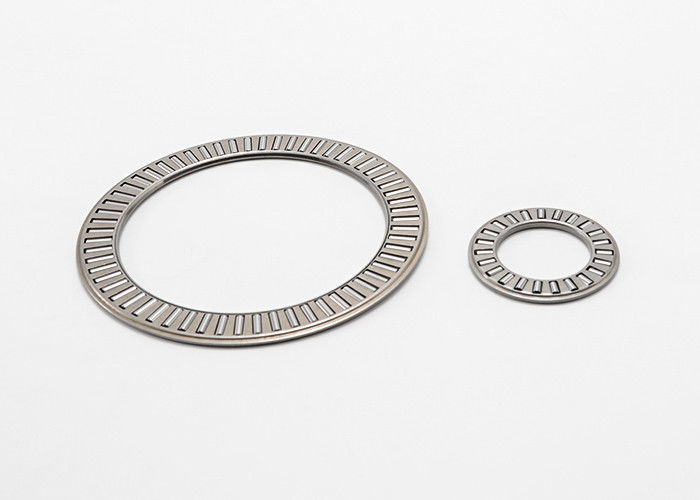

Thrust Bearings consist of a precisely made cage and rollers. They have high rigidity and high load capacities and can be used in small spaces.
Application:
Needle roller bearings are widely used in cars, compressors, construction, electric motors, food industry, home appliances etc. As a rolling element, it turns the world.
Specifications:
| Basic Product Description | Needle Roller Thrust Bearing |
| Measurement(Inch - Metric) | Metric |
| Bearing Material | Bearing steel |
| Cage Material | Steel |
| Rolling Element | Needle Roller |
| Single or Double Direction | Double Direction |
| Precision Class | ABEC 1 | ISO P0 |
| Lubrication | Oil |
Packaging & Shipping:
| Package | Plastic Tube for bearings, and carton package outside |
| Shipping | Express,air shipment, and sea shipment are available |
| Service | OEM Service, and can print your onw logo after authorization |
Thrust Needle Roller Bearings Axial Needle Roller and Cage Assemblies Specifications:
|
Shaft Diameter |
Axial Needle Roller and Cage Assemblies Code | ||||||
| Axial Needle Roller and Cage Assemblies |
Mass g |
Thrust Sheet |
Mass g |
Shaft Ring | Seat Ring |
Mass g |
|
| mm | |||||||
| 10 | NTB1024 | 3.3 | AS 1024 | 2.9 | WS1024 | GS1024 | 8 |
| 12 | NTB1226 | 3.8 | AS 1226 | 3.2 | WS1226 | GS1226 | 8.9 |
| 15 | NTB1528 | 4.1 | AS 1528 | 3.4 | WS1528 | GS1528 | 9.3 |
| 16 | NTB1629 | 4.3 | AS 1629 | 3.6 | WS1629 | GS1629 | 9.8 |
| 17 | NTB1730 | 4.5 | AS 1730 | 3.7 | WS1730 | GS1730 | 10.2 |
| 18 | NTB1831 | 4.7 | AS 1831 | 3.9 | WS1831 | GS1831 | 10.7 |
| 20 | NTB2035 | 6.1 | AS 2035 | 5 | WS2035 | GS2035 | 13.8 |
| 25 | NTB2542 | 8.2 | AS 2542 | 6.9 | WS2542 | GS2542 | 21 |
| 30 | NTB3047 | 9.4 | AS 3047 | 7.9 | WS3047 | GS3047 | 24 |
| 35 | NTB3552 | 10.6 | AS 3552 | 8.9 | WS3552 | GS3552 | 31.5 |
| 40 | NTB4060 | 22 | AS 40603 | 12.1 | WS4060 | GS4060 | 42.5 |
| 45 | NTB4565 | 24.5 | AS 4565 | 13.3 | WS4565 | GS4565 | 53.5 |
| 50 | NTB5070 | 26.5 | AS 5070 | 14.5 | WS5070 | GS5070 | 58.5 |
| 55 | NTB5578 | 33.5 | AS 5578 | 18.5 | WS5578 | GS5578 | 93 |
| 60 | NTB6085 | 38.5 | AS 6085 | 22 | WS6085 | GS6085 | 105 |
| 65 | NTB6590 | 41.5 | AS 6590 | 23.5 | WS6590 | GS6590 | 124 |
| 70 | NTB7095 | 61 | AS 7090 | 25 | WS7095 | GS7095 | 132 |
| 75 | NTB75100 | 65 | AS 75100 | 26.5 | WS75100 | GS75100 | 153 |
| 80 | NTB80105 | 68.5 | AS 80105 | 28 | WS80105 | GS80105 | 162 |
| 85 | NTB85110 | 72 | AS 85110 | 29.5 | WS85110 | GS85110 | 170 |
| 90 | NTB90120 | 92 | AS 90120 | 38 | WS90120 | GS90120 | 250 |
| 100 | NTB100135 | 119 | AS 100135 | 50 | WS110135 | GS100135 | 350 |
| 110 | NTB110145 | 129 | AS 110145 | WS110145 | GS110145 | 380 | |
| 120 | NTB120155 | 139 | AS 120155 | WS120155 | GS120155 | 410 | |
| 130 | NTB130170 | 225 | AS 130170 | WS130170 | GS130170 | 660 | |
CONTINUED FROM ABOVE
| Axial Needle Roller and Cage Assemblies | Dimension | Basic Loading Rating | Limiting Speed | ||||||||
| d | D | Dw | s | h | Rs | C1 | Ce | C | Co | r/min | |
| kgf | kgf | ||||||||||
| NTB1024 | 10 | 24 | 2 | 1 | 2.75 | 0.3 | 14 | 22 | 800 | 2440 | 15000 |
| NTB1226 | 12 | 26 | 2 | 1 | 2.75 | 0.3 | 16 | 24 | 850 | 2750 | 13000 |
| NTB1528 | 15 | 28 | 2 | 1 | 2.75 | 0.3 | 18 | 26 | 900 | 3050 | 12000 |
| NTB1629 | 16 | 29 | 2 | 1 | 2.75 | 0.3 | 19 | 27 | 920 | 3200 | 11000 |
| NTB1730 | 17 | 30 | 2 | 1 | 2.75 | 0.3 | 20 | 28 | 950 | 3360 | 11000 |
| NTB1831 | 18 | 31 | 2 | 1 | 2.75 | 0.3 | 21 | 29 | 970 | 3510 | 10000 |
| NTB2035 | 20 | 35 | 2 | 1 | 2.75 | 0.3 | 23 | 33 | 1200 | 4740 | 9000 |
| NTB2542 | 25 | 42 | 2 | 1 | 3 | 0.6 | 29 | 40 | 1470 | 6600 | 7500 |
| NTB3047 | 30 | 47 | 2 | 1 | 3 | 0.6 | 34 | 45 | 1570 | 7470 | 6500 |
| NTB3552 | 35 | 52 | 2 | 1 | 3.5 | 0.6 | 39 | 50 | 1670 | 8350 | 5500 |
| NTB4060 | 40 | 60 | 3 | 1 | 3.5 | 0.6 | 45 | 57 | 2470 | 11000 | 5000 |
| NTB4565 | 45 | 65 | 3 | 1 | 4 | 0.6 | 50 | 62 | 2640 | 12400 | 4500 |
| NTB5070 | 50 | 70 | 3 | 1 | 4 | 0.6 | 55 | 67 | 2810 | 13700 | 4000 |
| NTB5578 | 55 | 78 | 3 | 1 | 5 | 0.6 | 61 | 75 | 3300 | 17500 | 4000 |
| NTB6085 | 60 | 85 | 3 | 1 | 4.75 | 1 | 66 | 82 | 3900 | 22300 | 3500 |
| NTB6590 | 65 | 90 | 3 | 1 | 5.25 | 1 | 71 | 87 | 4090 | 24100 | 3000 |
| NTB7095 | 70 | 95 | 4 | 1 | 5.25 | 1 | 75 | 91 | 4830 | 24900 | 3000 |
| NTB75100 | 75 | 100 | 4 | 1 | 5.75 | 1 | 80 | 96 | 4930 | 26100 | 3000 |
| NTB80105 | 80 | 105 | 4 | 1 | 5.75 | 1 | 85 | 101 | 5050 | 27200 | 2500 |
| NTB85110 | 85 | 110 | 4 | 1 | 5.75 | 1 | 90 | 106 | 5130 | 28400 | 2500 |
| NTB90120 | 90 | 120 | 4 | 1 | 6.5 | 1 | 96 | 116 | 6570 | 40100 | 2500 |
| NTB100135 | 100 | 135 | 4 | 1 | 7 | 1 | 107 | 131 | 8190 | 55200 | 2000 |
| NTB110145 | 110 | 145 | 4 | 7 | 1 | 117 | 141 | 8480 | 59000 | 2000 | |
| NTB120155 | 120 | 155 | 4 | 7 | 1 | 127 | 151 | 8960 | 64700 | 1800 | |
| NTB130170 | 130 | 170 | 5 | 9 | 1 | 137 | 165 | 12300 | 85500 | 1700 | |
| Oil |
