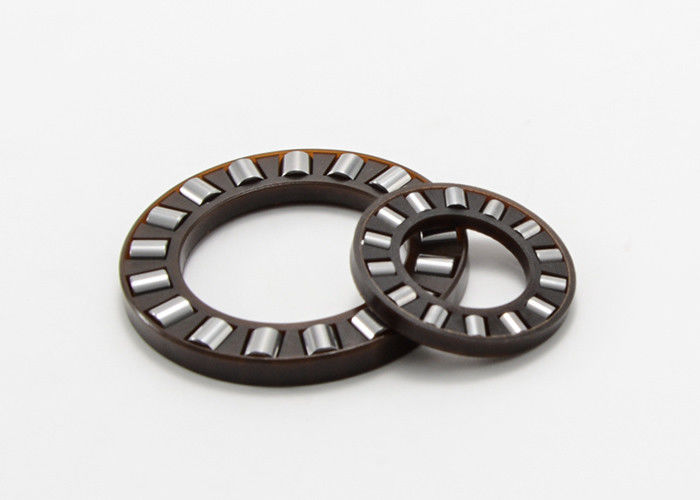

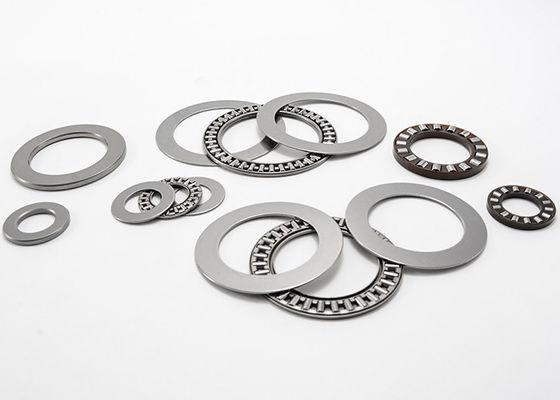

Single Row Thrust Cylindrical Roller Bearing Roller and Cage Assembly With Washers

Single Row Thrust Cylindrical Roller Bearing Roller and Cage Assembly With Washers
Single Row Thrust Cylindrical Roller Bearing Roller and Cage Assembly With Washers Single Row Thrust Cylindrical Roller Bearing Roller and Cage Assembly With Washers

Large Image :  Single Row Thrust Cylindrical Roller Bearing Roller and Cage Assembly With Washers

Product Details:
Place of Origin: China
Brand Name: MOUETTE
Certification: ISO/TS 16949:2009, ISO 9001:2008
Model Number: 81102TN, 81103TN, 81104TN, 81105TN, 81106TN, 81107TN, 81108TN, 81109TN, 81110TN, 81111TN, 81112TN, 81113TN, 81114TN, 81115TN, 81116TN, 81206TN, 81207TN, 81208TN, 81209TN, 81210TN, 81211TN, 81212TN, 81213TN
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD1 per Piece
Packaging Details: Plastic bags, Cartons and European Standard Plywood Case.
Delivery Time: 3-45 working days.(Huge Quantity Stocks Available))
Payment Terms: L/C, T/T, D/A, Western Union, Paypal
Supply Ability: 500,000 Pieces per Month.
Contact Now

Single Row Thrust Cylindrical Roller Bearing Roller and Cage Assembly With Washers

Description
Name: Single Row Thrust Cylindrical Roller Bearing Thrust Bearing Type: Roller And Cage Assembly With Washers
Bearing Material: Chrome Steel 100Cr6 Cage Material: Polyamide PA66
Washer Material: Chrome Steel 100Cr6 Rolling Elements: Cylindrical Roller
Compatible Washers: LS, GS, WS Series Number Of Rows: 1
Tolerance Class: Normal Standard Precision Operating Temperature Range: Max 250 °F

Single Row Thrust Cylindrical Roller Bearing Roller and Cage Assembly With Washer



Single row cylindrical roller thrust bearing, single direction

Features:

  • High axial load carrying capacity
  • High stiffness
  • Long service life
  • Require little axial space
  • Separable design
  • Thrust Bearing Type
  • Round Bore Type



Suffix description:

TN - Injection Moulded Cage Of Polyamide PA66

M - Machined brass



Single Row Thrust Cylindrical Roller Bearing Roller and Cage Assembly With Washers Details:



Shaft

Diameter

 Thrust cylindrical roller bearing Thrust cylindrical Roller and cage thrust assembly Thrust bearing washer
　 code Mass code Mass Housing washer Shaft washer Bearing washer Mass Kg
mm Kg Kg
15 81102TN 0.024 K81102TN 0.006 GS81102 WS81102 LS1528 0.008
17 81103TN 0.027 K81103TN 0.009 GS81103 WS81103 LS1730 0.009
20 81104TN 0.037 K81104TN 0.013 GS81104 WS81104 LS2035 0.012
25 81105TN 0.053 K81105TN 0.015 GS81105 WS81105 LS2542 0.019
30 81106TN 0.057 K81106TN 0.017 GS81106 WS81106 LS3047 0.02
81206TN 0.123 K81206TN 0.033 GS81206 WS81206 　 0.045
89306TN 0.24 K89306TN 0.04 GS89306 WS89306 　 0.095
35 81107TN 0.073 K81107TN 0.019 GS81107 WS81107 LS3552 0.027
81207TN 0.195 K81207TN 0.043 GS81207 WS81207 　 0.076
89307TN 0.34 K89307TN 0.053 GS89307 WS89307 　 0.134
40 81108TN 0.105 K81108TN 0.031 GS81108 WS81108 LS4060 0.037
81208TN 0.249 K81208TN 0.081 GS81208 WS81208 　 0.084
89308TN 0.484 K89308TN 0.098 GS89308 WS89308 　 0.193
45 81109TN 0.13 K81109TN 0.035 GS81109 WS81109 LS4565 0.047
81209TN 0.287 K81209TN 0.085 GS81209 WS81209 　 0.101
89309TN 0.615 K89309TN 0.121 GS89309 WS89309 　 0.247
50 81110TN 0.14 K81110TN 0.038 GS81110 WS81110 LS5070 0.051
81210TN 0.356 K81210TN 0.098 GS81210 WS81210 　 0.129
89310TN 0.887 K89310TN 0.175 GS89310 WS89310 　 0.356
55 81111TN 0.218 K81111TN 0.045 GS81111 WS81111 LS5578 0.082
81211TN 0.568 K81211TN 0.166 GS81211 WS81211 　 0.201
89311TN 1.18 K89311TN 0.195 GS89311 WS89311 　 0.485
60 81112TN 0.266 K81112TN 0.082 GS81112 WS81112 LS6085 0.092
81212TN 0.642 K81212TN 0.176 GS81212 WS81212 　 0.233
89312TN 1.26 K89312TN 0.21 GS89312 WS89312 　 0.517
89412TN 2.818 K89412TN 0.538 GS89412 WS89412 　 1.115
65 81113TN 0.31 K81113TN 0.09 GS81113 WS81113 LS6590 0.11
81213TN 0.721 K81213TN 0.185 GS81213 WS81213 　 0.268
89313TN 1.33 K89313TN 0.21 GS89313 WS89313 　 0.535
89413TN 3.52 K89413TN 0.72 GS89413 WS89413 　 1.4
70 81114TN 0.332 K81114TN 0.092 GS81114 WS81114 LS7095 0.12
81214TN 0.768 K81214TN 0.212 GS81214 WS81214 　 0.278
89314TN 1.82 K89314TN 0.29 GS89314 WS89314 　 0.8
89414TN 4.18 K89414TN 0.76 GS89414 WS89414 　 1.73
75 81115TN 0.393 K81115TN 0.096 GS81115 WS81115 LS75100 0.136
81215TN 0.8 K81215TN 0.195 GS81215 WS81215 　 0.293
89315TN 2.23 K89315TN 0.375 GS89315 WS89315 　 0.97
89415-M 5.96 K89415 1.78 GS89415 WS89415 　 2.09
80 81116TN 0.4 K81116TN 0.095 GS81116 WS81116 LS80105 0.144



CONTINUED FROM ABOVE



Thrust cylindrical roller bearing Dimension Track size Basic Load Rating Limiting Speed
Dcl D1 Dc d1 T Dw B a Eb Ea Cr Cor r/min
d D r
　 　 mm KN
81102TN 15 16 28 28 9 3.5 2.75 0.3 16 27 14.4 28.5 13000
81103TN 17 18 30 30 9 3.5 2.75 0.3 18 29 15.9 33.5 12000
81104TN 20 21 35 35 10 4.5 2.75 0.3 21 34 24.9 53 10000
81105TN 25 26 42 42 11 5 3 0.6 26 41 33.5 76 8500
81106TN 30 32 47 47 11 5 3 0.6 31 46 35.5 86 7500
81206TN 30 32 52 52 16 7.5 4.25 0.6 31 50 64 141 7000
89306TN 30 32 60 60 18 5.5 6.25 1 33 59 69 197 6500
81107TN 35 37 52 52 12 5 3.5 0.6 36 51 39 101 6500
81207TN 35 37 62 62 18 7.5 5.25 1 39 58 80 199 6000
89307TN 35 37 68 68 20 6 7 1 38 67 80 237 5500
81108TN 40 42 60 60 13 6 3.5 0.6 42 58 56 148 6000
81208TN 40 42 68 68 19 9 5 1 43 66 107 265 5500
89308TN 40 42 78 78 22 7 7.5 1 44 77 122 385 4900
81109TN 45 47 65 65 14 6 4 0.6 47 63 59 163 5000
81209TN 45 47 73 73 20 9 5.5 1 48 70 105 265 4900
89309TN 45 47 85 85 24 7.5 8.25 1 49 83 139 445 4400
81110TN 50 52 70 70 14 6 4 0.6 52 68 61 177 4800
81210TN 50 52 78 78 22 9 6.5 1 53 75 117 315 4500
89310TN 50 52 95 95 27 8 9.5 1.1 56 92 167 560 4000
81111TN 55 57 78 78 16 6 5 0.6 57 77 90 300 4300
81211TN 55 57 90 90 25 11 7 1 59 85 154 405 4000
89311TN 55 57 105 105 30 9 10.5 1.1 61 103 184 600 3600
81112TN 60 62 85 85 17 7.5 4.75 1 62 82 103 315 4000
81212TN 60 62 95 95 26 11 7.5 1 64 91 172 480 3700
89312TN 60 62 110 110 30 9 10.5 1.1 66 108 196 670 3400
89412TN 60 62 130 130 42 14 14 1.5 65 126 390 1220 3000
81113TN 65 67 90 90 18 7.5 5.25 1 67 87 107 340 3700
81213TN 65 67 100 100 27 11 8 1 69 96 177 500 3500
89313TN 65 67 115 115 30 9 10.5 1.1 71 113 194 670 3200
89413TN 65 68 140 140 45 15 15 2 70 135 445 1410 2800
81114TN 70 72 95 95 18 7.5 5.25 1 72 92 111 365 3500
81214TN 70 72 105 105 27 11 8 1 74 102 187 550 3300
89314TN 70 72 125 125 34 10 12 1.1 76 123 239 830 3000
89414TN 70 73 150 150 48 16 16 2 76 147 475 1500 2600
81115TN 75 77 100 100 19 7.5 5.75 1 78 97 107 350 3300
81215TN 75 77 110 110 27 11 8 1 79 106 172 500 3100
89315TN 75 77 135 135 36 11 12.5 1.5 81 132 285 1010 2700
89415-M 75 78 160 160 51 17 17 2 82 153 500 1580 2500
81116TN 80 82 105 105 19 7.5 5.75 1 83 102 106 350 3100



Single Row Thrust Cylindrical Roller Bearing Roller and Cage Assembly With Washers 0

Single Row Thrust Cylindrical Roller Bearing Roller and Cage Assembly With Washers 1



Single Row Thrust Cylindrical Roller Bearing Roller and Cage Assembly With Washers 2



Single Row Thrust Cylindrical Roller Bearing Roller and Cage Assembly With Washers 3
