Single Row Axial Thrust Cylindrical Roller Bearing With Bearing Washers 81234M

Large Image : Single Row Axial Thrust Cylindrical Roller Bearing With Bearing Washers 81234M

Product Details:

Place of Origin:	China
Brand Name:	MOUETTE
Certification:	ISO/TS 16949:2009, ISO 9001:2008
Model Number:	81234-M, 81136-M, 81138-M, 81140-M, 81144-M, 81148-M, 81152-M, 81156-M, 81160-M, 81164-M, 89434-M, 89436-M, 89438-M, 89440-M, 89444-M, 89448-M, 89452-M, 89456-M, 89460-M, 89464-M, 81236-M, 81238-M, 81240-M, 81244-M, 81248-M, 81252-M, 81256-M, 81260-M

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	USD20 per Piece (Inquired)
Packaging Details:	Plastic bags, Cartons and European Standard Plywood Case.
Delivery Time:	3-45 working days.(Huge Quantity Stocks Available))
Payment Terms:	L/C, T/T, D/A, Western Union, Paypal
Supply Ability:	500,000 Pieces per Month.

Contact Now

Single Row Axial Thrust Cylindrical Roller Bearing With Bearing Washers 81234M

Description

Name:	Single Row Axial Thrust Cylindrical Roller Bearing	Bearing Part:	Complete Bearing
Axial Load Capability:	Single-direction	Cage:	Machined Brass
Bearing Material:	Chrome Steel 100Cr6, GCr15, AISI 52100	Coating:	Without
Number Of Rows:	1	Tolerance Class:	ABEC 1 \| ISO P0

Single Row Axial Thrust Cylindrical Roller Bearing With Bearing Washers 81234M

General Descriptions

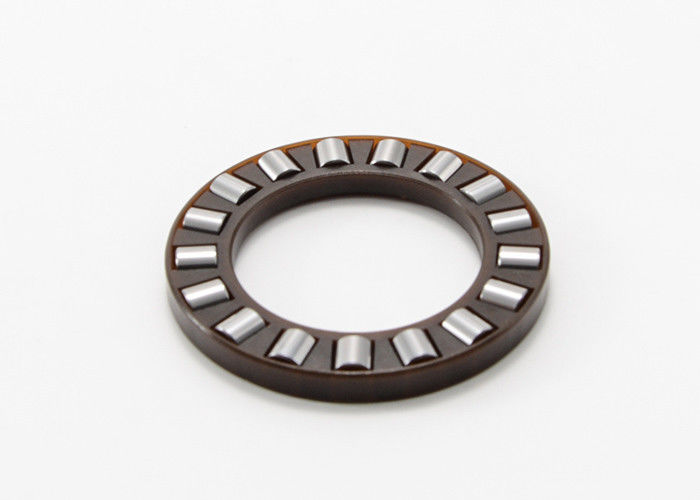

Single row cylindrical roller thrust bearing, single direction

Single row cylindrical roller thrust bearings are designed to accommodate heavy axial loads and peak loads in one direction, but not radial loads. They provide a high degree of stiffness and require little axial space. They are mainly used in applications where thrust ball bearings do not have sufficient load carrying capacity. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High axial load carrying capacity
High stiffness
Long service life
Require little axial space
Separable design

Single Row Axial Thrust Cylindrical Roller Bearing With Bearing Washers Specifications:

Shaft Diameter	Thrust cylindrical roller bearing		Thrust cylindrical roller bearing and retainer assembly		Bearing washers for cylindrical and needle roller thrust bearings
	Thrust cylindrical roller bearing		Thrust cylindrical roller bearing and retainer assembly
	code	Mass	code	Mass	Seat Ring	Bearing Ring	Bearing washer	Mass
mm	code	Kg	code	Kg	Seat Ring	Bearing Ring	Bearing washer	Kg
170	81234-M	7.69	K812 34	1.89	GS812 34	WS812 34		2.9
170	89434-M	51.87	K894 34	14.87	GS894 34	WS894 34		18.5
180	81136-M	3.04	K811 36	0.8	GS811 36	WS811 36		1.1
	81236-M	8.24	K812 36	1.98	GS812 36	WS812 36		3.13
	89436-M	60.19	K894 36	17.59	GS894 36	WS894 36		21.3
190	81138-M	3.84	K811 38	0.94	GS811 38	WS811 38		1.45
	81238-M	10.4	K812 38/	2.73	GS812 38	WS812 38		3.835
	89438-M	65.7	K894 38	14.5	GS894 38	WS894 38		25.6
200	81140-M	4	K811 40	0.98	GS811 40	WS811 40		1.51
	81240-M	11.91	K812 40	3.09	GS812 40	WS812 40		4.41
	89440-M	74.8	K894 40	16.2	GS894 40	WS894 40		29.3
220	81144-M	4.5	K811 44	1.32	GS811 44	WS811 44		1.59
	81244-M	12.85	K812 44	3.35	GS812 44	WS812 44		4.75
	89444-M	84.4	K894 44	20	GS894 44	WS894 44		32.2
240	81148-M	7.25	K811 48	2.11	GS811 48	WS811 48		2.57
	81248-M	21.95	K812 48	5.65	GS812 48	WS812 48		8.15
	89448-M	87.8	K894 48	19.2	GS894 48	WS894 48		34.3
260	81152-M	7.83	K811 52	2.3	GS811 52	WS811 52		2.765
	81252-M	23.9	K812 52	6.1	GS812 52	WS812 52		8.9
	89452-M	114	K894 52	25.5	GS894 52	WS894 52		44.25
280	81156-M	10.3	K811 56	3	GS811 56	WS811 56		3.65
	81256-M	25.9	K812 56	6.4	GS812 56	WS812 56		9.75
	89456-M	142	K894 56	30.8	GS894 56	WS894 56		55.6
300	81160-M	16.67	K811 60	4.83	GS811 60	WS811 60		5.92
	81260-M	40.55	K812 60	10.15	GS812 60	WS812 60		15.2
	89460-M	153	K894 60	32.7	GS894 60	WS894 60		60.15
320	81164-M	17.82	K811 64	5.12	GS811 64	WS811 64		6.35
320	89464-M	193	K894 64	70	GS894 64	WS894 64		61.5

CONTINUED FROM ABOVE

Thrust cylindrical roller bearing	Dimension								Track size		Basic Load Rating		Limiting Speed
	Dcl	D1	Dc	d1	T	Dw	B	a	Eb	Ea	Cr	Cor
	d		D					r			Cr	Cor
								mm			KN		r/min
81234-M	170	173	240	237	55	22	16.5	1.5	180	235	680	2340	1400
89434-M	170	174	340	340	103	34	34.5	5	191	233	1990	7400	1100
81136-M	180	183	225	222	34	14	10	1.1	185	219	340	1300	1400
81236-M	180	183	250	247	56	22	17	1.5	190	245	690	2440	1300
89436-M	180	184	360	360	109	3	36.5	5	200	351	2210	8200	1100
81138-M	190	193	240	237	37	15	11	1.1	197	233	385	1500	1300
81238-M	190	194	270	267	62	26	18	2	200	265	880	3000	1300
89438-M	190	195	380	380	115	38	38.5	5	214	373	2450	9200	1000
81140-M	200	203	250	247	37	15	11	1.1	206	243	390	1550	1300
81240-M	200	204	280	277	62	26	18	2	210	275	900	3150	1200
89440-M	200	205	400	400	122	40	41	5	226	393	2700	10200	950
81144-M	220	223	270	267	37	15	11	1.1	226	263	420	1730	1200
81244-M	220	224	300	297	63	26	18.5	2	230	296	940	3450	1100
89444-M	220	225	420	420	122	40	41	6	244	411	2900	11500	900
81148-M	240	243	300	297	45	18	13.5	1.5	248	296	600	2500	1100
81248-M	240	244	340	335	78	32	23	2.1	261	335	1370	5000	1000
89448-M	240	245	440	440	122	40	41	6	266	433	3000	12200	850
81152-M	260	263	320	317	45	18	13.5	1.5	268	316	620	2650	1000
81252-M	260	264	360	355	79	32	23.5	2.1	280	353	1440	5400	950
89452-M	260	265	480	480	132	44	44	6	288	472	3600	14700	800
81156-M	280	283	350	347	53	22	15.5	4.5	288	346	860	3650	900
81256-M	280	284	380	375	80	32	24	2.1	300	373	1460	5600	850
89456-M	280	285	520	520	145	48	48.5	6	311	512	4200	17600	700
81160-M	300	304	380	376	62	25	18.5	2	315	373	1060	4500	850
81260-M	300	304	420	415	95	38	28.5	3	328	413	1930	7300	800
89460-M	300	305	540	540	145	48	48.5	6	331	533	4350	18500	700
81164-M	320	324	400	396	63	25	19	2	334	394	1100	4750	800
89464-M	320	325	580	575	155	68	43.5	6	340	573	5500	19900	550
