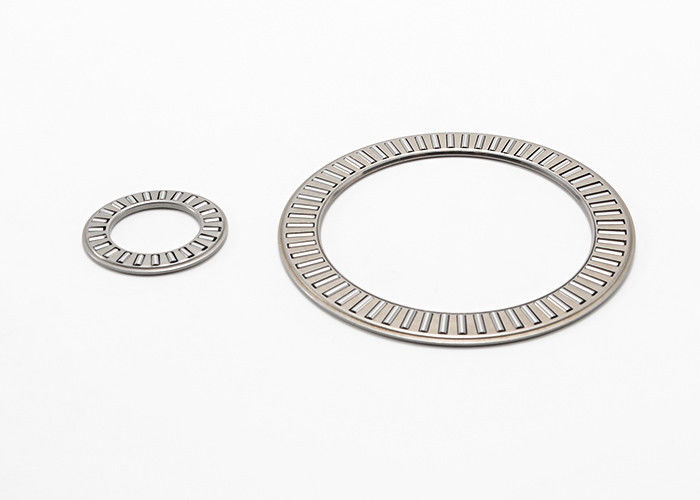

Inch Thrust Needle Roller Bearing Axial Needle Roller and Cage Assembly TC1220

Inch Thrust Needle Roller Bearing Axial Needle Roller and Cage Assembly TC1220
Inch Thrust Needle Roller Bearing Axial Needle Roller and Cage Assembly TC1220 Inch Thrust Needle Roller Bearing Axial Needle Roller and Cage Assembly TC1220

Large Image :  Inch Thrust Needle Roller Bearing Axial Needle Roller and Cage Assembly TC1220

Product Details:
Place of Origin: China
Brand Name: MOUETTE
Certification: ISO/TS 16949:2009, ISO 9001:2008
Model Number: TC411, TC512, TC613, TC815, TC1018, TC1220, TC1423, TC1427, TC1525, TC1828, TC1931, TC2013, TC2233, TC2435, TC2840, TC3244, TC3648, TC4052, TC4860, TC5266, TC6681
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: USD0.5 per Piece
Packaging Details: Plastic film, Cartons and European Standard Plywood Case.
Delivery Time: 3-45 working days.(Huge Quantity Stocks Available))
Payment Terms: L/C, T/T, D/A, Western Union, Paypal
Supply Ability: 500,000 Pieces per Month.
Contact Now

Inch Thrust Needle Roller Bearing Axial Needle Roller and Cage Assembly TC1220

Description
Name: Thrust Needle Roller Bearing Thrust Bearing Type: Roller & Cage Assembly
Inch - Metric: Inch Cage Material: Steel
Needle Material: Chrome Steel 100Cr6 Seal Type: Open
Single Or Double Direction: Single Direction Precision Class: ABEC 1 | ISO P0
Other Features: Single Row | Axial Needle Roller Lubrication: Required

Inch Thrust Needle Roller Bearing Axial Needle Roller and Cage Assembly TC1220



Axial Needle Roller and Cage Assembly, Single Direction, Series: TC Series
Description
  • Axial needle roller bearings are units comprising axial needle roller and cage assemblies and thrust bearing washers with a centering spigot
  • Can be combined with drawn cup needle roller bearings with open ends, drawn cup needle roller bearings with closed ends and needle roller bearings
  • The axial running surface for the needle roller and cage assembly must be hardened and ground



MOUETTE offers more interchange tables, such as skf needle bearings, ina needle bearings, ntn needle bearings, iko needle bearings, torrington needle bearings, koyo needle bearings, timken needle bearings, rbc needle bearings, and mcgill needle bearings.





Inch Thrust Needle Roller Bearing Axial Needle Roller and Cage Assembly TC Series Details:

Shaft Diameter Bearing Designation Boundary Dimensions Basic Load Rating Limiting Speed Washer
dw/d Dg/D Dw Dynamic Static Oil TRA, TRB
mm inch mm inch mm inch mm N rpm TRC,TRD
1/4 TC411 0.25 6.35 0.687 17.45 0.0781 1.984 1370 3000 16000 411
5/16 TC512 0.312 7.49 0.75 19.05 0.0781 1.984 1560 3650 15000 512
3/8 TC613 0.375 9.52 0.812 20.62 0.0781 1.984 1620 4000 15000 613
1/2 TC815 0.5 12.7 0.937 23.8 0.0781 1.984 1920 5300 13000 815
5/8 TC1018 0.625 15.88 1.125 28.58 0.0781 1.984 2170 6600 11000 1018
3/4 TC1220 0.75 19.05 1.25 31.75 0.0781 1.984 2410 8000 9500 1220
7/8 TC1423 0.875 22.22 1.437 36.5 0.0781 1.984 2900 10500 8500 1423
TC1427 0.875 22.22 1.687 42.85 0.0781 1.984 4400 18600 7500 1427
1 TC1525 1 25.4 1.562 39.67 0.0781 1.984 3150 12100 7500 1525
1 1/8 TC1828 1.125 28.58 1.75 44.45 0.0781 1.984 3850 16300 6500 1828
1 3/16 TC1931 1.188 30.16 1.937 49.2 0.0781 1.984 4500 20500 6000 1931
1 1/4 TC2013 1.25 31.75 1.937 49.2 0.0781 1.984 4500 20500 6000 2013
1 3/8 TC2233 1.375 34.92 2.062 52.37 0.0781 1.984 4600 21600 5500 2233
1 1/2 TC2435 1.5 38.1 2.187 55.55 0.0781 1.984 4850 23700 5000 2435
1 3/4 TC2840 1.75 44.45 2.5 63.5 0.0781 1.984 5600 30000 4500 2840
2 TC3244 2 50.8 2.75 69.85 0.0781 1.984 5800 32500 4000 3244
2 1/4 TC3648 2.25 57.15 3 76.2 0.0781 1.984 6000 35000 3600 3648
2 1/2 TC4052 2.5 63.5 3.25 82.55 0.0781 1.984 6200 37500 3300 4052
3 TC4860 3 76.2 3.75 95.25 0.0781 1.984 6600 42500 2800 4860
3 1/4 TC5266 3.25 82.55 4.125 104.78 0.125 3.175 10900 61000 2600 5266
4 1/8 TC6681 4.125 104.78 6.062 128.57 0.125 3.175 14200 92000 2100 6681

Inch Thrust Needle Roller Bearing Axial Needle Roller and Cage Assembly TC1220 0

Inch Thrust Needle Roller Bearing Axial Needle Roller and Cage Assembly TC1220 1



Inch Thrust Needle Roller Bearing Axial Needle Roller and Cage Assembly TC1220 2
