Product Details:
|
| Name: | Support Roller Metric Yoke Type Track Roller Without Inner Ring | Material: | High-Alloy Bearing Quality Steel |
|---|---|---|---|
| Coating: | Without | Size Range: | Metric |
| Outer Ring Profile: | Crowned (spherical Outer Diameter R500) | Cage: | Caged |
| Rolling Elements: | Needle Rollers | Sealing: | Contact Lip Seals On Both Sides |
| High Light: | Interchangeable Yoke Type Cam Followers,RNA22 Yoke Type Cam Followers,Cylindrical mcgill yoke roller |
||

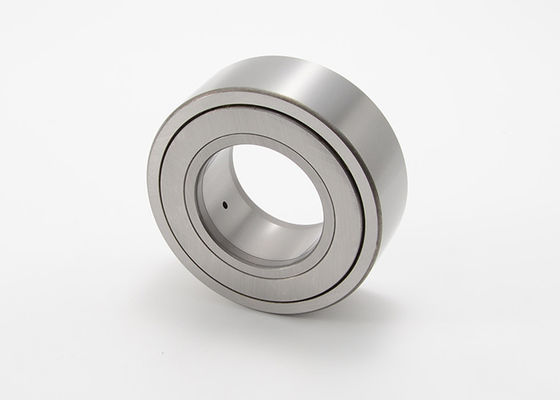

Support Roller Metric Yoke Type Track Roller without Inner Ring RNA2200 2RS RNA2205 2RS

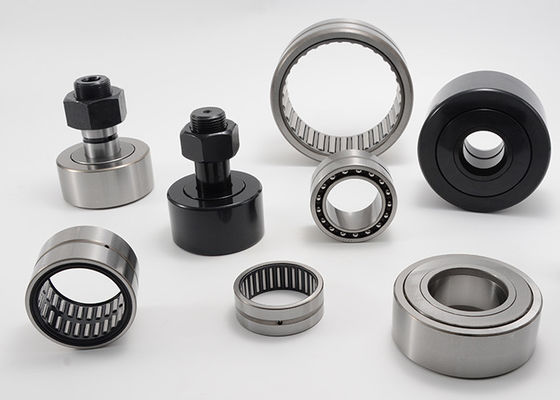

MOUETTE bearing produces the whole range of cam followers, both standard and non-standard designs. Customized cam followers are available to fit your application as well as a risk-free application review where we provide our engineering recommendations to improve your application or reduce your operating costs.
These roller follower bearings are available in bearing steel, and stainless steel. And we also offer McMaster Carr Camfollower with Urethane (plastic cam follower).
Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a single row needle roller bearing without an inner ring, intended for applications where hardened and ground raceways can be provided on the pin or shaft. They have a thick-walled outer ring with a crowned running surface and are supplied sealed and ready-to-mount.
Support Roller Metric Yoke Type Track Roller without Inner Ring Specifications:
|
Shaft Diameter |
Yoke Type Cam Followers Code | Boundary Dimensions | Basic Load Rating | Limiting Speed | Mass | |||||||
| Without IR | d | FW | D | B | C | Dynamic | Static | Oil | ||||
| mm | mm | N | rpm | g | ||||||||
| 19 | RNA22/6 2RS | 6 | 10 | 19 | 12 | 11.8 | 5000 | 4350 | 18000 | 18 | ||
| RNA22/6 2RSX | 6 | 10 | 19 | 12 | 11.8 | 5000 | 4350 | 18000 | 18 | |||
| 24 | RNA22/8 2RS | 8 | 12 | 24 | 12 | 11.8 | 5500 | 5200 | 14000 | 29 | ||
| RNA22/8 2RSX | 8 | 12 | 24 | 12 | 11.8 | 5500 | 5200 | 14000 | 29 | |||
| 30 | RNA2200 2RS | 10 | 14 | 30 | 14 | 13.8 | 7600 | 8100 | 11000 | 52 | ||
| RNA2200 2RSX | 10 | 14 | 30 | 14 | 13.8 | 7600 | 8100 | 11000 | 52 | |||
| 32 | RNA2201 2RS | 12 | 16 | 32 | 14 | 13.8 | 8500 | 9700 | 9500 | 57 | ||
| RNA2201 2RSX | 12 | 16 | 32 | 14 | 13.8 | 8500 | 9700 | 9500 | 57 | |||
| 35 | RNA2202 2RS | 15 | 20 | 35 | 14 | 13.8 | 9600 | 12000 | 7000 | 60 | ||
| RNA2202 2RSX | 15 | 20 | 35 | 14 | 13.8 | 9600 | 12000 | 7000 | 60 | |||
| 40 | RNA2203 2RS | 17 | 22 | 40 | 16 | 15.8 | 12000 | 16500 | 6000 | 94 | ||
| RNA2203 2RSX | 17 | 22 | 40 | 16 | 15.8 | 12000 | 16500 | 6000 | 94 | |||
| 47 | RNA2204 2RS | 20 | 25 | 47 | 18 | 17.8 | 18500 | 21900 | 4600 | 152 | ||
| RNA2204 2RSX | 20 | 25 | 47 | 18 | 17.8 | 18500 | 21900 | 4600 | 152 | |||
| 52 | RNA2205 2RS | 25 | 30 | 52 | 18 | 17.8 | 20100 | 26000 | 3500 | 179 | ||
| RNA2205 2RSX | 25 | 30 | 52 | 18 | 17.8 | 20100 | 26000 | 3500 | 179 | |||
| 62 | RNA2206 2RS | 30 | 35 | 62 | 20 | 19.8 | 23000 | 28000 | 2800 | 284 | ||
| RNA2206 2RSX | 30 | 35 | 62 | 20 | 19.8 | 23000 | 28000 | 2800 | 284 | |||
| 72 | RNA2207 2RS | 35 | 42 | 72 | 23 | 22.7 | 29800 | 46300 | 2200 | 432 | ||
| RNA2207 2RSX | 35 | 42 | 72 | 23 | 22.7 | 29800 | 46300 | 2200 | 432 | |||
| 80 | RNA2208 2RS | 40 | 48 | 80 | 23 | 22.7 | 38200 | 57700 | 1700 | 530 | ||
| RNA2208 2RSX | 40 | 48 | 80 | 23 | 22.7 | 38200 | 57700 | 1700 | 530 | |||
| 85 | RNA2209 2RS | 45 | 52 | 85 | 23 | 22.7 | 40300 | 63800 | 1600 | 545 | ||
| RNA2209 2RSX | 45 | 52 | 85 | 23 | 22.7 | 40300 | 63800 | 1600 | 545 | |||
| 90 | RNA22010 2RS | 50 | 58 | 90 | 23 | 22.7 | 66000 | 86000 | 1300 | 563 | ||
| RNA22010 2RSX | 50 | 58 | 90 | 23 | 22.7 | 66000 | 86000 | 1300 | 563 | |||
