Product Details:
|
| Name: | Crowned Support Rollers Yoke Type Track Rollers With Flange Rings | Material: | High-Alloy Bearing Quality Steel |
|---|---|---|---|
| Roller Shape: | Outer Ring Profile Crowned R500 | Coating: | Without( Neutral Bearing Steel Color) |
| Size Range: | Metric Series | Axial Guidance Of Outer Ring: | Yes |
| Rolling Elements: | Needle Rollers | Number Of Flanges, Outer Ring: | 2 |
| Seal Type: | Seal On Both Sides | Relubrication Feature: | Via Inner Ring |
| High Light: | Double Row yoke style cam follower,hex hole yoke style cam follower,NATR cam yoke roller |
||

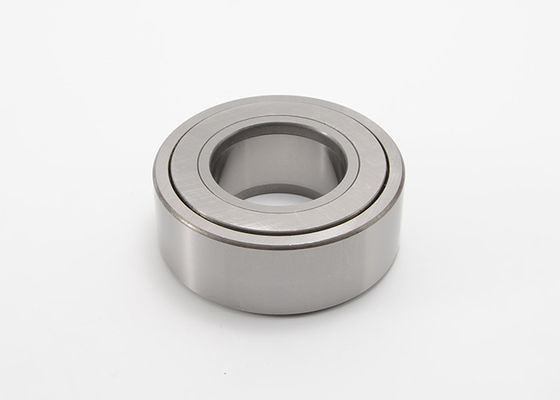

Crowned Support Rollers Yoke Type Track Rollers with flange rings NATR 6 NATR 6 PP

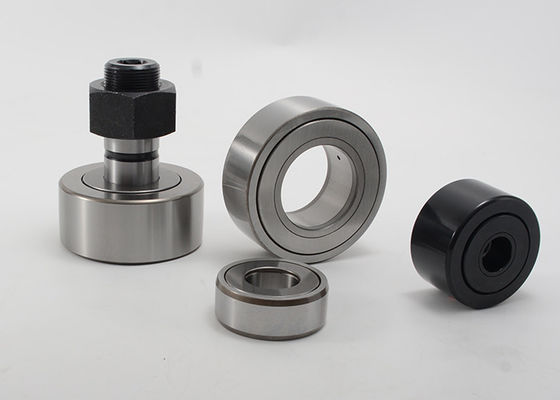

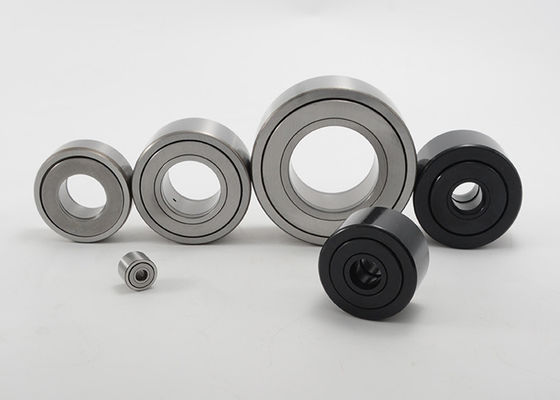

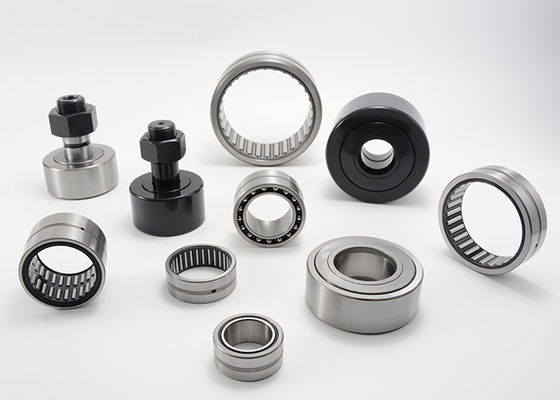

MOUETTE designs and manufactures a complete line of cam followers and Support rollers (yoke-type track rollers) for industrial applications, including machine tools, industrial robots, electronic parts production, office automation equipment and harsh environments that require increased corrosion resistance.
Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied ready-to-mount. A narrow gap between the outer ring and the pressed-on flange rings forms a gap-type seal. The inner ring contains a lubrication hole to facilitate relubrication.
Crowned Support Rollers Yoke Type Track Rollers with flange rings Specifications:
|
Shaft Diameter |
Yoke Type Cam Followers Code | Boundary Dimensions | Basic Load Rating | Limiting Speed | |||||||
| Without Seal | Sealed | d | D | B | C | d1 | rs | Dynamic | Static | ||
| mm | mm | min | N | rpm | |||||||
| 16 | NATR 5 | NATR 5 PP | 5 | 16 | 12 | 11 | 12 | 0.15 | 3150 | 3300 | 22000 |
| 19 | NATR 6 | NATR 6 PP | 6 | 19 | 12 | 11 | 14 | 0.15 | 3500 | 3900 | 20000 |
| 24 | NATR 8 | NATR 8 PP | 8 | 24 | 15 | 14 | 19 | 0.3 | 5500 | 6400 | 15000 |
| 30 | NATR 10 | NATR 10 PP | 10 | 30 | 15 | 14 | 23 | 0.6 | 6800 | 8400 | 11000 |
| 32 | NATR 12 | NATR 12 PP | 12 | 32 | 15 | 14 | 25 | 0.6 | 6900 | 8800 | 9000 |
| 35 | NATR 15 | NATR 15 PP | 15 | 35 | 19 | 18 | 27 | 0.6 | 9700 | 14100 | 7000 |
| 40 | NATR 17 | NATR 17 PP | 17 | 40 | 21 | 20 | 32 | 1 | 10900 | 15500 | 6000 |
| 47 | NATR 20 | NATR 20 PP | 20 | 47 | 25 | 24 | 37 | 1 | 15500 | 25500 | 4900 |
| 52 | NATR 25 | NATR 25 PP | 25 | 52 | 25 | 24 | 42 | 1 | 15400 | 26500 | 3600 |
| 62 | NATR 30 | NATR 30 PP | 30 | 62 | 29 | 28 | 51 | 1 | 23600 | 38500 | 2600 |
| 72 | NATR 35 | NATR 35 PP | 35 | 72 | 29 | 28 | 58 | 1.1 | 25500 | 44500 | 2000 |
| 80 | NATR 40 | NATR 40 PP | 40 | 80 | 32 | 30 | 66 | 1.1 | 33000 | 59000 | 1700 |
| 85 | NATR 45 | NATR 45 PP | 45 | 85 | 32 | 30 | 72 | 1.1 | 32500 | 59000 | 1500 |
| 90 | NATR 50 | NATR 50 PP | 50 | 90 | 32 | 30 | 76 | 1.1 | 32000 | 59000 | 1300 |
