Product Details:
|
| Name: | Yoke Type Track Rollers Bearings | Material: | High-Alloy Bearing Steel |
|---|---|---|---|
| Axial Guidance Of Outer Ring: | Yes | Coating: | No, Only With Neutral Bearing Steel Color |
| Size Range: | Metric Series | Number Of Flanges, Outer Ring: | 2 |
| Number Of Rows: | 2 | Outer Ring Profile: | Cylindrical |
| Rolling Elements: | Cylindrical Rollers | Lubricant: | Grease |
| Seal Type: | Seal On Both Sides | Other Features: | Full Complement | Heavy Duty | With Inner Ring | Labyrinth Seals |
| High Light: | Double Row stud type track rollers,Hex Hole stud type track rollers,NUTR yoke cam |
||

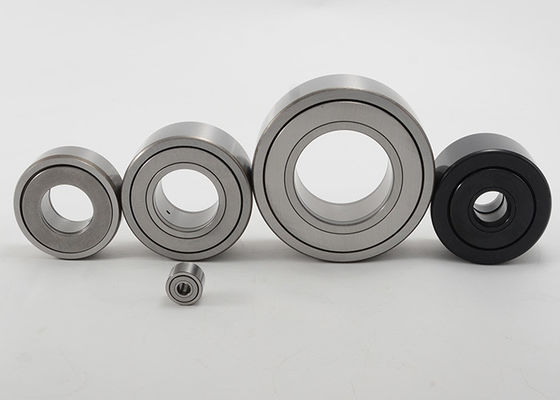

Yoke Type Track Rollers Bearings Full Complement Cylindrical Roller Set NUTR1747 NUTR 20
MOUETTE offers a complete line of Yoke Type Track Rollers Bearings for industrial applications, like being used in cam drives, conveyor systems, etc. These bearings are available in steel, stainless steel, and with engineered plastic internal bushings.

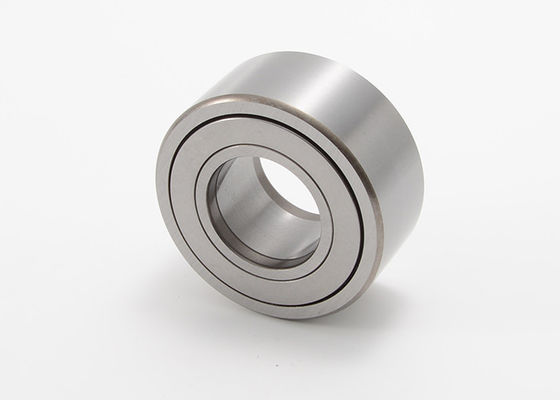

Yoke type track rollers NUTR series, full complement cylindrical roller set, with axial guidance, seals on both sides
Yoke Type Track Rollers Bearings Full Complement Cylindrical Roller Set Specifications:
| Shaft Diameter | Bearing Code | Boundary Dimensions | Basic Load Rating |
Limiting Speed |
|||||||
| d | D | B | C | d1 | rs | ris | Dynamic | Static | |||
| mm | mm | min | min | N | rpm | ||||||
| 35 | NUTR 15 | 15 | 35 | 19 | 18 | 20 | 0.6 | 0.3 | 16000 | 18300 | 6500 |
| 40 | NUTR 17 | 17 | 40 | 21 | 20 | 22 | 1 | 0.3 | 18500 | 22800 | 5500 |
| 42 | NUTR 15 42 | 15 | 42 | 19 | 18 | 20 | 0.6 | 0.3 | 19400 | 23800 | 6500 |
| 47 | NUTR 17 47 | 17 | 47 | 21 | 20 | 22 | 1 | 0.3 | 21300 | 28000 | 5500 |
| NUTR 20 | 20 | 47 | 25 | 24 | 27 | 1 | 0.3 | 28000 | 35000 | 4200 | |
| 52 | NUTR 20 52 | 20 | 52 | 25 | 24 | 27 | 1 | 0.3 | 31500 | 41000 | 4200 |
| NUTR 25 | 25 | 52 | 25 | 24 | 31 | 1 | 0.3 | 29000 | 37500 | 3400 | |
| 62 | NUTR 25 62 | 25 | 62 | 25 | 24 | 31 | 1 | 0.3 | 35500 | 50000 | 3400 |
| NUTR 30 | 30 | 62 | 29 | 28 | 38 | 1 | 0.3 | 40000 | 51000 | 2600 | |
| 72 | NUTR 30 72 | 30 | 72 | 29 | 28 | 38 | 1 | 0.3 | 48000 | 65000 | 2600 |
| NUTR 35 | 35 | 72 | 29 | 28 | 44 | 1.1 | 0.6 | 45000 | 61000 | 2100 | |
| 80 | NUTR 35 80 | 35 | 80 | 29 | 28 | 44 | 1.1 | 0.6 | 51000 | 72000 | 2100 |
| NUTR 40 | 40 | 80 | 32 | 30 | 51 | 1.1 | 0.6 | 56000 | 76000 | 1600 | |
| 85 | NUTR 45 | 45 | 85 | 32 | 30 | 55 | 1.1 | 0.6 | 56000 | 79000 | 1400 |
| 90 | NUTR 40 90 | 40 | 90 | 32 | 30 | 51 | 1.1 | 0.6 | 66000 | 96000 | 1600 |
| NUTR 50 | 50 | 90 | 32 | 30 | 60 | 1.1 | 0.6 | 57000 | 81000 | 1300 | |
| 100 | NUTR 45 100 | 45 | 100 | 32 | 30 | 55 | 1.1 | 0.6 | 72000 | 108000 | 1400 |
| 110 | NUTR 50 110 | 50 | 110 | 32 | 30 | 60 | 1.1 | 0.6 | 76000 | 121000 | 1300 |
