Yoke Type Cam Followers PWKR35-2R Full Complement Cylindrical Roller Set Axial Guidance

Yoke Type Cam Followers PWKR35-2R Full Complement Cylindrical Roller Set Axial Guidance
Yoke Type Cam Followers PWKR35-2R Full Complement Cylindrical Roller Set Axial Guidance Yoke Type Cam Followers PWKR35-2R Full Complement Cylindrical Roller Set Axial Guidance Yoke Type Cam Followers PWKR35-2R Full Complement Cylindrical Roller Set Axial Guidance Yoke Type Cam Followers PWKR35-2R Full Complement Cylindrical Roller Set Axial Guidance

Large Image :  Yoke Type Cam Followers PWKR35-2R Full Complement Cylindrical Roller Set Axial Guidance

Product Details:
Place of Origin: China
Brand Name: MOUETTE
Certification: ISO/TS 16949:2009, ISO 9001:2008
Model Number: PWKR35-2RS, PWKR40-2RS, PWKR47-2RS, PWKR52-2RS, PWKR62-2RS, PWKR72-2RS, PWKR80-2RS
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD2 per Piece
Packaging Details: Plastic bags, Cartons and European Standard Plywood Case.
Delivery Time: 3-45 working days.(Huge Quantity Stocks Available))
Payment Terms: L/C, T/T, D/A, Western Union, Paypal
Supply Ability: 500,000 Pieces per Month.
Contact Now

Yoke Type Cam Followers PWKR35-2R Full Complement Cylindrical Roller Set Axial Guidance

Description
Name: Yoke Type Track Roller Material: High-Alloy Bearing Quality Steel
System Of Measurement: Metric Cage: Without
Coating: Without( Neutral Bearing Steel Color) Outer Ring Profile: Crowned
Rolling Elements: Cylindrical Roller Bearing-Double Row Seal Type: Protected Lip Seal On Both Sides
High Light:

PWTR Yoke Type Cam Followers

,

double row roller follower bearing

,

hex hole roller follower bearing

Yoke Type Track Rollers PWKR35-2RS Full Complement Cylindrical Roller Set Axial guidance

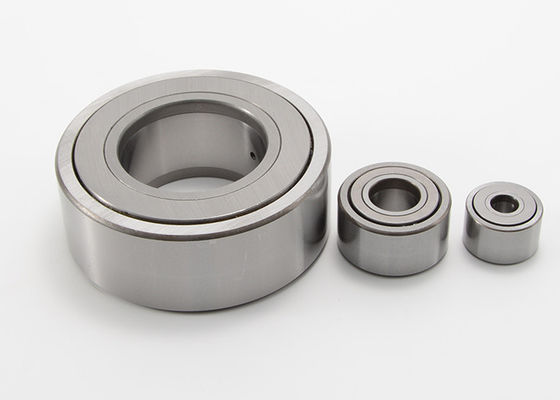

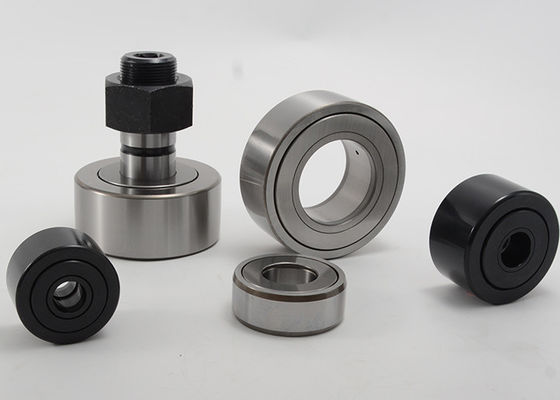

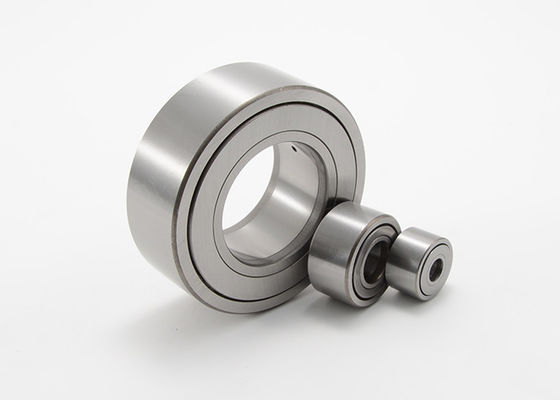

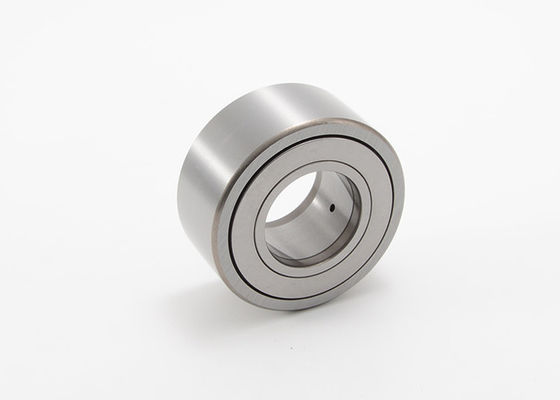

Yoke type roller bearing track rollers are ready-to-fit needle or cylindrical roller bearings of single or double row design.
They have particularly thick-walled outer rings with a crowned outside surface (also available with a cylindrical outside surface on request), can support high radial loads and tolerate axial loads which are due to small misalignments, skewed running or temporary contact running impacts.
Yoke type roller bearing track rollers are mounted on a shaft or stud. They are not mounted in a housing bore but supported on a flat raceway (mating track).
Yoke type roller bearing track rollers are available with or without an inner ring. They are produced with or without axial guidance of the outer ring.
Yoke type roller bearing track rollers are open or sealed on both sides.



Yoke type roller bearing track rollers Specifications:

Bearing Code Boundary Dimensions Basic Load Rating Limiting Speed Mass
d D B C d2 Dynamic Static 　 　
mm N rpm kg
PWTR15-2RS 15 35 19 18 20 11900 14600 6000 0.099
PWTR1542-2RS 15 42 19 18 20 13900 15200 6000 0.158
PWTR17-2RS 17 40 21 20 22 13600 17200 5000 0.147
PWTR1747-2RS 17 47 21 20 22 15100 17200 5000 0.22
PWTR20-2RS 20 47 25 24 27 23800 30500 3800 0.245
PWTR2052-2RS 20 52 25 24 27 26000 34000 3800 0.321
PWTR25-2RS 25 52 25 24 31 24600 33000 3800 0.281
PWTR2562-2RS 25 62 25 24 31 29000 40500 3800 0.45
PWTR30-2RS 30 62 29 28 38 34000 45500 2200 0.465
PWTR3072-2RS 30 72 29 28 38 40000 54000 2200 0.697
PWTR35-2RS 35 72 29 28 44 38000 54000 1800 0.63
PWTR3580-2RS 35 80 29 28 44 42500 64000 1800 0.836
PWTR40-2RS 40 80 32 30 50.5 43500 61000 1500 0.816
PWTR4090-2RS 40 90 32 30 50.5 51000 75000 1500 1.129
PWTR45-2RS 45 85 32 30 55.2 44500 63000 1300 0.883
PWTR45100-2RS 45 100 32 30 55.2 55000 85000 1300 1.396
PWTR50-2RS 50 90 32 30 59.8 44500 66000 1100 0.95
PWTR50110-2RS 50 110 32 30 59.8 58000 94000 1100 1.69



Yoke Type Cam Followers PWKR35-2R Full Complement Cylindrical Roller Set Axial Guidance 0



Yoke Type Cam Followers PWKR35-2R Full Complement Cylindrical Roller Set Axial Guidance 1



Yoke Type Cam Followers PWKR35-2R Full Complement Cylindrical Roller Set Axial Guidance 2



Yoke Type Cam Followers PWKR35-2R Full Complement Cylindrical Roller Set Axial Guidance 3
