Product Details:
|
| Name: | Support Rollers Yoke Type Track Rollers With Flange Rings | Material: | Bearing Steel |
|---|---|---|---|
| Bearing Part: | Complete Track Roller | Coating: | Without (Neutral Bearing Steel Color) |
| Cage: | Without | Outer Ring Profile: | Crowned |
| Number Of Flanges, Outer Ring: | 2 | Number Of Rows: | 1 |
| Rolling Elements: | Needle Rollers | Sealing: | Contact Seal On Both Sides |
| High Light: | NATV Yoke Type Cam Followers,Double Row Yoke Type Cam Followers,hex hole stud track roller bearing |
||

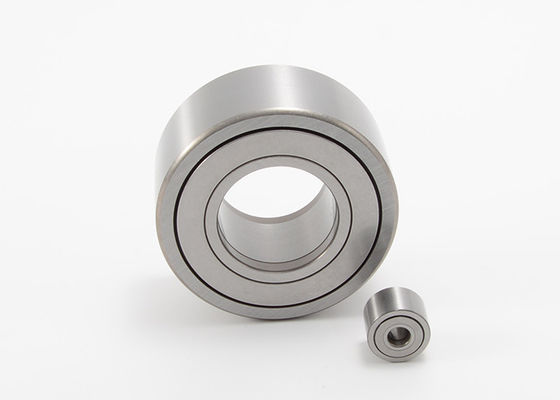

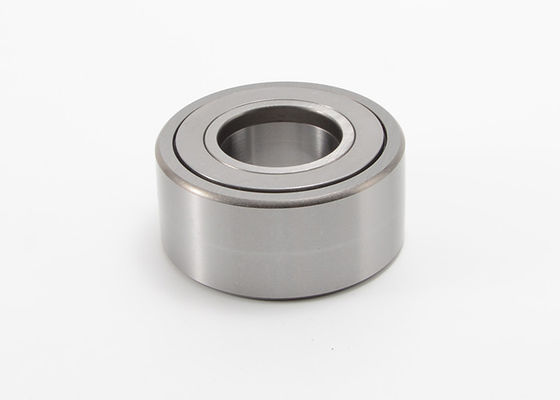

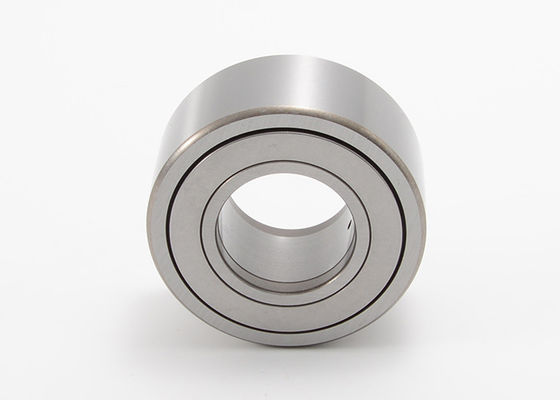

Support Rollers Yoke Type Track Rollers with Flange Rings NATV 10 PP NATV 15

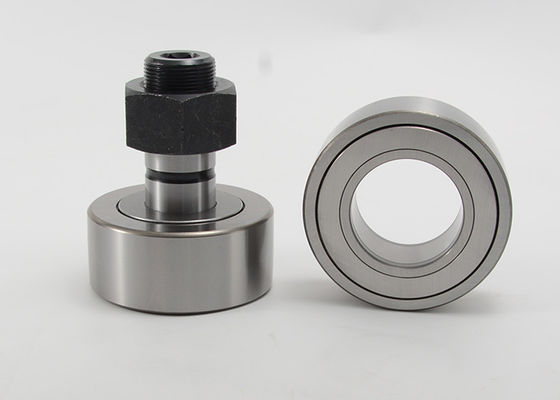

MOUETTE offer a complete line of cam followers and yoke type track rollers for industrial applications, including machine tools, industrial robots, electronic parts production, office automation equipment and harsh environments that require increased corrosion resistance. Cam followers and track rollers provide antifriction solutions for translating rotation to linear motion or supporting either pure radial or combination thrust loads depending on the rolling elements types.
Stainless steel cam followers intended harsh environments that require increased corrosion resistance. Excellent choice for outdoor use or for applications such as food production facilities that require frequent wash-down and cleaning.
Our cam followers and Yoke Type Track Rollers are available in bearing steel and stainless steel. cam followers and yoke type track rollers in Bearings Steel are standard, have lots of stocks. Stainless steel would be customized if you need.
Support rollers yoke type track rollers with flange rings with sealed or without sealed specifications:
|
Shaft Diameter |
Yoke Type Cam Followers Code | Boundary Dimensions | Basic Load Rating | Limiting Speed | |||||||
| Without Seal | Sealed | d | D | B | C | d1 | rs | Dynamic | Static | ||
| mm | mm | min | N | rpm | |||||||
| 16 | NATV 5 | NATV 5 PP | 5 | 16 | 12 | 11 | 12 | 0.15 | 4850 | 6500 | 8500 |
| 19 | NATV 6 | NATV 6 PP | 6 | 19 | 12 | 11 | 14 | 0.15 | 5500 | 7900 | 7000 |
| 24 | NATV 8 | NATV 8 PP | 8 | 24 | 15 | 14 | 19 | 0.3 | 7800 | 11400 | 5500 |
| 30 | NATV 10 | NATV 10 PP | 10 | 30 | 15 | 14 | 23 | 0.6 | 9500 | 14600 | 4500 |
| 32 | NATV 12 | NATV 12 PP | 12 | 32 | 15 | 14 | 25 | 0.6 | 9700 | 15400 | 3900 |
| 35 | NATV 15 | NATV 15 PP | 15 | 35 | 19 | 18 | 27 | 0.6 | 12800 | 23000 | 3400 |
| 40 | NATV 17 | NATV 17 PP | 17 | 40 | 21 | 20 | 32 | 1 | 14800 | 26500 | 2900 |
| 47 | NATV 20 | NATV 20 PP | 20 | 47 | 25 | 24 | 37 | 1 | 20600 | 42000 | 2600 |
| 52 | NATV 25 | NATV 25 PP | 25 | 52 | 25 | 24 | 42 | 1 | 20500 | 44000 | 2100 |
| 62 | NATV 30 | NATV 30 PP | 30 | 62 | 29 | 28 | 51 | 1 | 30500 | 63000 | 1700 |
| 72 | NATV 35 | NATV 35 PP | 35 | 72 | 29 | 28 | 58 | 1.1 | 33000 | 73000 | 1400 |
| 80 | NATV 40 | NATV 40 PP | 40 | 80 | 32 | 30 | 66 | 1.1 | 41000 | 90000 | 1300 |
| 90 | NATR 50 | NATV 50 PP | 50 | 90 | 32 | 30 | 76 | 1.1 | 40500 | 93000 | 1000 |
