Product Details:
|
Name: | Separable Roller Followers Bearings | Material: | Bearing Steel |
---|---|---|---|
Roller Surface Profile: | Both Crowned And Cylindrical Outer Ring Are Available | Surface Finish: | No Treatment (Neutral Bearing Steel Color) |
Size Range: | Metric Series | Separable Or Non-separable Styles: | Separable |
Rolling Elements: | Needle Bearing | Other Features: | Caged | Separable | With Inner Ring |
Seal Type: | Shield Type | Sealed Type | Keyword String: | Cam Follower |
High Light: | NAST yoke type cam follower,double row yoke type cam follower,hex hole spherical follower |

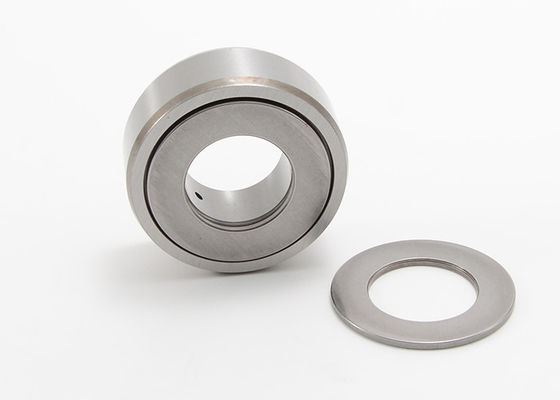

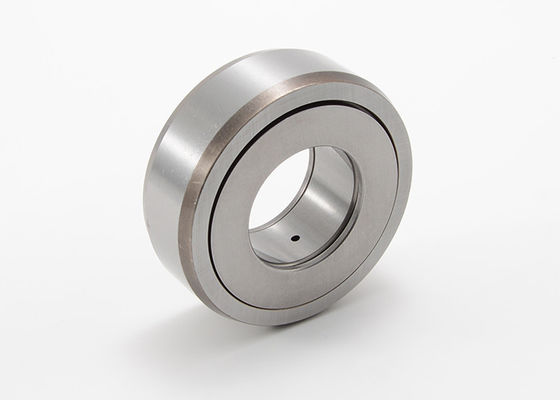

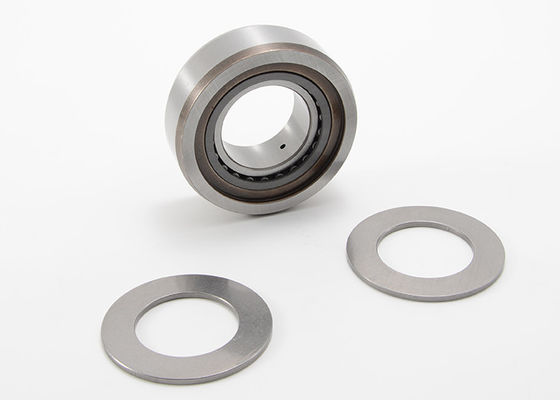

Separable Roller Followers Bearings With Cage NAST 8 NAST 8 ZZR NAST 8 ZZ
MOUETTE manufacturers a variety of durable roller followers that feature needle rollers embedded in a thick outer ring, specifically designed for smooth outer ring rotation. Crowned and cylindrical outer ring styles meet a diverse range of application needs. Outer rings run directly on mating track surfaces.
Other features include:
Separable and Non-separable

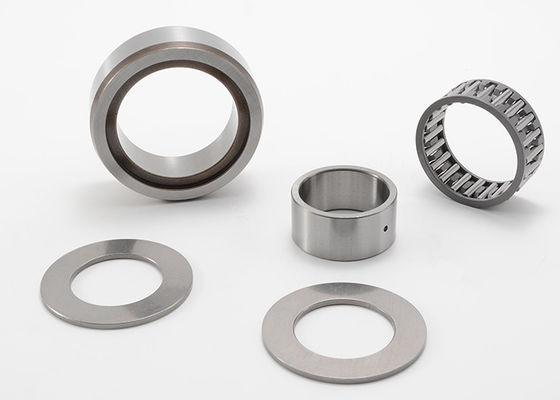

NAST Series are separable roller follower bearings. They combine an outer ring, inner ring and needle cage for excellent high-speed performance. Each part is separable and styles are available with or without inner rings. Inner ring inner diameters (IDs) range from 7 to 60 mm.
Three Structures
Three structures meet a wide range of application needs and include open, shield and sealed versions.
Separable Roller Followers With Cage and With Inner Ring Specifications:
Shaft Diameter |
Bearing Code | Boundary Dimensions | Basic Load Rating | Limiting Speed | Mass | |||||
d | D | B | C | Dynamic | Static | Oil | ||||
mm | mm | N | rpm | g | ||||||
6 | NAST 6 | 6 | 19 | 10 | 9.8 | 5200 | 4900 | 18000 | 17.8 | |
NAST 6 ZZR | 6 | 19 | 14 | 13.8 | 5200 | 4900 | 18000 | 24 | ||
NAST 6 ZZ | 6 | 19 | 14 | 13.8 | 5200 | 4900 | 18000 | 24 | ||
8 | NAST 8 | 8 | 24 | 10 | 9.8 | 5600 | 7650 | 16000 | 28 | |
NAST 8 ZZR | 8 | 24 | 14 | 13.8 | 5600 | 7650 | 16000 | 40 | ||
NAST 8 ZZ | 8 | 24 | 14 | 13.8 | 5600 | 7650 | 16000 | 40 | ||
10 | NAST 10 | 10 | 30 | 16 | 15.8 | 10000 | 10800 | 12000 | 49.5 | |
NAST 10 ZZR | 10 | 30 | 16 | 15.8 | 10000 | 10800 | 12000 | 65 | ||
NAST 10 ZZ | 10 | 30 | 16 | 15.8 | 10000 | 10800 | 12000 | 65 | ||
NAST 10X28X12 | 10 | 28 | 12 | 11.8 | 10000 | 10800 | 12000 | 65 | ||
12 | NAST 12 | 12 | 32 | 12 | 11.8 | 10600 | 12000 | 10000 | 58 | |
NAST 12 ZZR | 12 | 32 | 16 | 15.8 | 10600 | 12000 | 10000 | 75 | ||
NAST 12 ZZ | 12 | 32 | 16 | 15.8 | 10600 | 12000 | 10000 | 75 | ||
15 | NAST 15 ZZR | 15 | 35 | 16 | 15.8 | 12500 | 15600 | 7000 | 83 | |
NAST 15 ZZ | 15 | 35 | 16 | 15.8 | 12500 | 15600 | 7000 | 83 | ||
17 | NAST 17 | 17 | 40 | 20 | 19.8 | 18300 | 23600 | 6300 | 135 | |
NAST 17 ZZ | 17 | 40 | 20 | 19.8 | 18300 | 23600 | 6300 | 135 | ||
20 | NAST 20 ZZR | 20 | 47 | 20 | 19.8 | 19000 | 26000 | 5300 | 195 | |
NAST 20 ZZ | 20 | 47 | 20 | 19.8 | 19000 | 26000 | 5300 | 195 | ||
25 | NAST 25 ZZ | 25 | 52 | 20 | 19.8 | 21200 | 31500 | 4300 | 225 | |
NAST 25 ZZR | 25 | 52 | 20 | 19.8 | 21200 | 31500 | 4300 | 225 | ||
30 | NAST 30 ZZR | 30 | 62 | 25 | 24.8 | 31500 | 52000 | 3000 | 400 | |
NAST 30 ZZ | 30 | 62 | 25 | 24.8 | 31500 | 52000 | 3000 | 400 | ||
35 | NAST 35 ZZR | 35 | 72 | 25 | 24.8 | 32000 | 54000 | 2400 | 550 | |
NAST 35 ZZ | 35 | 72 | 25 | 24.8 | 32000 | 54000 | 2400 | 550 | ||
40 | NAST 40 ZZ | 40 | 80 | 26 | 25.8 | 36500 | 68000 | 1800 | 710 | |
45 | NAST 45 ZZR | 45 | 85 | 26 | 25.8 | 38000 | 75000 | 1600 | 760 | |
NAST 45 ZZ | 45 | 85 | 26 | 25.8 | 38000 | 75000 | 1600 | 760 | ||
50 | NAST 50 ZZ | 50 | 90 | 26 | 25.8 | 39500 | 87000 | 1400 | 830 |
In Roller Followers, types shown in Table 1 are available.
Table 1 Type of Roller Followers:
Some examples of the identification number of Roller Followers are shown below:
