Support Roller Yoke Type Track Roller Without Flange Rings and Inner Ring RSTO 6 TN

Large Image : Support Roller Yoke Type Track Roller Without Flange Rings and Inner Ring RSTO 6 TN

Product Details:

Place of Origin:	China
Brand Name:	MOUETTE
Certification:	ISO/TS 16949:2009, ISO 9001:2008
Model Number:	RSTO 6 TN, RSTO12, RSTO 25 X - Yoke type track roller

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	USD1 per Piece
Packaging Details:	Plastic bags, Cartons and European Standard Plywood Case.
Delivery Time:	3-45 working days.(Huge Quantity Stocks Available))
Payment Terms:	L/C, T/T, D/A, Western Union, Paypal
Supply Ability:	500,000 Pieces per Month.

Contact Now

Support Roller Yoke Type Track Roller Without Flange Rings and Inner Ring RSTO 6 TN

Description

Name:	Support Roller Yoke Type Track Roller Without Flange Rings And Inner Ring	Material:	High-Alloy Bearing Quality Steel(Stainless Steel Is Customized)
Surface Finish:	Without Coating( Neutral Bearing Steel Color )	Size Range:	Metric Series
Rolling Element:	Needle Bearing	Number Of Rows:	1
Outer Ring Profile:	Crowned	Relubrication Feature:	Without
Sealing:	Without	Other Features:	Caged \| Without Inner Ring
High Light:	hex socket mcgill cam yoke roller , stud type mcgill cam yoke roller , double row metric cam followers

Support Roller Yoke Type Track Roller Without Flange Rings and Inner Ring RSTO 6 TN

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc.

We offer a complete line of yoke type cam followers for industrial applications. These bearings are available in steel, stainless steel, and with engineered plastic internal bushings.

Yoke and stud type roller bearing track rollers:

· are ready-to-fit needle or cylindrical roller bearings of single or double row design

· are mounted on shafts or studs (yoke type track rollers) or supplied with a heavy-section roller stud with fixing thread and a mounting aid (stud type track rollers)

· have particularly thick-walled outer rings with a crowned outside surface

· can support high radial loads

· tolerate axial loads which are due to small misalignment defects, skewed running or temporary contact running impacts

· are available with or without an inner ring (yoke type track rollers)

· are produced with or without axial guidance of the outer ring (stud type track rollers are always produced with axial guidance)

· are open or sealed on both sides

· are not mounted in a housing bore, but are supported on a flat mating track

· can be adjusted to the mating track in the design with the eccentric collar, thus permitting, for example, larger manufacturing tolerances in the adjacent construction

Yoke type roller bearing track rollers stud type roller bearing track rollers Specifications:

Shaft Diameter	Bearing Code	Boundary Dimensions			Basic Load Rating		Limiting Speed	Mass
Shaft Diameter		Fw	D	C	Dynamic	Static	Oil
mm		mm			N		rpm	g
16	RSTO 5 X	7	16	7.8	2800	2600	23000	8.5
	RSTO 5 TN	7	16	7.8	2800	2600	23000	8.5
	RSTO 5 X TN	7	16	7.8	2800	2600	23000	8.5
19	RSTO 6	10	19	9.8	5200	6550	18000	12.5
	RSTO 6 TN	10	19	10	5200	6550	18000	12.5
	RSTO 6 X TN	10	19	10	5200	6550	18000	12.5
24	RSTO 8	12	24	9.8	5600	7650	16000	21
	RSTO 8 X	12	24	9.8	5600	7650	16000	21
	RSTO 8 TN	12	24	10	5600	7650	16000	21
30	RSTO 10	14	30	11.8	10000	10800	12000	44
30	RSTO 10 X	14	30	11.8	10000	10800	12000	44
32	RSTO 12	16	32	11.8	10600	12000	10000	49
32	RSTO 12 X	16	32	11.8	10600	12000	10000	49
35	RSTO 15	20	35	11.8	12500	15600	7000	52
35	RSTO 15 X	20	35	11.8	12500	15600	7000	52
40	RSTO 17	22	40	15.8	18300	23600	6300	95
40	RSTO 17 X	22	40	15.8	18300	23600	6300	95
47	RSTO 20	25	47	15.8	19000	26000	5300	134
	RSTO 20 X	25	47	15.8	19000	26000	5300	134
	RSTO 25	25	47	15.8	19000	26000	5300	155
	RSTO 25 X	25	47	15.8	19000	26000	5300	155
62	RSTO 30	38	62	19.8	31500	52000	3000	258
	RSTO 30 X	38	62	19.8	31500	52000	3000	258
	RSTO 35	38	62	19.8	31500	52000	3000	370
	RSTO 35 X	38	62	19.8	31500	52000	3000	370
80	RSTO 40	50	80	19.8	36500	68000	1800	430
80	RSTO 40 X	50	80	19.8	36500	68000	1800	430
85	RSTO 45	55	85	19.8	38000	75000	1600	447
85	RSTO 45 X	55	85	19.8	38000	75000	1600	447
90	RSTO 50	60	90	19.8	40000	80000	1500	495
90	RSTO 50 X	60	90	19.8	40000	80000	1500	495

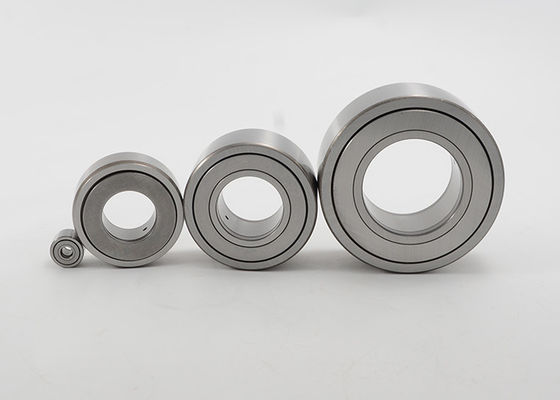

Support Roller Yoke Type Track Roller Without Flange Rings and Inner Ring RSTO 6 TN 0

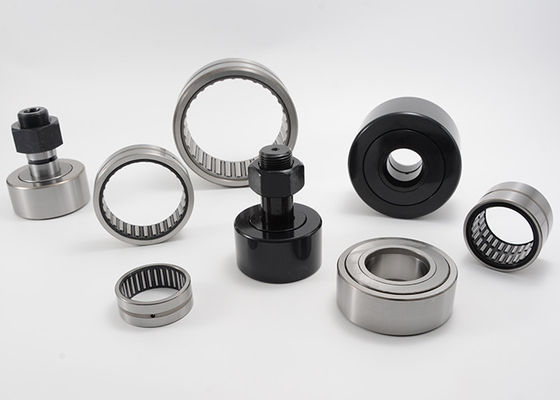

Support Roller Yoke Type Track Roller Without Flange Rings and Inner Ring RSTO 6 TN 1

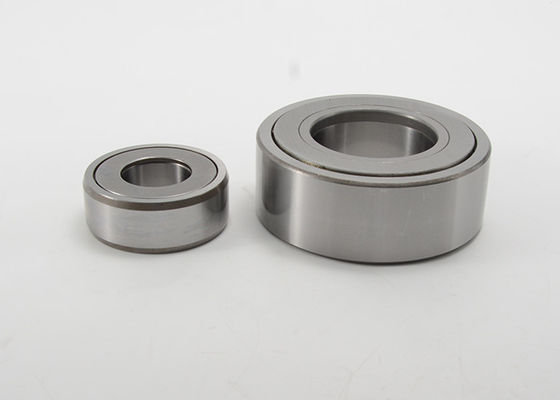

Support Roller Yoke Type Track Roller Without Flange Rings and Inner Ring RSTO 6 TN 2

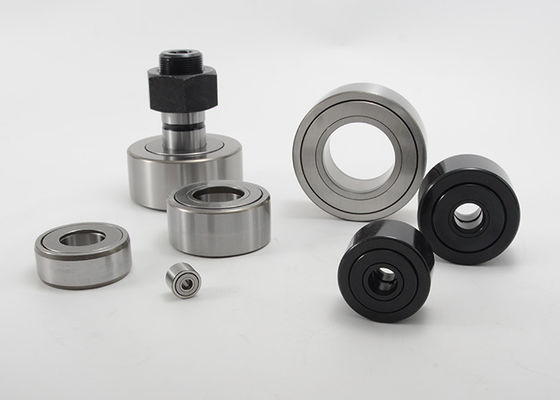

Support Roller Yoke Type Track Roller Without Flange Rings and Inner Ring RSTO 6 TN 3
