Product Details:
|
| Name: | Cam Follower Yoke Type | Type: | Cam Followers Yoke Type |
|---|---|---|---|
| O.D. Configuration:: | Cylindrical | Material: | High-Alloy Bearing Quality Steel |
| Rolling Elements: | Needle Roller - Full Complement | Surface Finish: | Black Oxide Finish |
| Inch - Metric: | Inch | Seal Type: | Sealed/Unsealed/ Customized |
| High Light: | sealed Yoke Type Cam Followers,black oxide cylindrical cam follower,CYR 3 S Yoke Type Cam Followers |
||

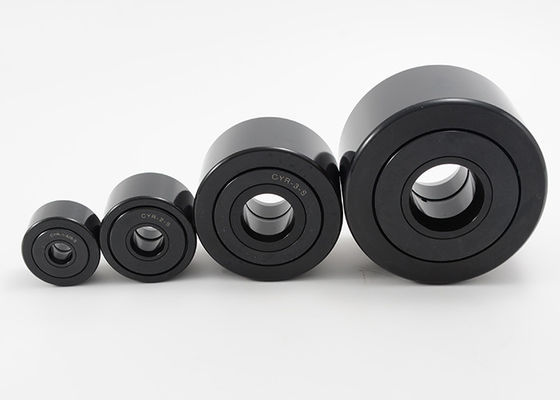

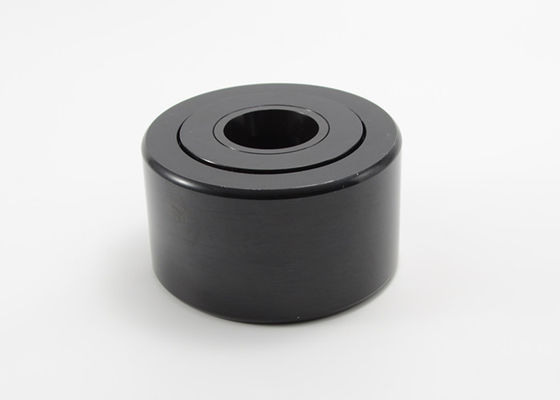

Cam Follower Bearings Yoke Type Sealed Bearing Steel CYR 3/4 S CYR-3-S
Cylindrical Inch Cam Follower Yoke Type Sealed Bearing Steel CYR 3/4 S CYR-3-S
We offer a complete line of yoke type cam followers for industrial applications. These bearings are available in steel, stainless steel. We specialize in engineered cam followers to fit specific applications.
Cam Followers Yoke Type Specifications:
CYR, CYR-S, CCYR-S SERIES
| Unsealed | Sealed | Sealed | Roller Dia.(RD) | Roller Width (W) | Bore (B) | Width Over End Plates (W1) | Dia. Of End Plates (E) | Oil Hole (H) Dia. | Basic Load Rating | |
| Max. Sta. LBS. | Max. Dyn. LBS. | |||||||||
| CYR-3/4 | CYR-3/4-S | CCYR-3/4-S | .750 | .500 | .250 | .5625 | 39/64 | 3/32 | 4130 | 1660 |
| CYR-7/8 | CYR-7/8-S | CCYR-7/8-S | .875 | .500 | .250 | .5625 | 39/64 | 4130 | 1660 | |
| CYR-1 | CYR-1-S | CCYR-1-S | 1.000 | .625 | .3125 | .6875 | 25/32 | 6120 | 2225 | |
| CYR-1 1/8 | CYR-1 1/8-S | CCYR-1 1/8-S | 1.125 | .625 | .3125 | .6875 | 25/32 | 6120 | 2225 | |
| CYR-1 1/4 | CYR-1 1/4-S | CCYR-1 1/4-S | 1.250 | .750 | .375 | .8125 | 63/64 | 8500 | 3930 | |
| CYR-1 3/8 | CYR-1 3/8-S | CCYR-1 3/8-S | 1.375 | .750 | .375 | .8125 | 63/64 | 8500 | 3930 | |
| CYR-1 1/2 | CYR-1 1/2-S | CCYR-1 1/2-S | 1.500 | .875 | .4375 | .9375 | 1 3/32 | 11280 | 4840 | |
| CYR-1 5/8 | CYR-1 5/8-S | CCYR-1 5/8-S | 1.625 | .875 | .4375 | .9375 | 1 3/32 | 11280 | 4840 | |
| CYR-1 3/4 | CYR-1 3/4-S | CCYR-1 3/4-S | 1.750 | 1.000 | .500 | 1.0625 | 1 1/4 | 15840 | 6385 | |
| CYR-1 7/8 | CYR-1 7/8-S | CCYR-1 7/8-S | 1.875 | 1.000 | .500 | 1.0625 | 1 1/4 | 15840 | 6385 | |
| CYR-2 | CYR-2-S | CCYR-2-S | 2.000 | 1.250 | .625 | 1.3125 | 1 13/32 | 21140 | 8090 | |
| CYR-2 1/4 | CYR-2 1/4-S | CCYR-2 1/4-S | 2.250 | 1.250 | .625 | 1.3125 | 1 13/32 | 21140 | 8090 | |
| CYR-2 1/2 | CYR-2 1/2-S | CCYR-2 1/2-S | 2.500 | 1.500 | .750 | 1.5625 | 1 11/16 | 1/8 | 32900 | 11720 |
| CYR-2 3/4 | CYR-2 3/4-S | CCYR-2 3/4-S | 2.750 | 1.500 | .750 | 1.5625 | 1 11/16 | 32900 | 11720 | |
| CYR-3 | CYR-3-S | CCYR-3-S | 3.000 | 1.750 | 1.000 | 1.8125 | 2 1/8 | 49820 | 15720 | |
| CYR-3 1/4 | CYR-3 1/4-S | CCYR-3 1/4-S | 3.250 | 1.750 | 1.000 | 1.8125 | 2 1/8 | 49820 | 15720 | |
| CYR-3 1/2 | CYR-3 1/2-S | CCYR-3 1/2-S | 3.500 | 2.000 | 1.125 | 2.0625 | 2 7/16 | 63250 | 22800 | |
| CYR-4 | CYR-4-S | CCYR-4-S | 4.000 | 2.250 | 1.250 | 2.3125 | 2 51/64 | 8540 | 29985 | |
| CYR-5-S | CCYR-5-S | 5.000 | 2.750 | 1.750 | 2.8750 | 3 9/16 | 3/16 | 135900 | 46575 | |
| CYR-6-S | CCYR-6-S | 6.000 | 3.250 | 2.250 | 3.3750 | 4 15/32 | 3/16 | 160900 | 60000 | |
| CYR-7-S | CCYR-7-S | 7.000 | 3.750 | 2.750 | 3.8750 | 5 3/16 | 3/16 | 213860 | 75380 | |
| CYR-8-S | CCYR-8-S | 8.000 | 4.250 | 3.255 | 4.5000 | 4 3/8 | 1/4 | 288200 | 92200 | |
| CYR-9-S | CCYR-9-S | 9.000 | 4.750 | 3.755 | 5.0000 | 5 1/16 | 5/16 | 366850 | 113260 | |
| CYR-10-S | CCYR-10-S | 10.000 | 5.250 | 4.255 | 5.5000 | 5 15/32 | 3/8 | 431130 | 131545 | |
